[Features]
◎Pure Class A operation, 100W/8Ω high quality power
◎Two completely identical power amplifier units are driven in parallel.
◎Output stage has 20 "power MOSFET" parallel push-pull configuration, achieving linear high power down to ultra-low impedance of 1Ω
◎The input section uses a double-configuration instrumentation amplifier system.
◎Equipped with "Double MCS+ circuit" and "Current feedback amplification circuit" in the amplifier section

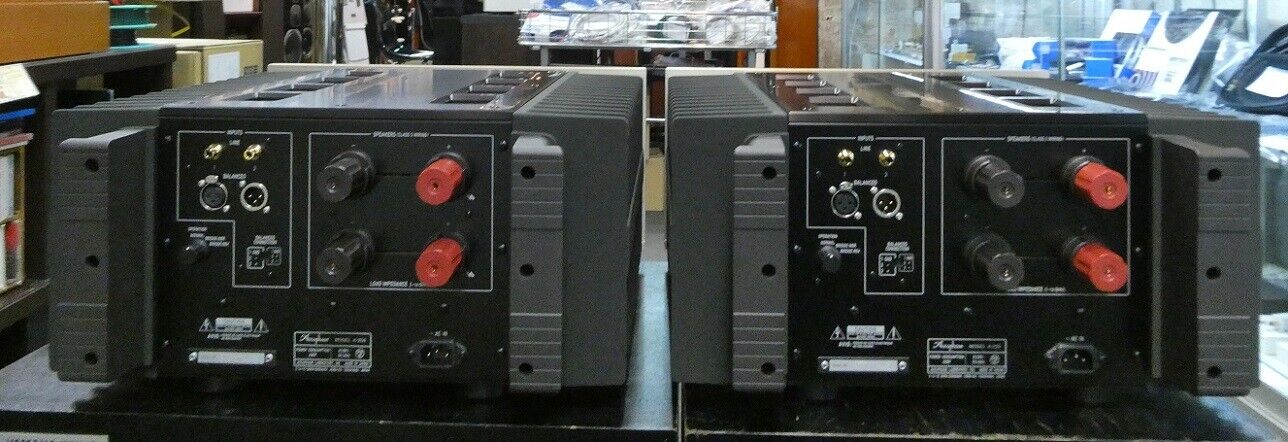

◎The output can be further increased by connecting two A-250s in a bridge.
◎Powerful power supply section with highly efficient large toroidal transformer and large capacity filter capacitor
【specification】
●Rated continuous average output (20Hz to 20kHz): Normal use 800W (1Ω, limited to music signals), 400W (2Ω), 200W (4Ω), 100W (8Ω, 100W in pure class A output area)
●Total harmonic distortion rate: 0.05% (2Ω), 0.03% (4-16Ω)
●Frequency characteristics: 20Hz to 20kHz (+0 -0.2dB)

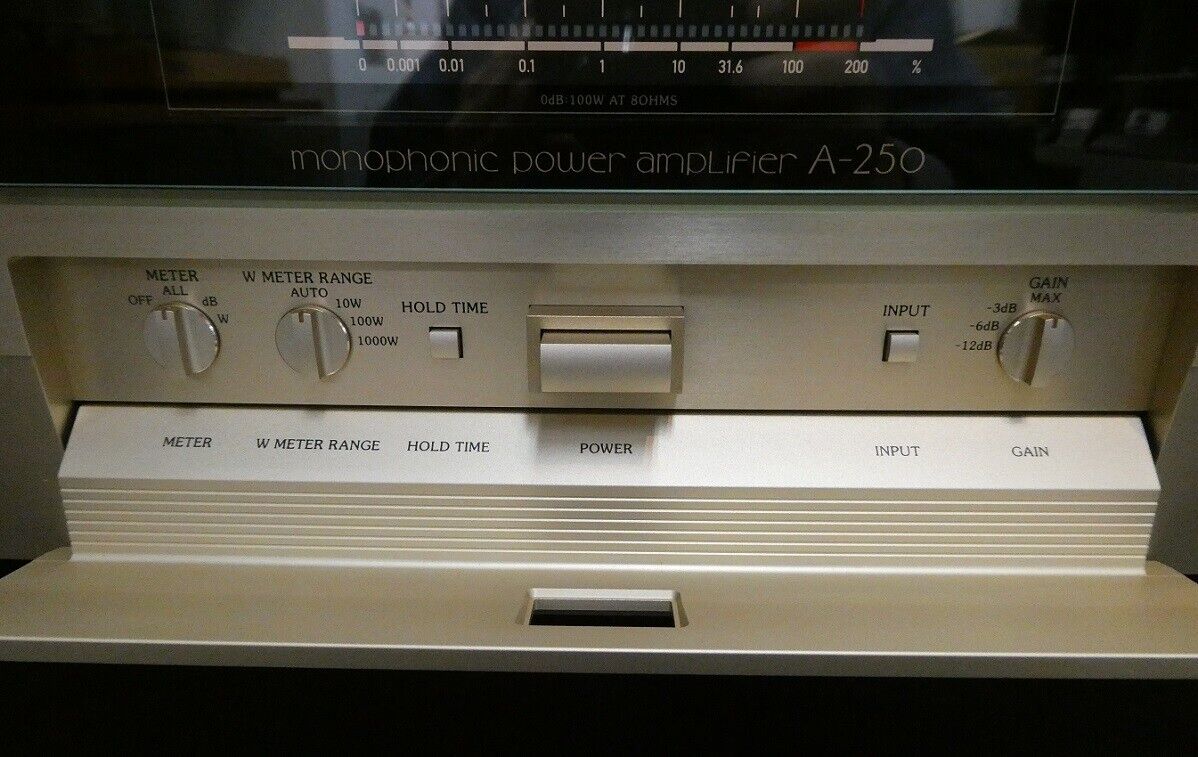

●Gain (gain): 28.0dB (GAIN switch: at MAX)

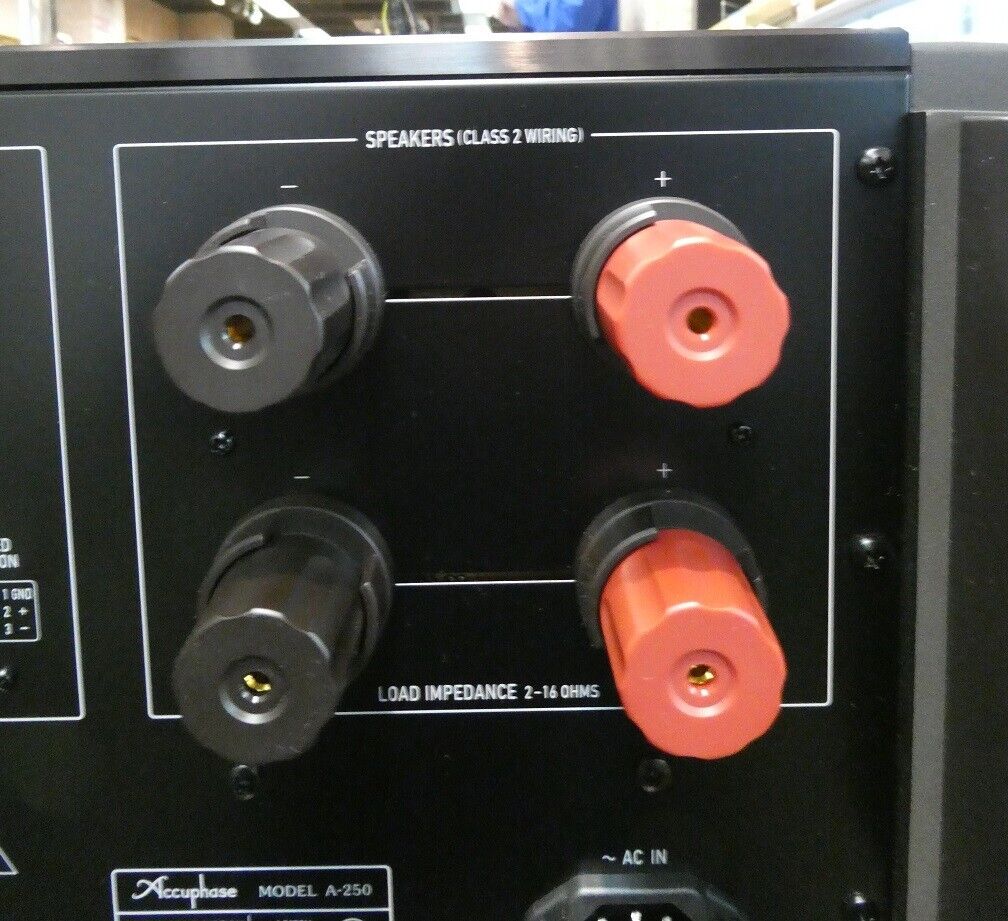

●Load impedance: 2 to 16Ω (at continuous output specification)
●Damping factor: 1,000
●Input sensitivity (8Ω load): 1.13V (at rated continuous average output)

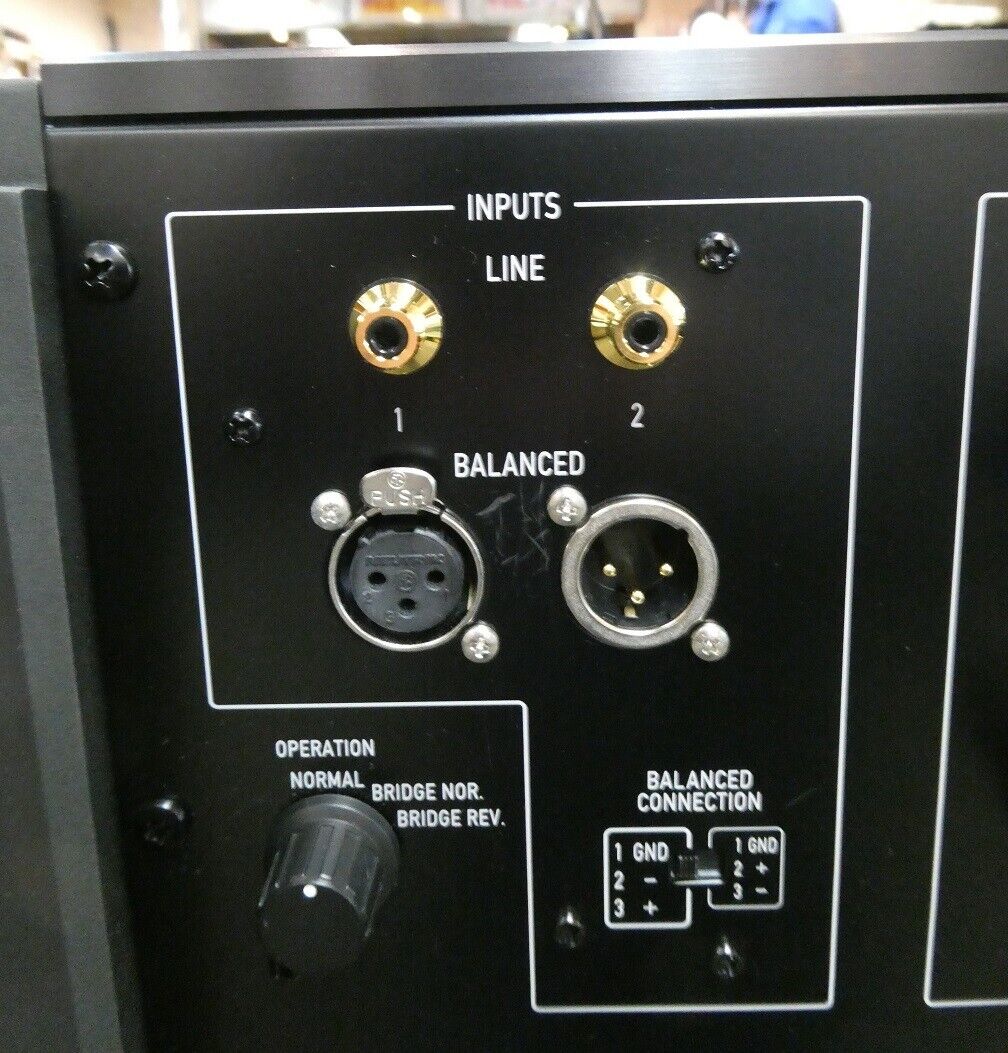

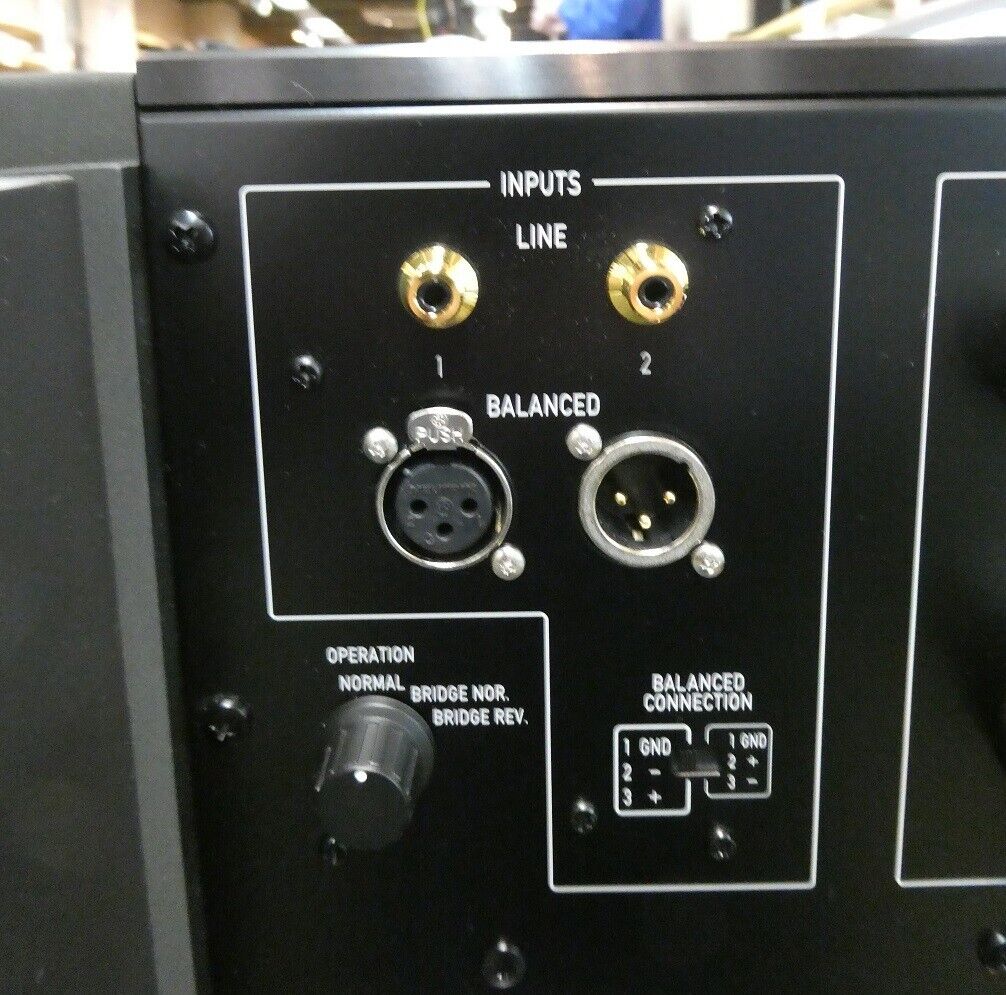

●Input impedance: Balanced 40kΩ, line 20kΩ
●SN ratio: (A correction, input short): 127dB

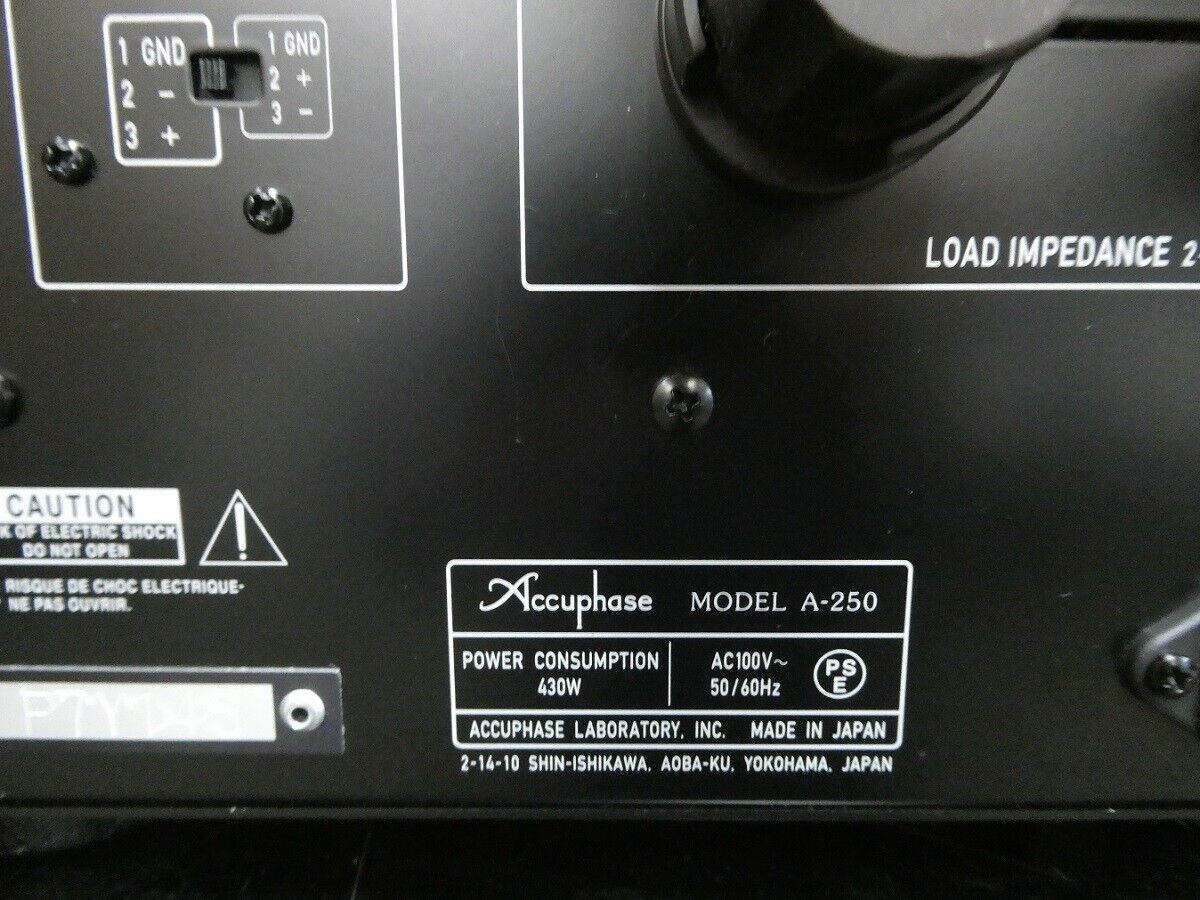

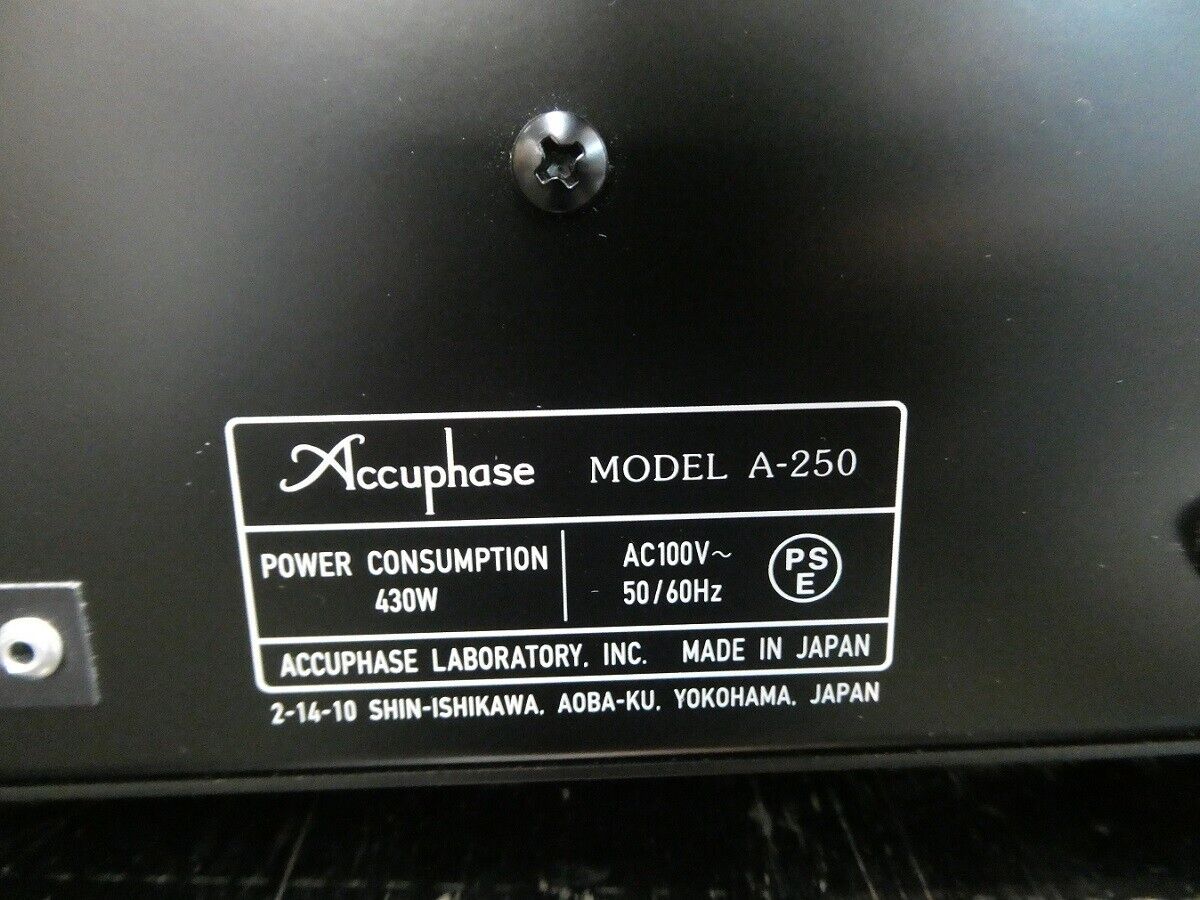

●Power consumption: 300W (at no input), 430W (Electrical Appliance and Material Safety Law), 340W (at 8Ω load rated output)

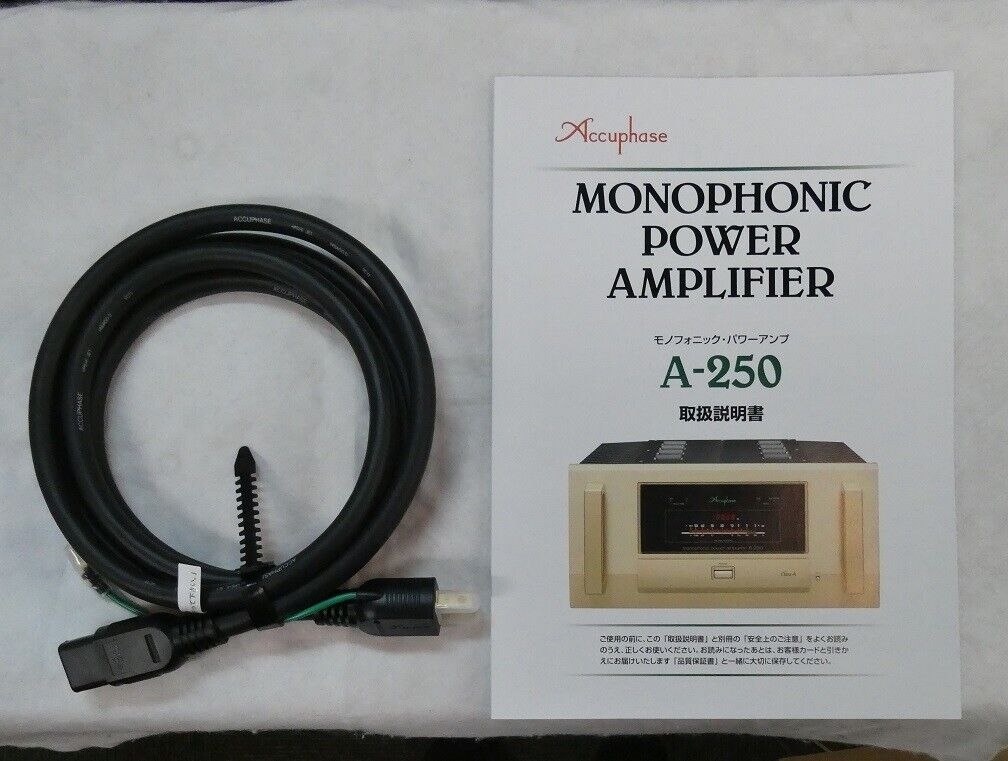

●Accessories: Instruction manual, power cable
●Size: 465W×238H×514Dmm
●Mass: 46.0kg
