The entire amplifier is constructed using the latest instrumentation amplifier technology.
This technology uses a fully balanced signal path from the input terminal to the power amplifier stage, which not only provides excellent characteristics such as CMRR (Common Mode Rejection Ratio) and distortion, but also makes the amplifier more resistant to changes in the surrounding environment such as external noise, improving its stability and reliability as a power amplifier.
Rated continuous average output power (20Hz to 20kHz) Stereo mode (both channels operating)
360W+360W (1Ω load, music signal only)
180W+180W (2Ω load)
90W+90W (4Ω load)
45W+45W (8Ω load)
Monaural mode (bridge connection)
720W (2Ω load, music signal only)
360W (4Ω load)
180W (8Ω load)
Total harmonic distortion Stereo mode (both channels operating)
0.05% (2Ω load)
0.03% (4Ω to 16Ω load)
Monaural mode (bridge connection)
0.05% (4Ω to 16Ω load)
IM distortion 0.004%
Frequency response 20Hz to 20kHz +0 -0.2dB (rated continuous average Output)
0.5Hz to 160kHz +0 -3.0dB (1W output)
Gain 28.0dB (Gain switch: max)
Stereo/mono
Gain switch Max, -3dB, -6dB, -12dB

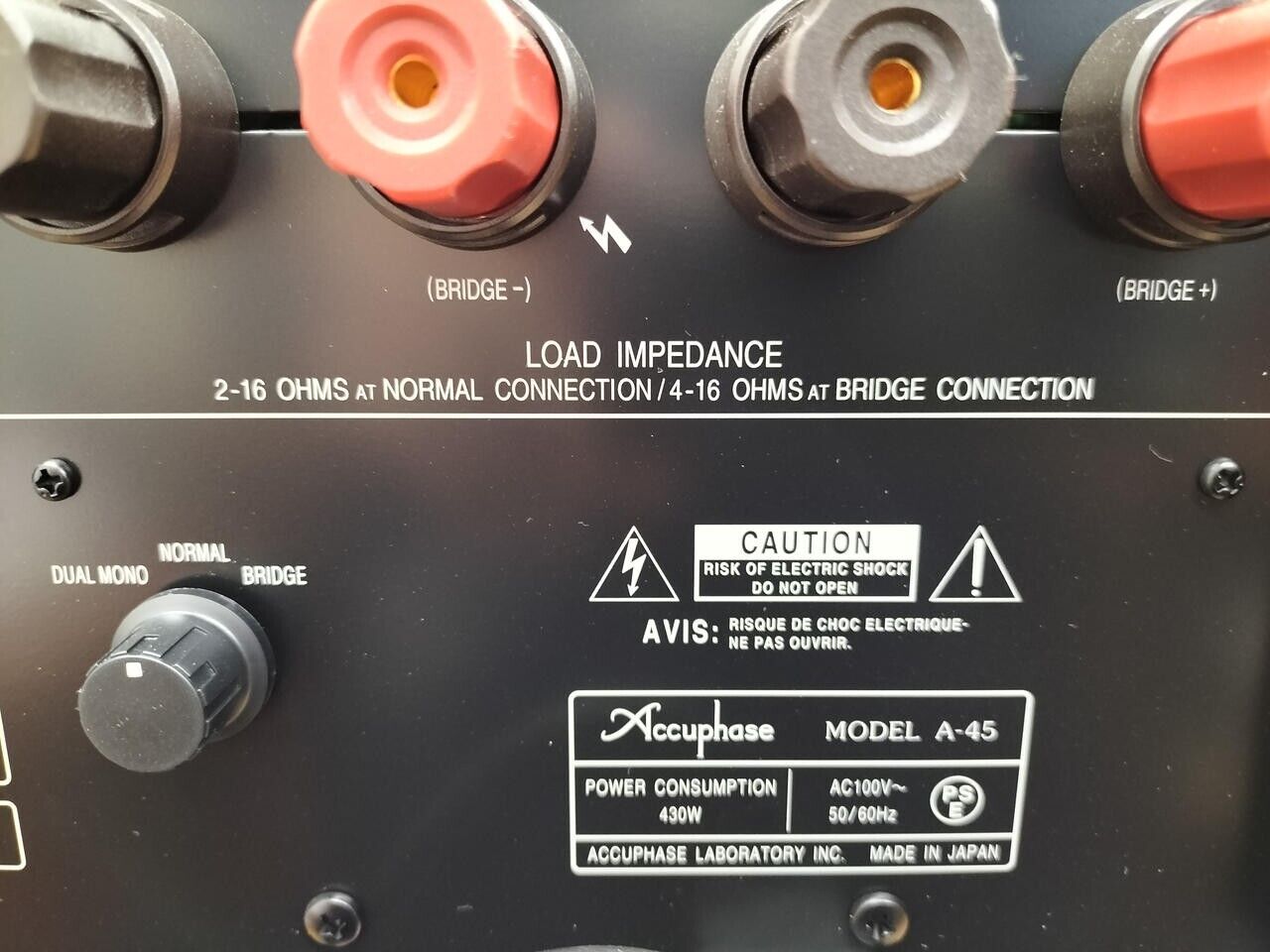

Load impedance Stereo: 2Ω to 16Ω
Mono: 4Ω to 16Ω
*1Ω stereo and 2Ω mono loads possible for music signals only
Damping factor 200
Input sensitivity (8Ω load, Gain switch: max) Stereo
0.76V (rated continuous average output)
Mono
1.51V (rated continuous average output)
0.11V (1W output)

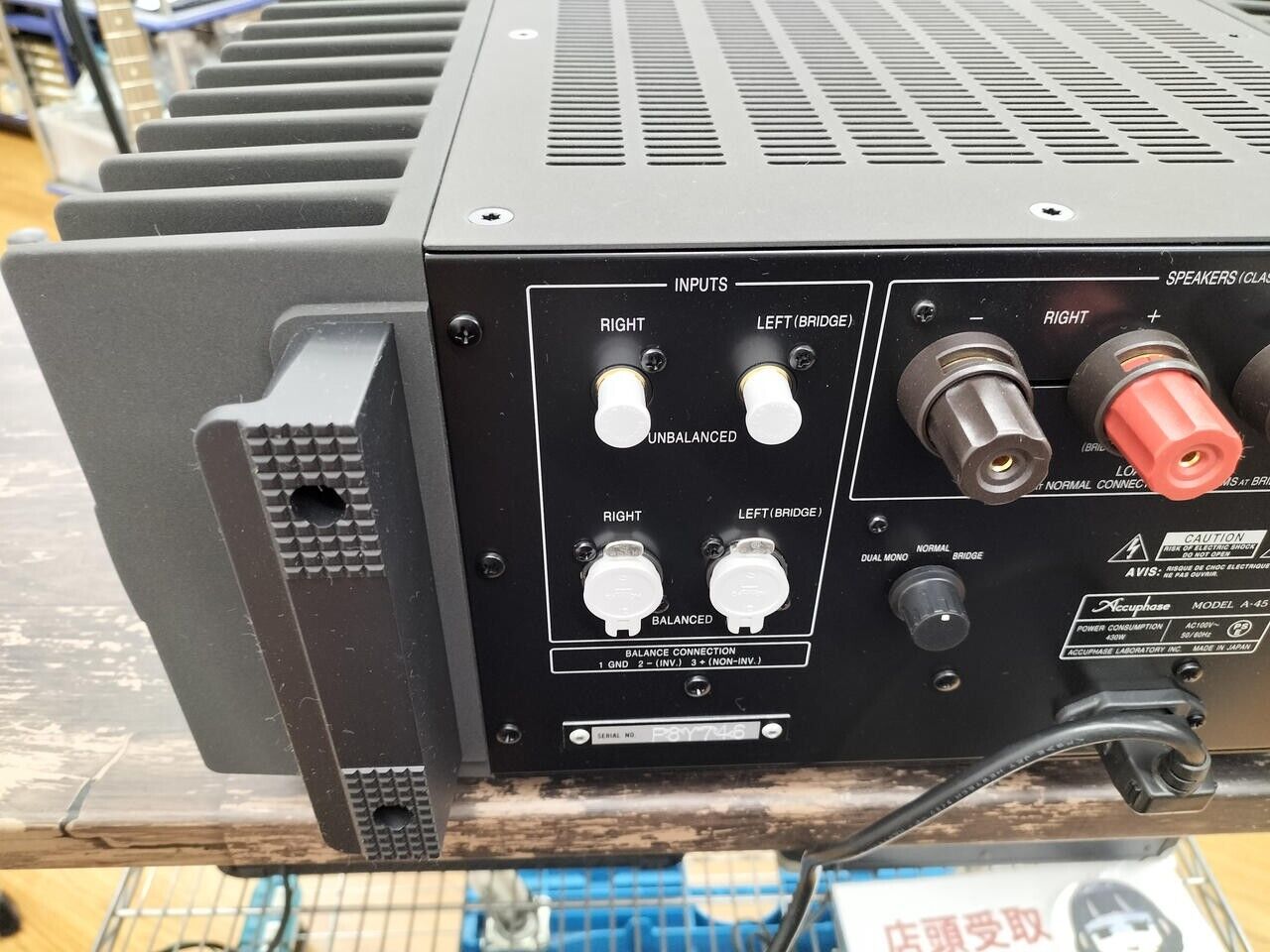

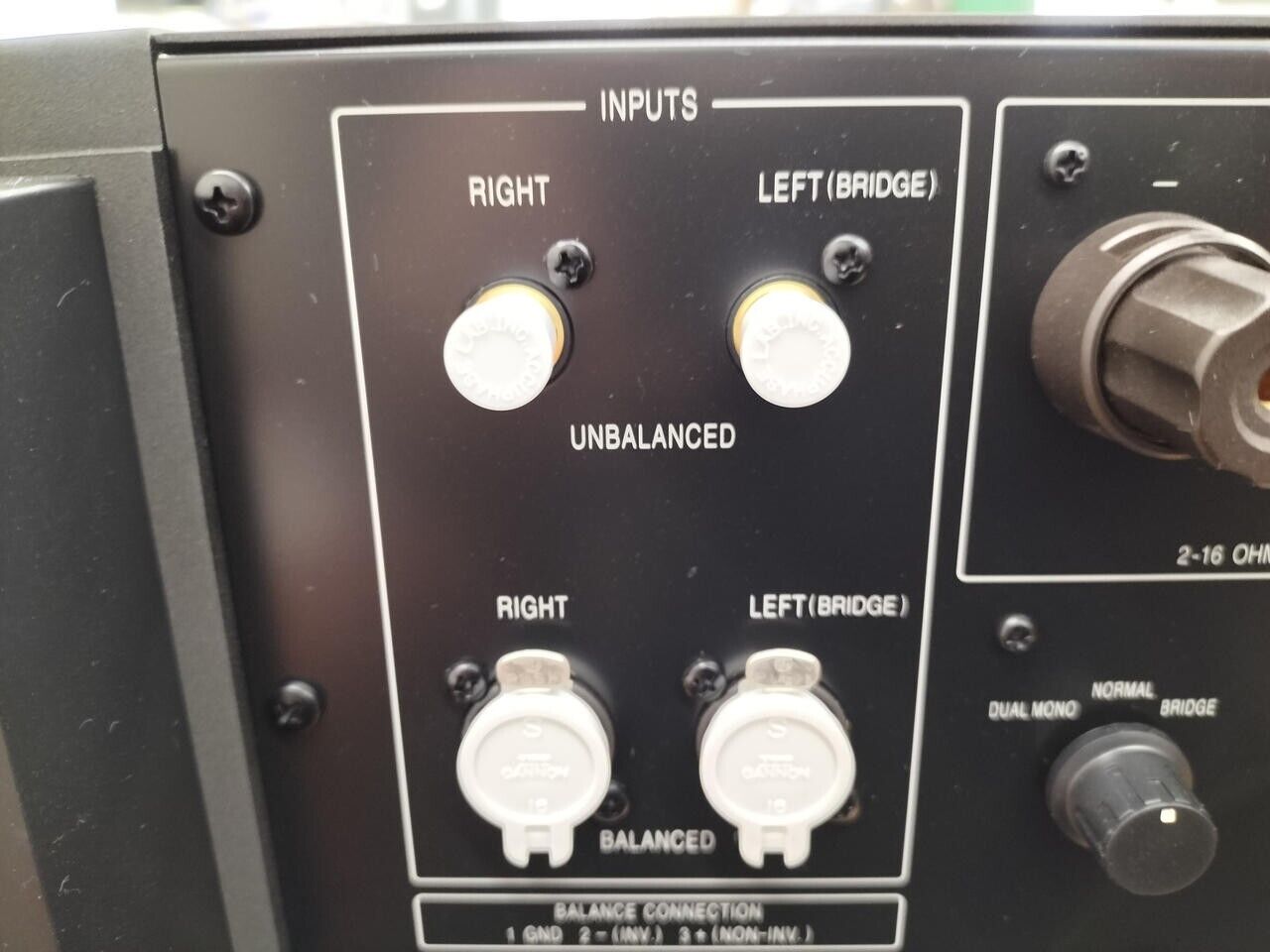

Input impedance Balanced: 40kΩ
Unbalanced: 20kΩ
S/N (A weighting, input short) 115dB (Gain switch Max)
120dB (Gain switch -12dB)
At rated continuous average output

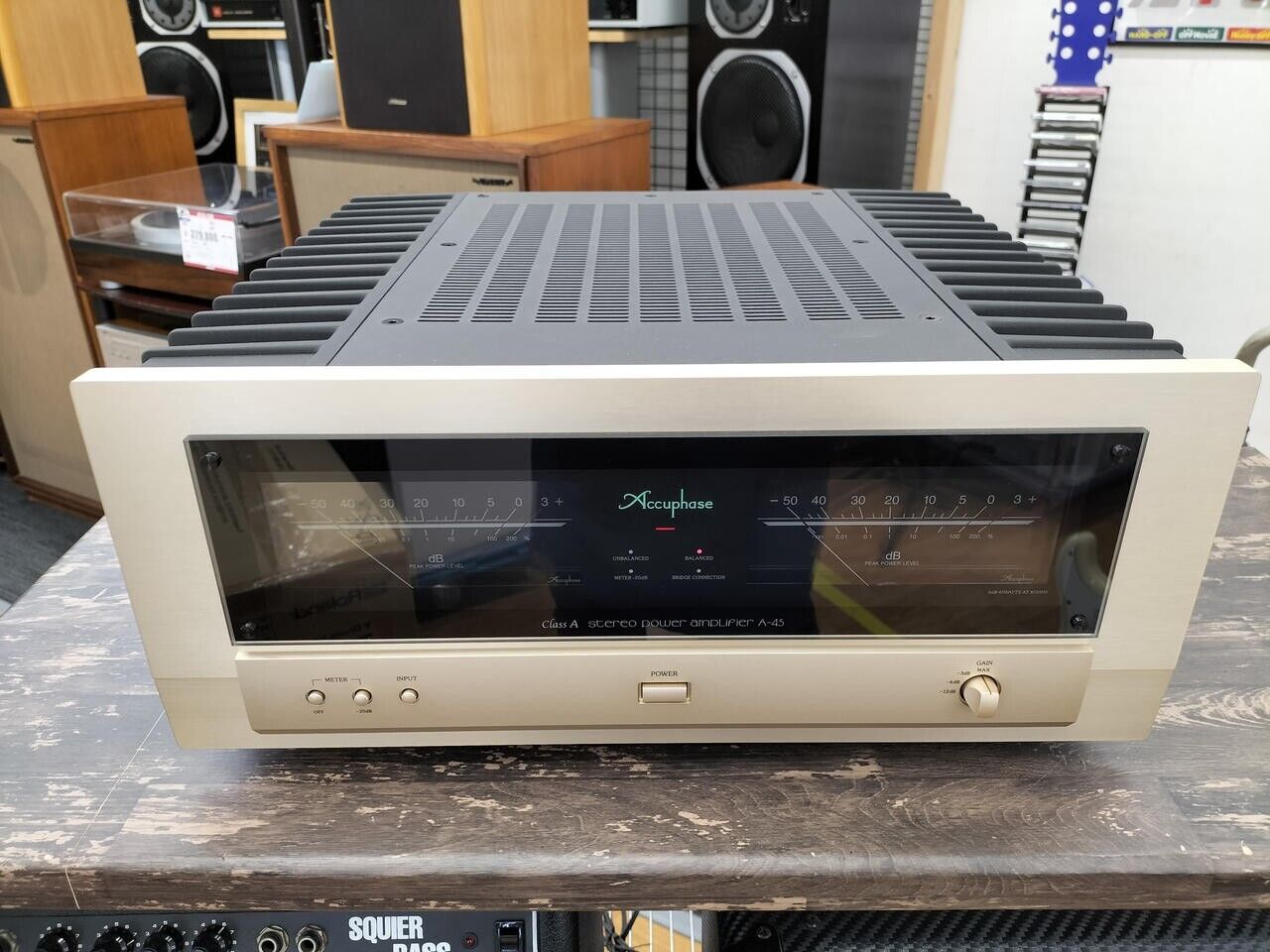

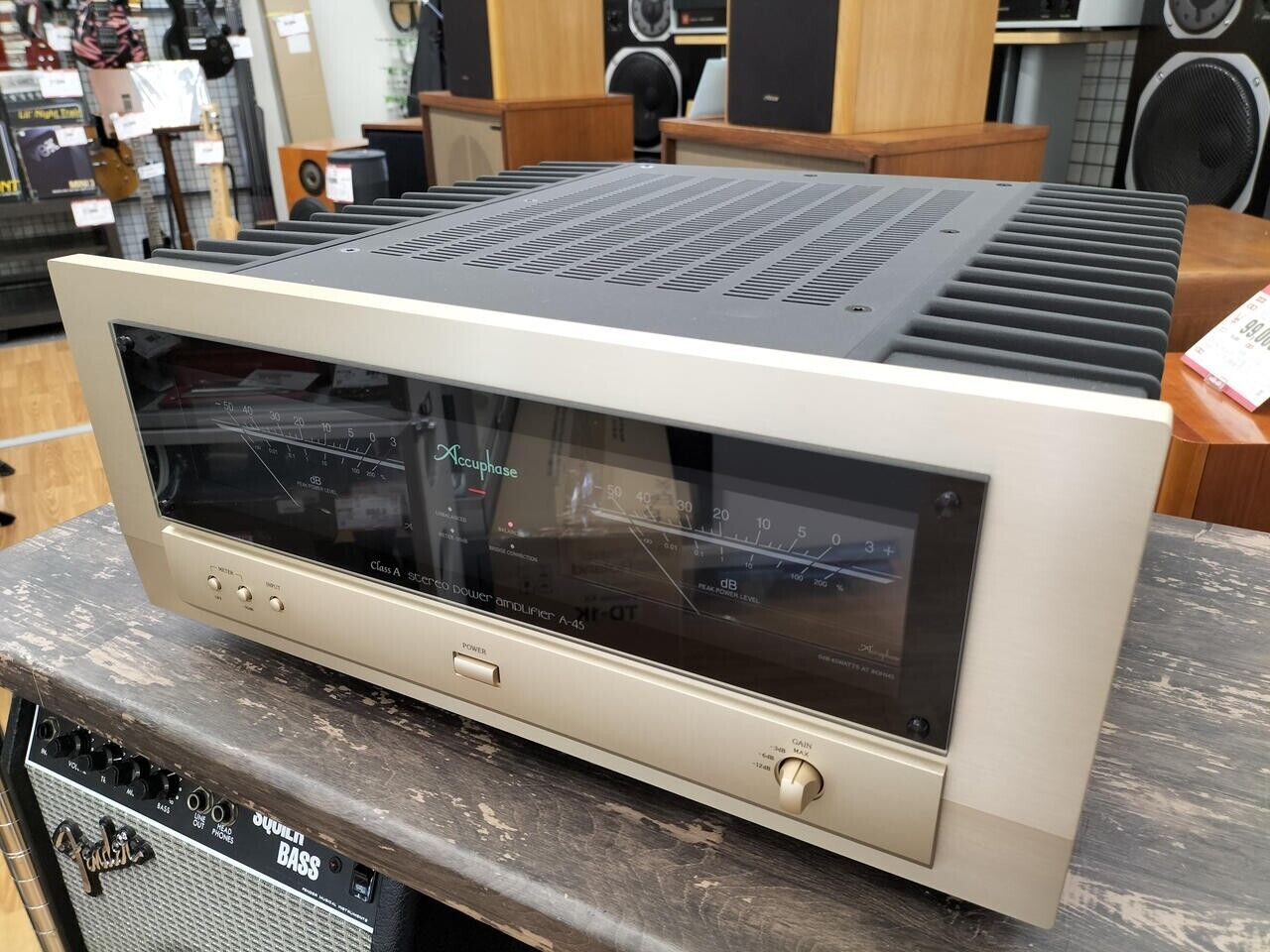

Output meter -50dB to ;3dB (dB/% display)
Logarithmic compression type, display off function, meter sensitivity switching function (-20dB)
Power supply AC100V, 50Hz/60Hz
Power consumption 235W (no input)
430W (Electrical Appliance and Material Safety Act)
290W (8Ω load rated output)
Maximum external dimensions Width 465 x Height 211 x Depth 464mm
Weight 30.9kg
