ACCUPHASE AD-2900 Analog Input Phono Equalizer Unit JAPAN kensonic IN STOCK
ACCUPHASE AD-2900 Analog Input Phono Equalizer Unit JAPAN kensonic IN STOCK
Regular price
$1,790.00 USD
Regular price
Sale price
$1,790.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Condition: Used | Brand: Accuphase |
| Type: Phono amp | Audio Inputs: ANALOG |
| Number of Channels: 2 | Number of Inputs: 2 |
| Color: Gold | Model: AD-2900 |
| Year Manufactured: 2024 | Country/Region of Manufacture: Japan |
Description
●AD-2900

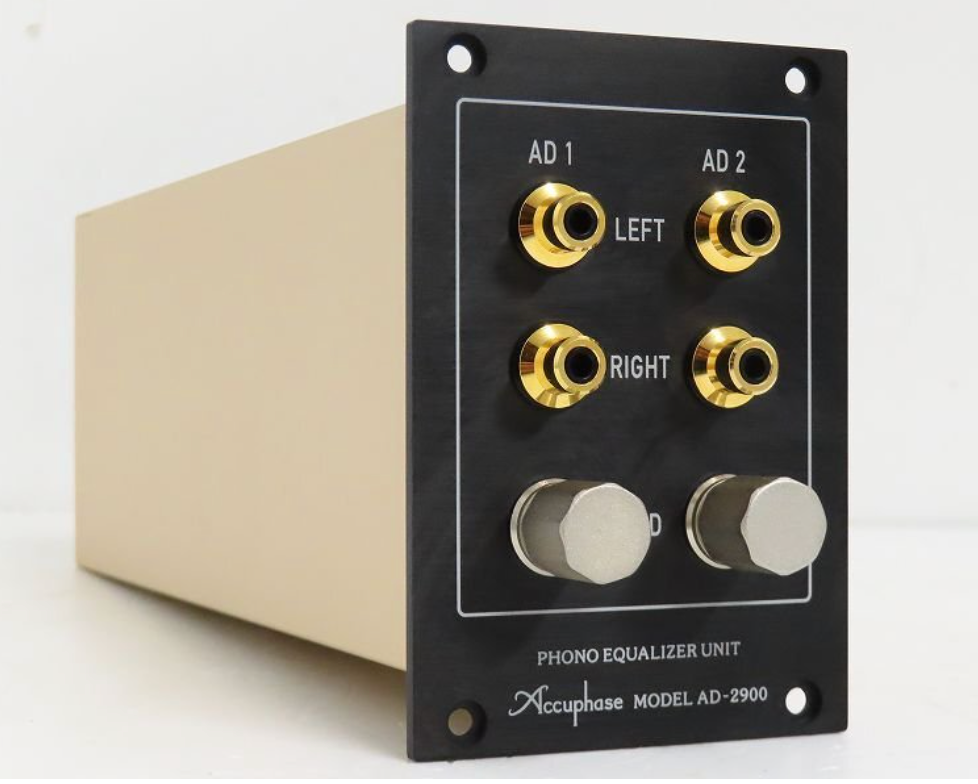

The AD-2900 is a phono equalizer unit for playing analog records.

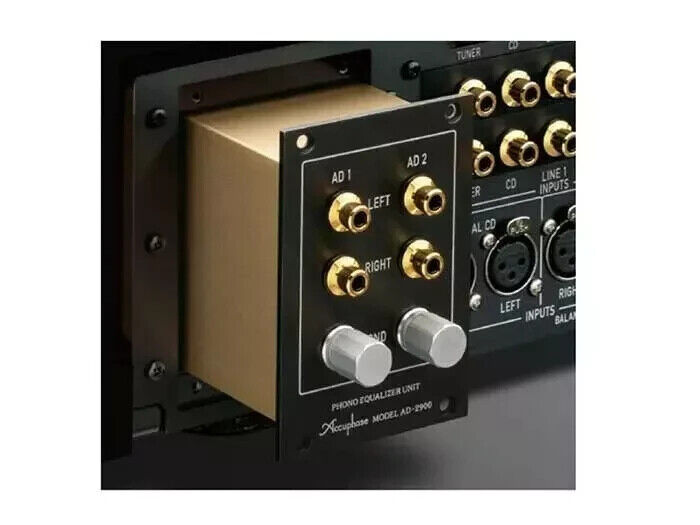

By adding the AD-2900 to the rear panel of the preamplifier, you can play high-quality analog records.
It is equipped with dedicated input circuits that match each MC/MM cartridge, achieving a high signal-to-noise ratio.
In addition, you can switch between the two input terminals simply by operating the preamplifier's input selector.
●Uses a glass cloth fluororesin substrate with independent left and right configuration
●Ideal MC/MM independent input circuit for high noise performance
MC: Differential amplifier circuit using ultra-low noise transistors
MM: Differential amplifier circuit using ultra-low noise FETs
●Equipped with a differential equalizer circuit that achieves high-precision RIAA characteristics

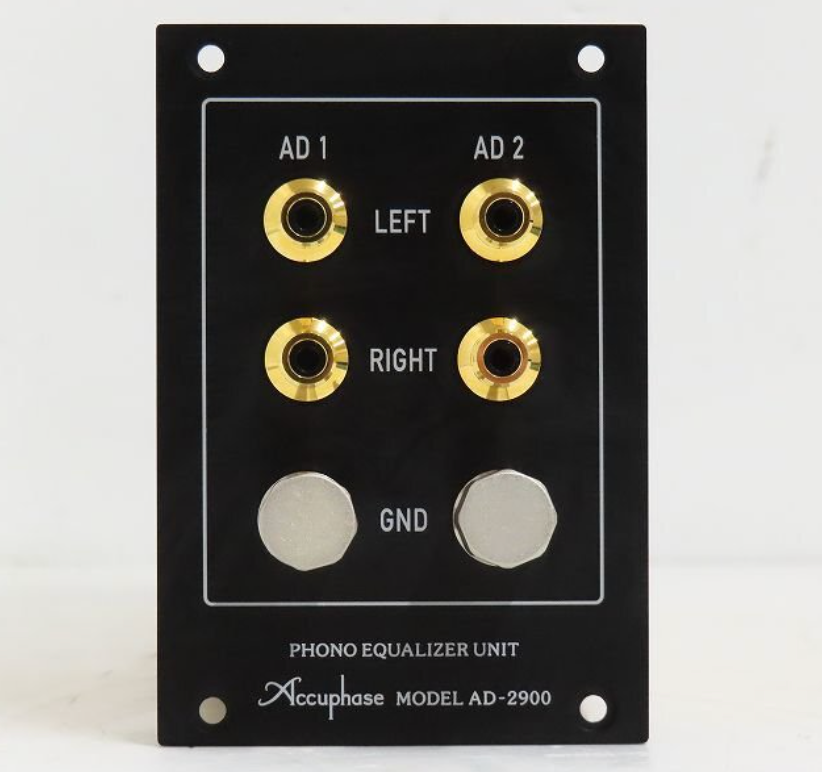

●Two input terminals that can connect two tone arms
●Memorizes settings (impedance, gain, etc.) for each input (AD1, AD2) of the C-2900,
allowing smooth switching between two analog players and arms
●Rugged aluminum case that minimizes the effects of external noise
●Compatibility Use with preamps other than the C-2900 (C-2850/C-2450, etc.)
AD-2900 Can also be used with the C-2850/C-2820/C-2810/C-2800/C-2450/C-2420/C-2410/C-2400/C-290V/C-290.
Cartridge Gain LOAD Impedance
MC 64/70dB switch 10/30/100/200/300Ω switch
MM 34/40dB switch 47kΩ fixed
● Regardless of the preamp model installed, the gain is MC: 64/70dB, MM: 34/40dB.
*Please note that if installed in the models below, the display on the gain switch will be different.
C-2820, C-2810, C-2800, C-2420, C-2410, C-2400, C-290V, C-290
●The load impedance that can be selected during MC varies depending on the preamp model.
Preamp Gain
C-2900 10/30/100/200/300
C-2850/C-2820/C-2450/C-2420 10/30/100/300
C-2810/C-2800/C-2410/C-2400/C-290V/C-290 10/30/100
