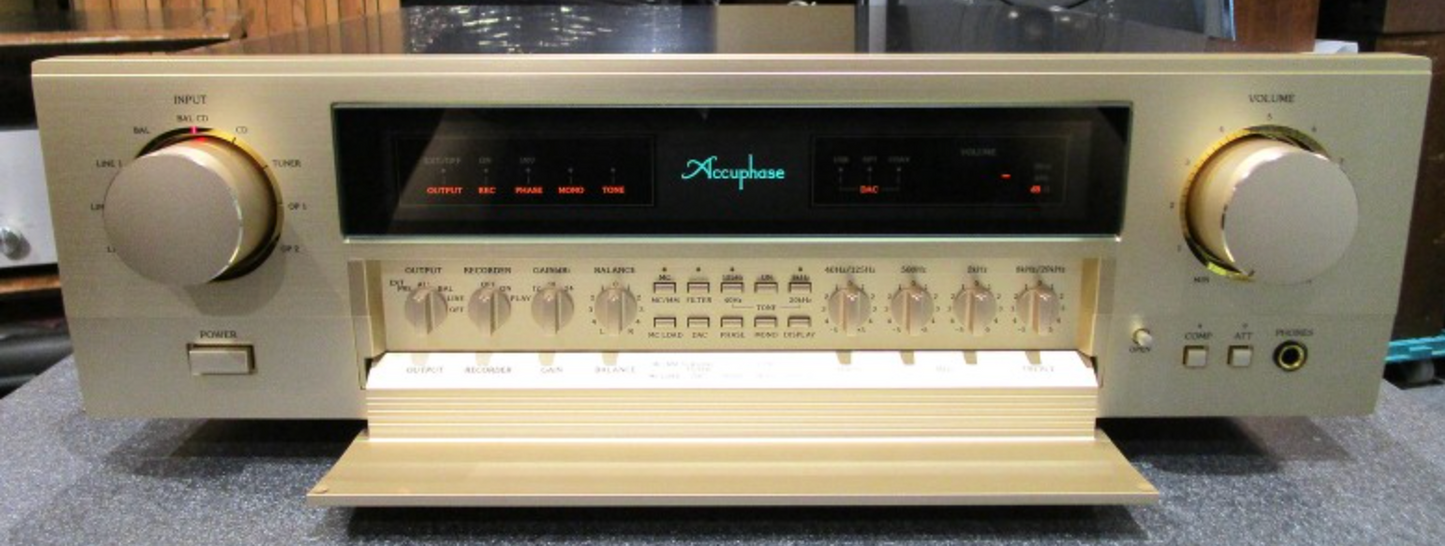

Accuphase C-2300 Control Amplifier

By adopting the "Balanced AAVA" developed for the C-2900, the entire signal flow from the input terminal to the output terminal is a fully balanced volume control, achieving even higher quality sound reproduction. Equipped with a newly developed 4-band tone control. Two MID position bands have been added to the 2-band tone control that was installed in the C-2150, allowing for more detailed sound quality adjustments. The rear panel is equipped with two slots for adding optional boards. By adding optional boards (sold separately), it is possible to provide high-resolution playback of analog records and high-resolution playback via USB connection to a PC. A wide range of optional boards can be installed, including the digital input board DAC-60 and analog disc input board AD-60. When the DAC-60 is installed, it supports DSD 2.8/5.6/11.2MHz and PCM 384kHz display. (MHz/kHz switching) When the AD-60 is installed, it supports subsonic filter switching and MC input impedance switching from the front panel. Supports subsonic filter switching and MC input impedance switching from the front panel (when using the AD-60). When using the analog disc input board AD-60, the subsonic filter can be turned on/off and the MC input impedance can be switched from the front panel.

■Frequency response: 20-20kHz +0 -0.2dB　■Total harmonic distortion: 0.005%　■S/N ratio: 111dB (at rated output)

■Maximum LINE input voltage: BALANCED (6.0V), LINE (6.0V)

■Minimum impedance: BALANCED (600Ω), LINE (600Ω)

■Loudness compensator: 1, +2dB (100Hz) 2, +4dB (100Hz) 3, +6.5dB (100Hz)

■Subsonic filter: 10Hz -18dB/octave

■Atenuator: -20dB

■Headphone jack: Output level 2V (40Ω)

■Power supply: AC100V 50/60Hz

■Power consumption: 41W (optional board AD-60 and DAC-60 (When adding additional units)

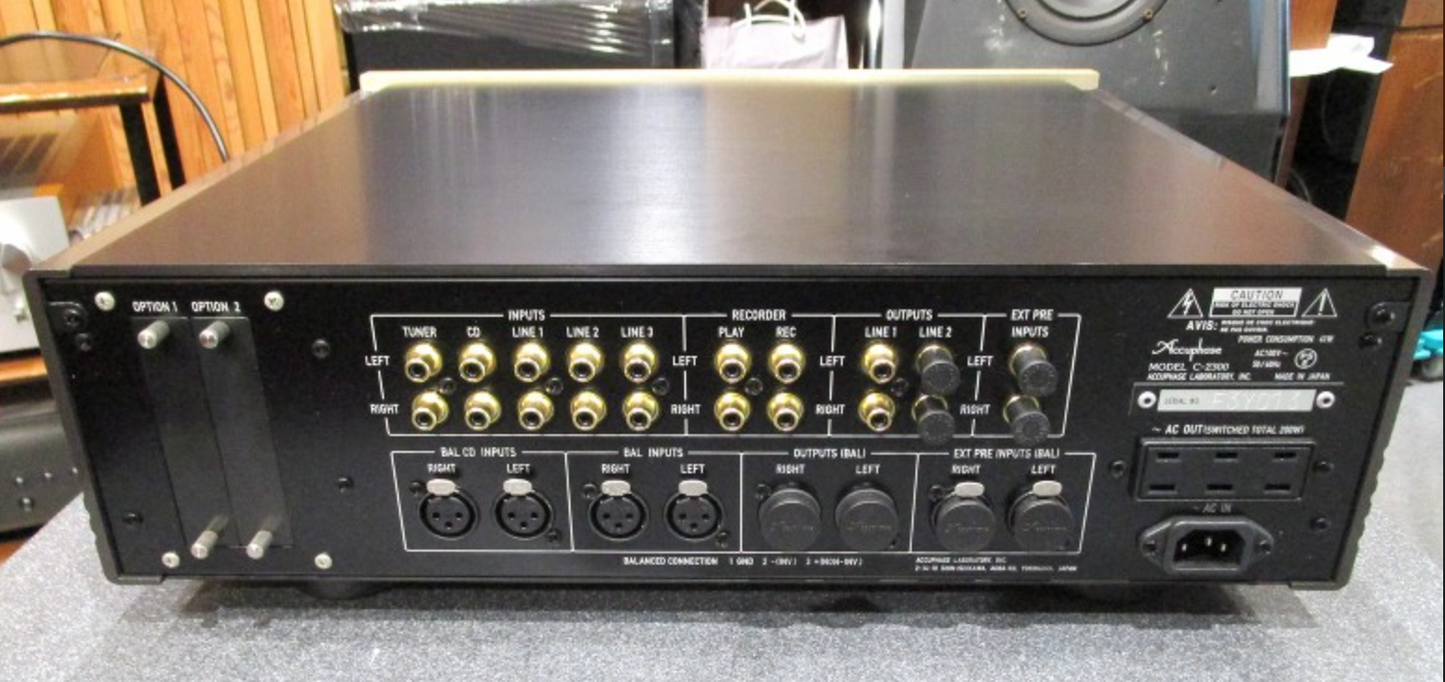

■Line input: 5 RCA, 2 XLR

■Line output: 2 RCA, 1 XLR

■Tape input/output: 1

■EXT IN: 1 RCA, 1 XLR

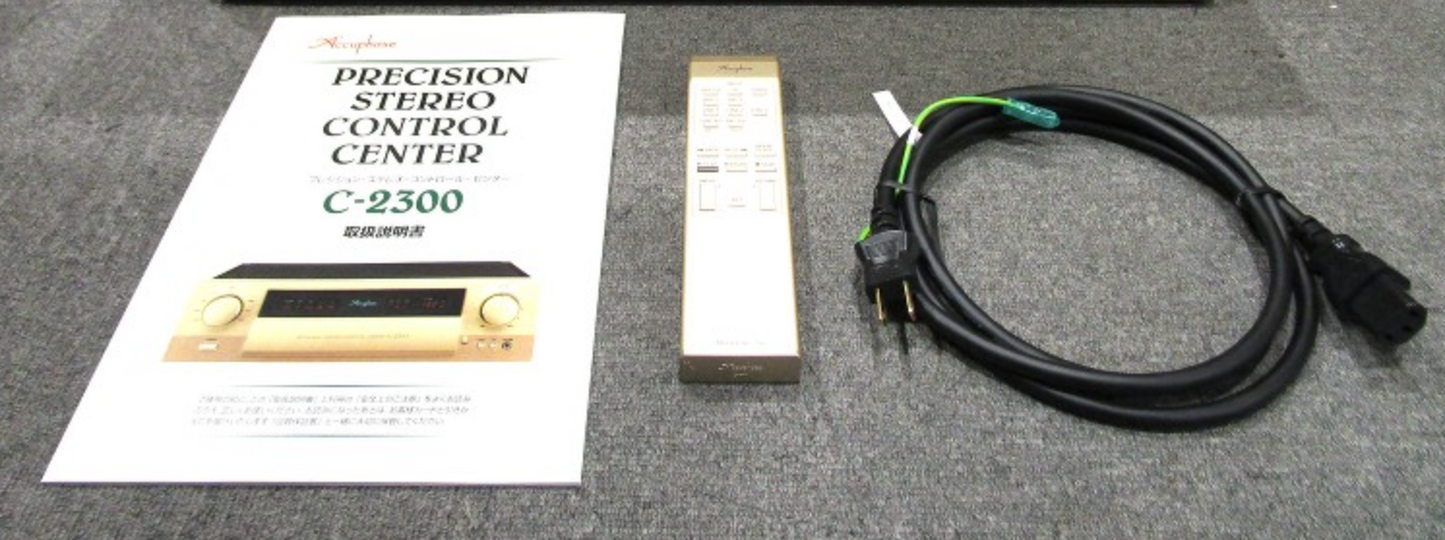

■Accessories: Instruction manual, remote control, power cable, original box included.

Size W (width): 465 mmH (height): 150 mmD (depth): 405 mm

Weight 19.3 kg
