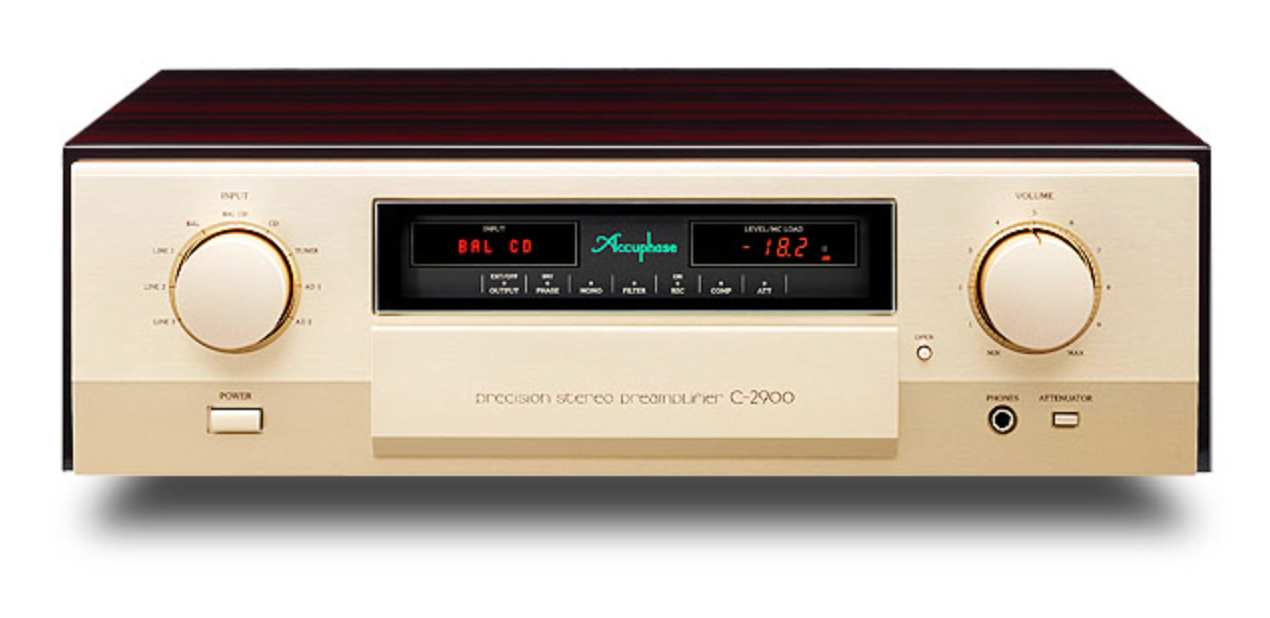

Accuphase C-2900 Control Amplifier

This is the fifth generation model, counting from the C-2800 equipped with AAVA. It is equipped with Balanced AAVA, which is composed of balanced circuits and drives two AAVA circuits in parallel. By using a discrete configuration for all balanced circuits from the input amplifier to the output amplifier, we have pursued the ideal amplification circuit and attractive sound quality. By incorporating newly developed block capacitors and independent left and right toroidal transformers, we have significantly improved various characteristics such as S/N ratio and distortion rate, enabling signal transmission of higher purity.

■Frequency response: 20-20kHz +0 -0.2dB　■Total harmonic distortion: 0.005%　■S/N ratio: 113dB (at rated output)

■Maximum LINE input voltage: BALANCED (6.0V), LINE (6.0V)

■Minimum impedance: BALANCED (600Ω), LINE (600Ω)

■Loudness compensator: 1, +2dB (100Hz) 2, +4dB (100Hz) 3, +6.5dB (100Hz)

■Subsonic filter: 10Hz -18dB/octave

■Atenuator: -20dB

■Headphone jack: Output level 2V (40Ω)

■Power supply: AC100V 50/60Hz

Power consumption: 31W

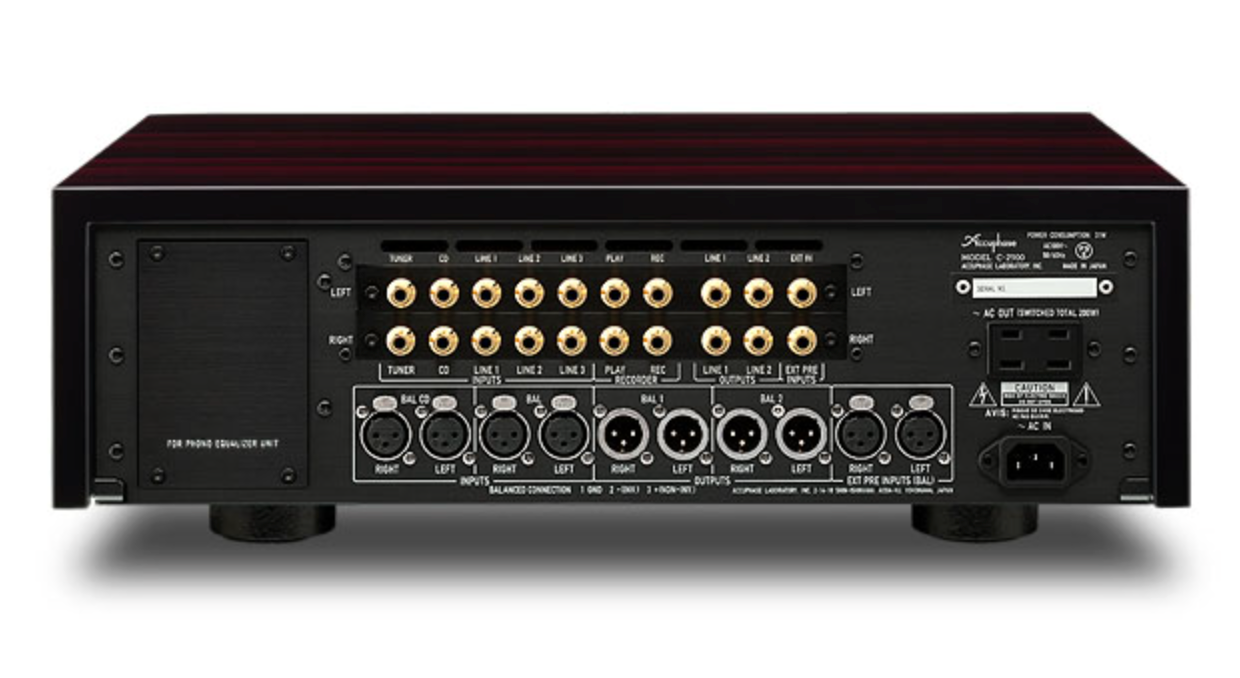

Line input: 5 RCA, 2 XLR

Line output: 2 RCA, 2 XLR

Tape input/output: 1

EXT IN: 1 RCA, 1 XLR

Accessories: Instruction manual, remote control (RC-250), power cable (APL-1), RCA cable (ASL-10B), cleaning cloth,

Size W (width): 477 mm H (height): 156 mm D (depth): 412 mm

Weight 24.2 kg
