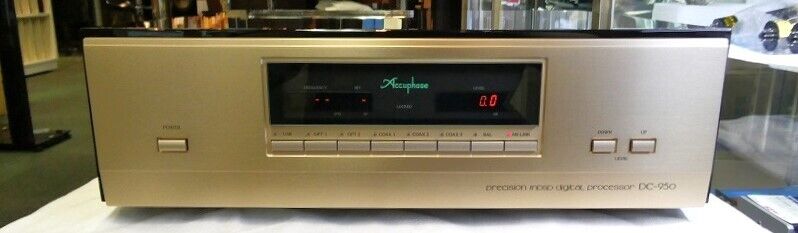

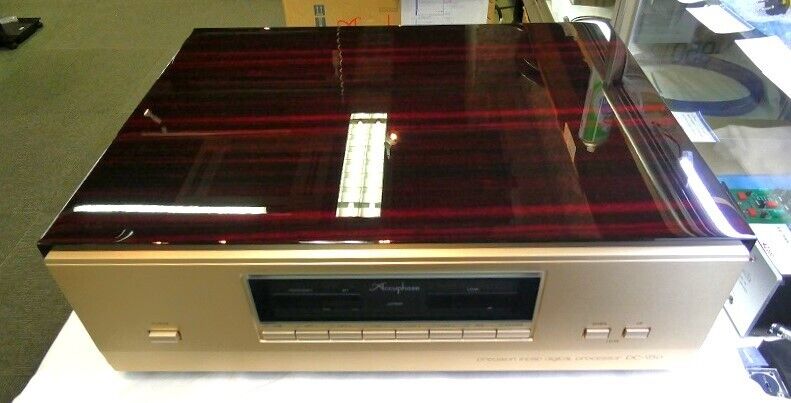

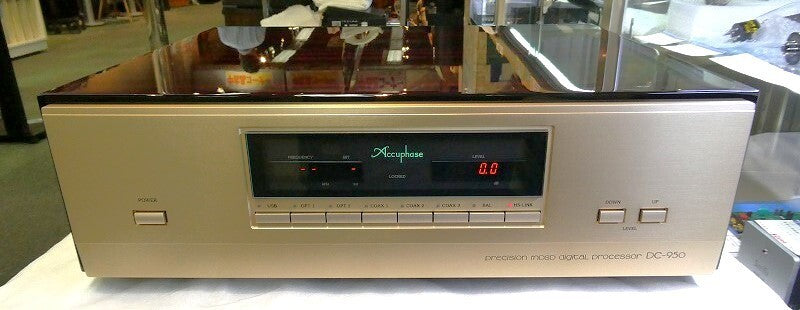

Equipped with MDSD (Multiple Double Speed DSD) compatible with 11.2896MHz (1bit 2ch DSD). Equipped with 8-circuit parallel drive "MDS++ conversion type D/A converter" compatible with 384kHz (32bit 2ch PCM). DAC is the latest Advanced Hyperstream DAC made by ESS Technology. Adopts ES9038PRO. Internal structure clearly separates digital and analog systems. Adopts glass cloth fluororesin base material for filter amplifier printed circuit board. Adopts high-quality insulators made of advanced high carbon cast iron.

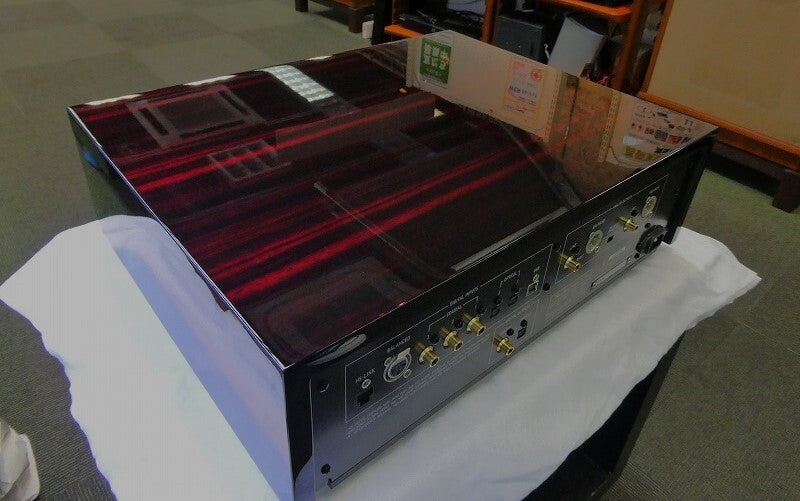

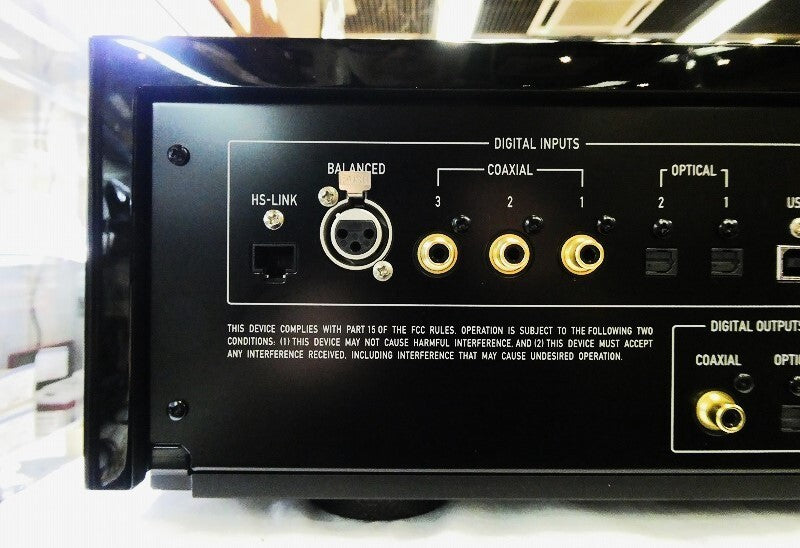

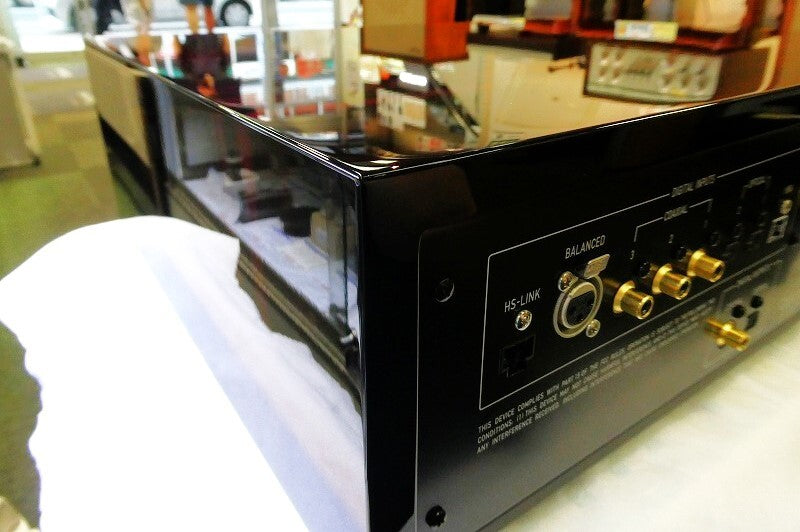

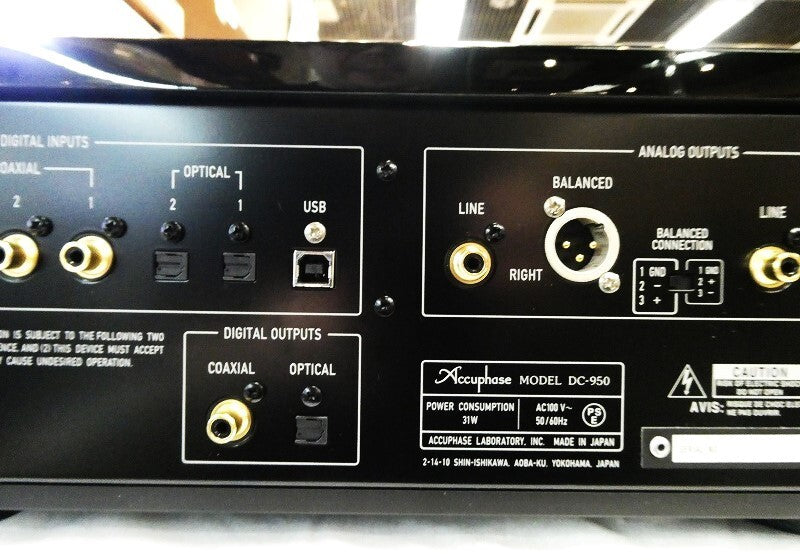

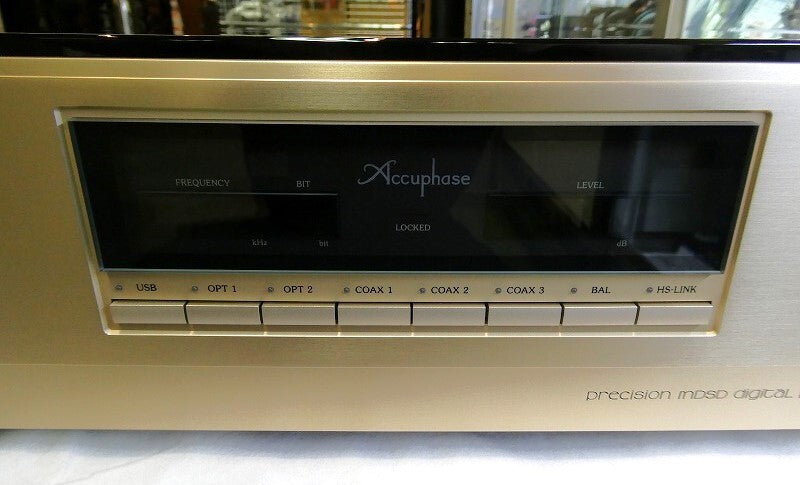

■Digital input: HS-LINK, BALANCED, COAXIAL, OPTICAL, USB
■Digital output: COAXIAL, OPTICAL
■Frequency response: 0.5-50,000Hz
■Total harmonic distortion: 0.000045% (20-20.000Hz)
■S/N ratio: 122dB
■Dynamic range: 119dB
■Channel separation: 120dB

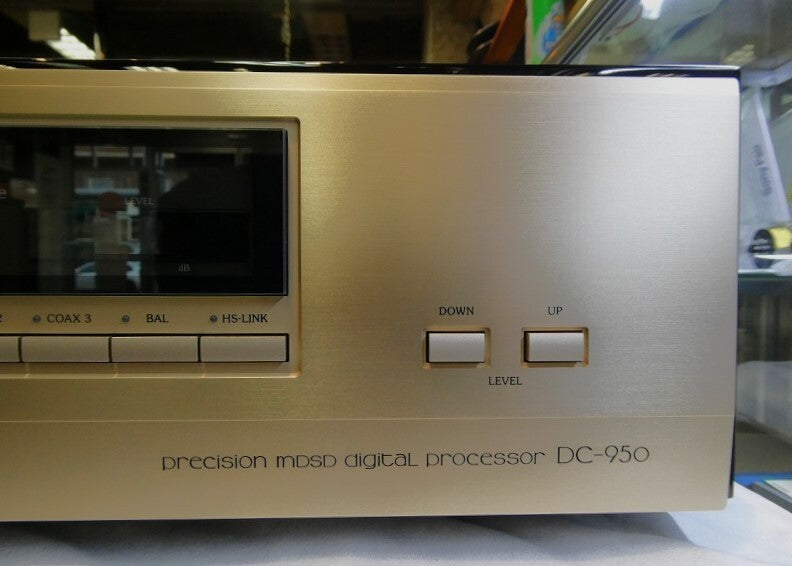

■Output level control: 0dB to -80dB

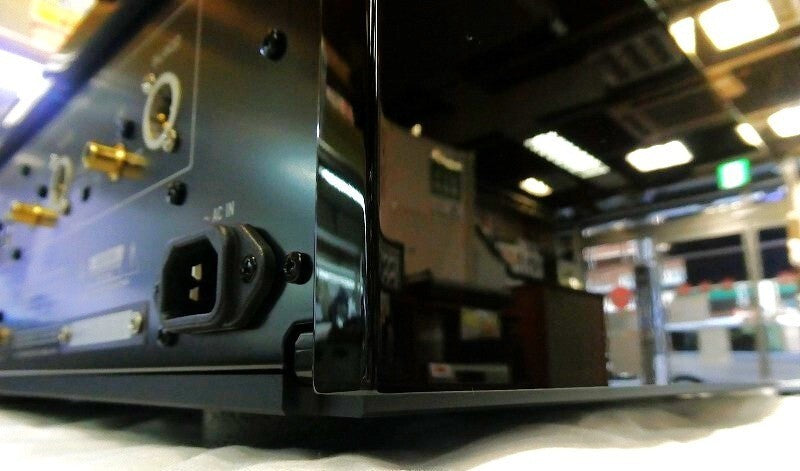

■Power supply: 100V 50/60Hz
■Power consumption: 31W
■Accessories: Original box, instruction manual

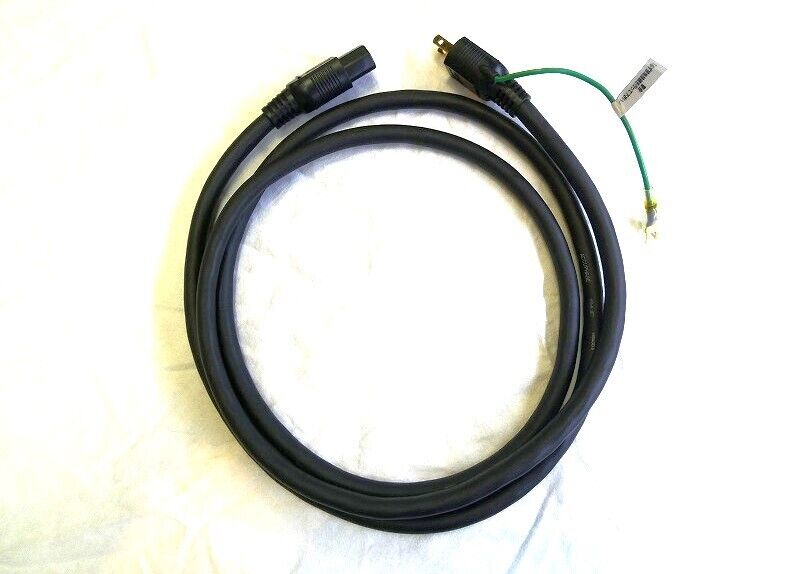

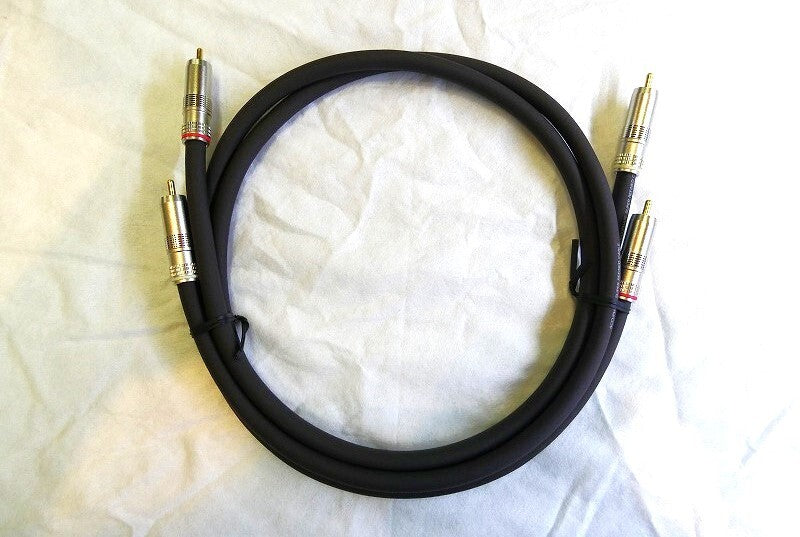

AC power cord, audio cable with plug, USB utility 2CD, setup guide, cleaning cloth
Size W (width): 477 mmH(height): 156 mmD(depth): 393 mm
Weight 24.2 kg
