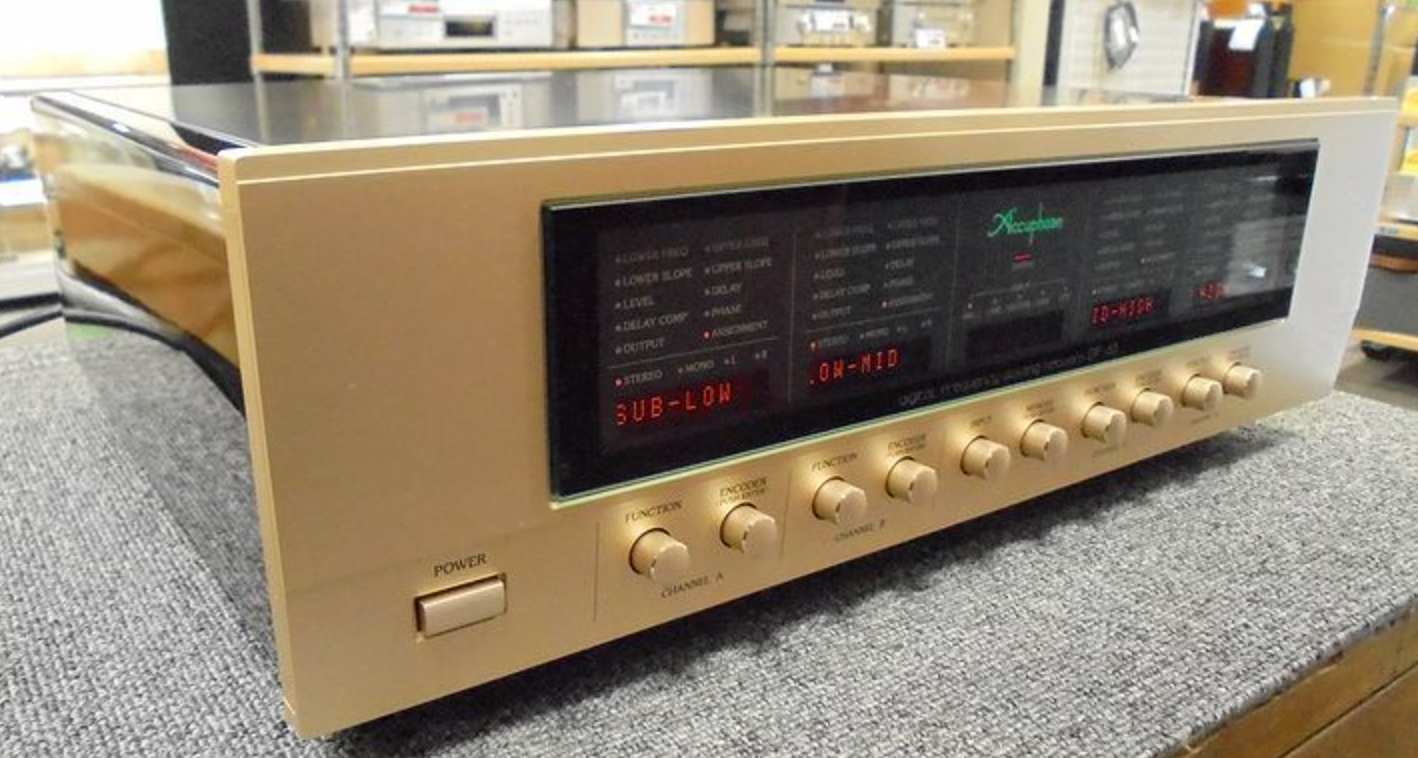

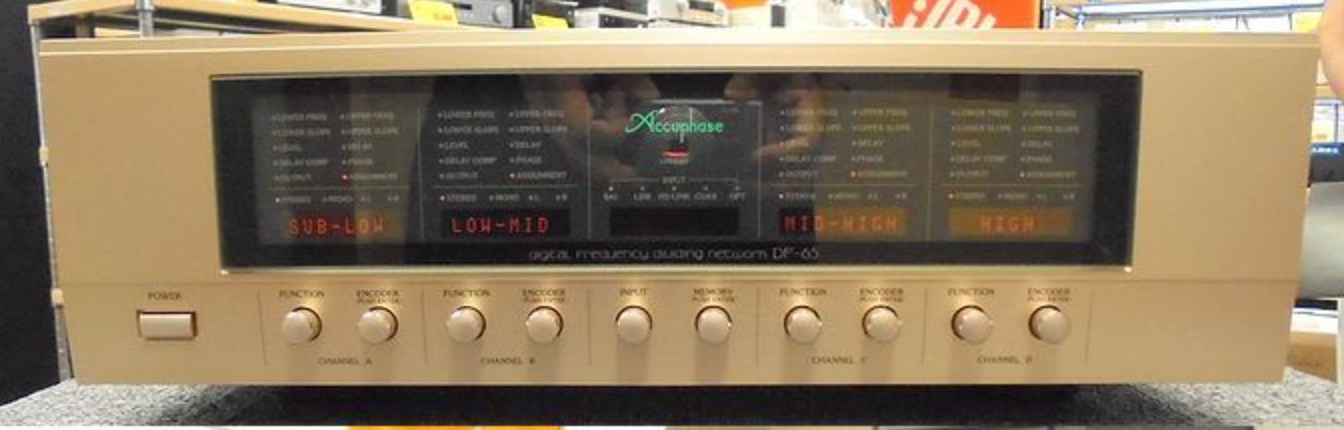

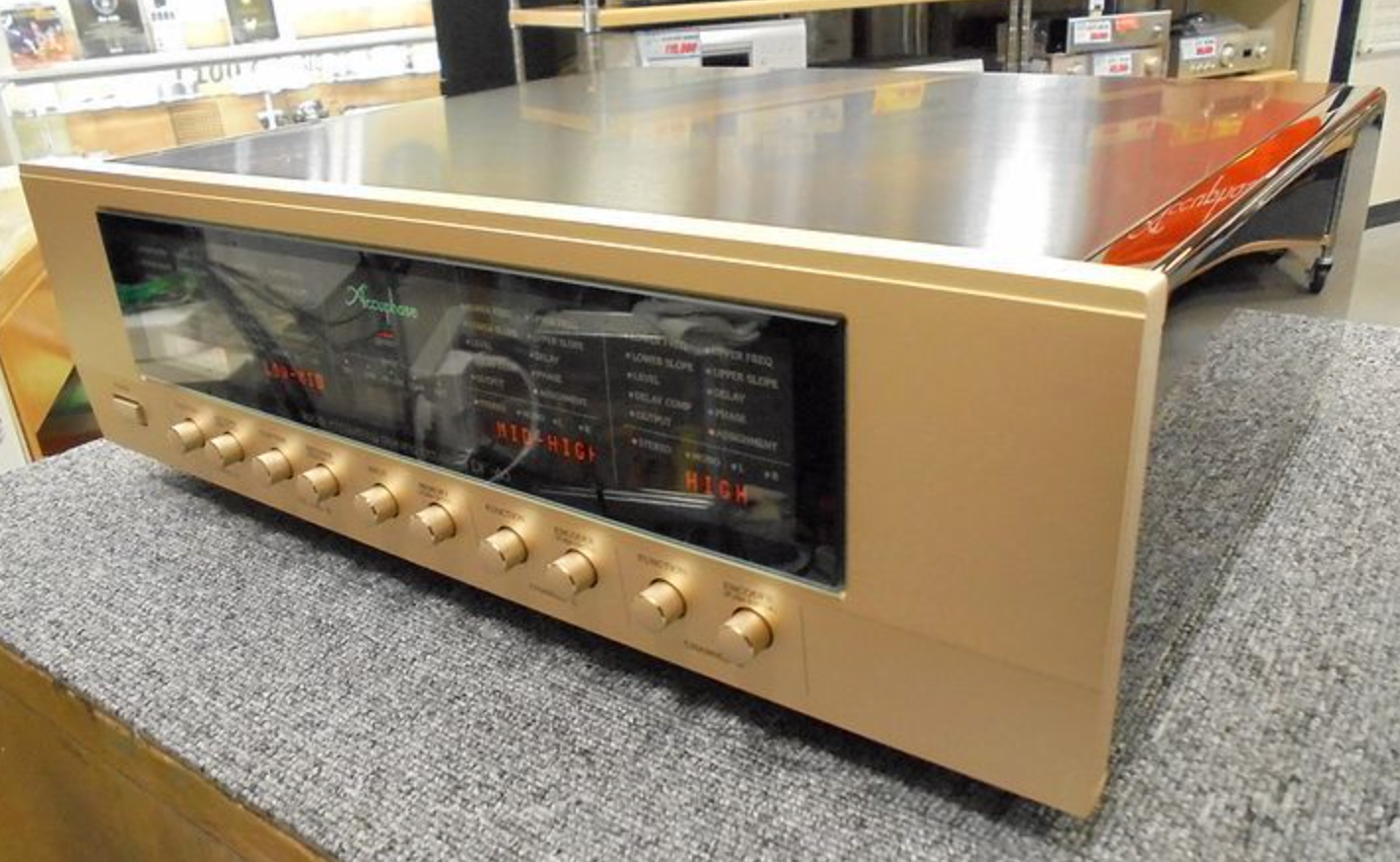

A fully digital multi-channel divider that pursues the ideal, achieving the highest performance and sophisticated functions and operability to fully enjoy the essence of audio. The DF-65 is a full model change from the DF-55. Equipped with a high-speed, high-precision DSP, it achieves higher-order filter characteristics with even less error. The conversion from digital signals to analog signals uses four parallel circuits of the latest device, the Hyperstream™ DAC (ES9018S: manufactured by ESS Technology), dramatically reducing distortion and noise compared to conventional devices. In addition, the monophonic mode allows parallel driving of D/A converters, allowing you to make full use of the DF-65 and further improve performance.
■Cutoff frequency: 31.5Hz to 22.4kHz (-30dB, 59 points)
■Attenuation characteristics: 6dB/octave, 12/octave, 18/octave, 24/octave, 48/octave, 96/octave
■Level control: +45.0dB to 40.0dB for each band (0.1dB steps)
■Time alignment: 0.5cm increments up to 3000cm
■Setting memory function: 1 to 5

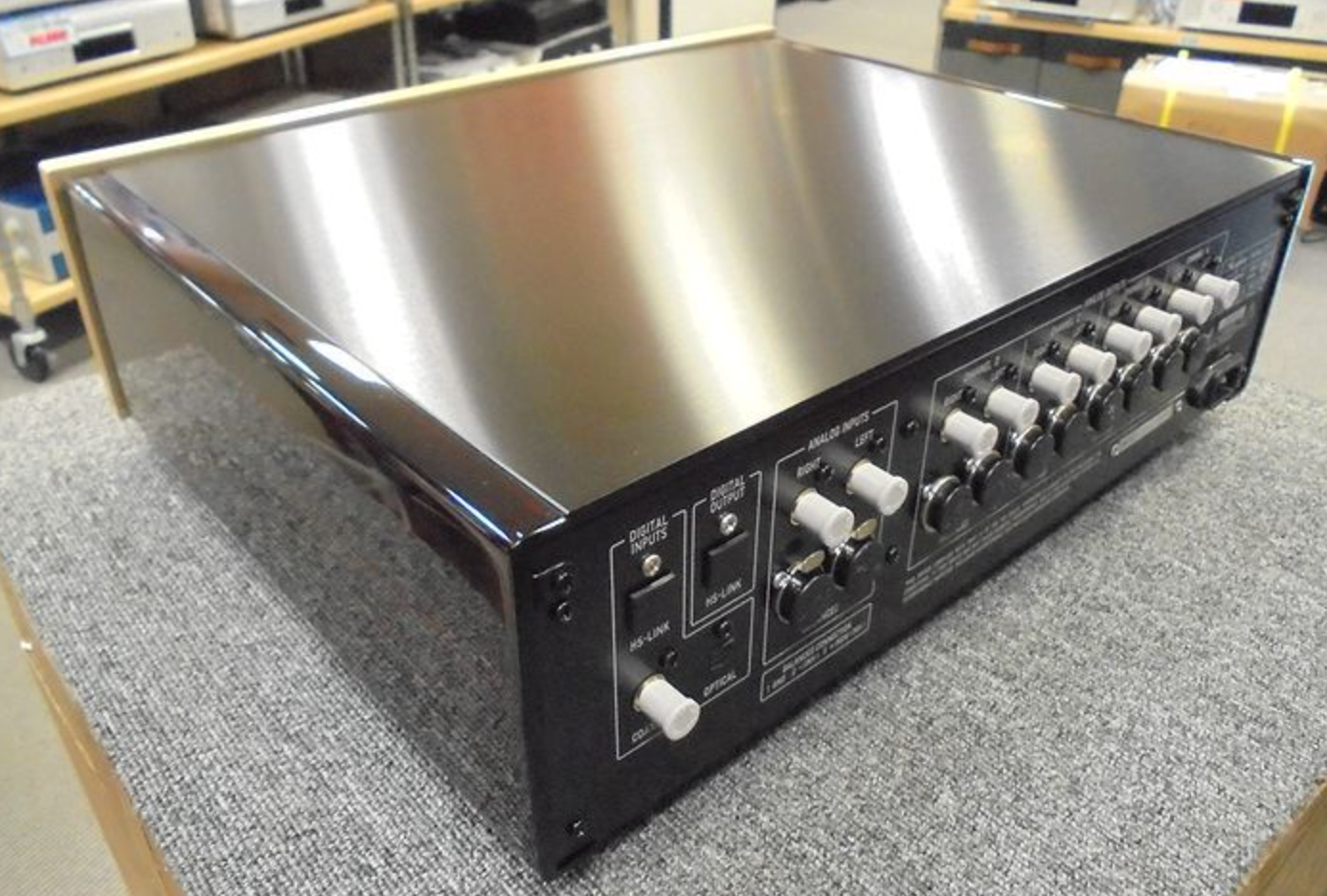

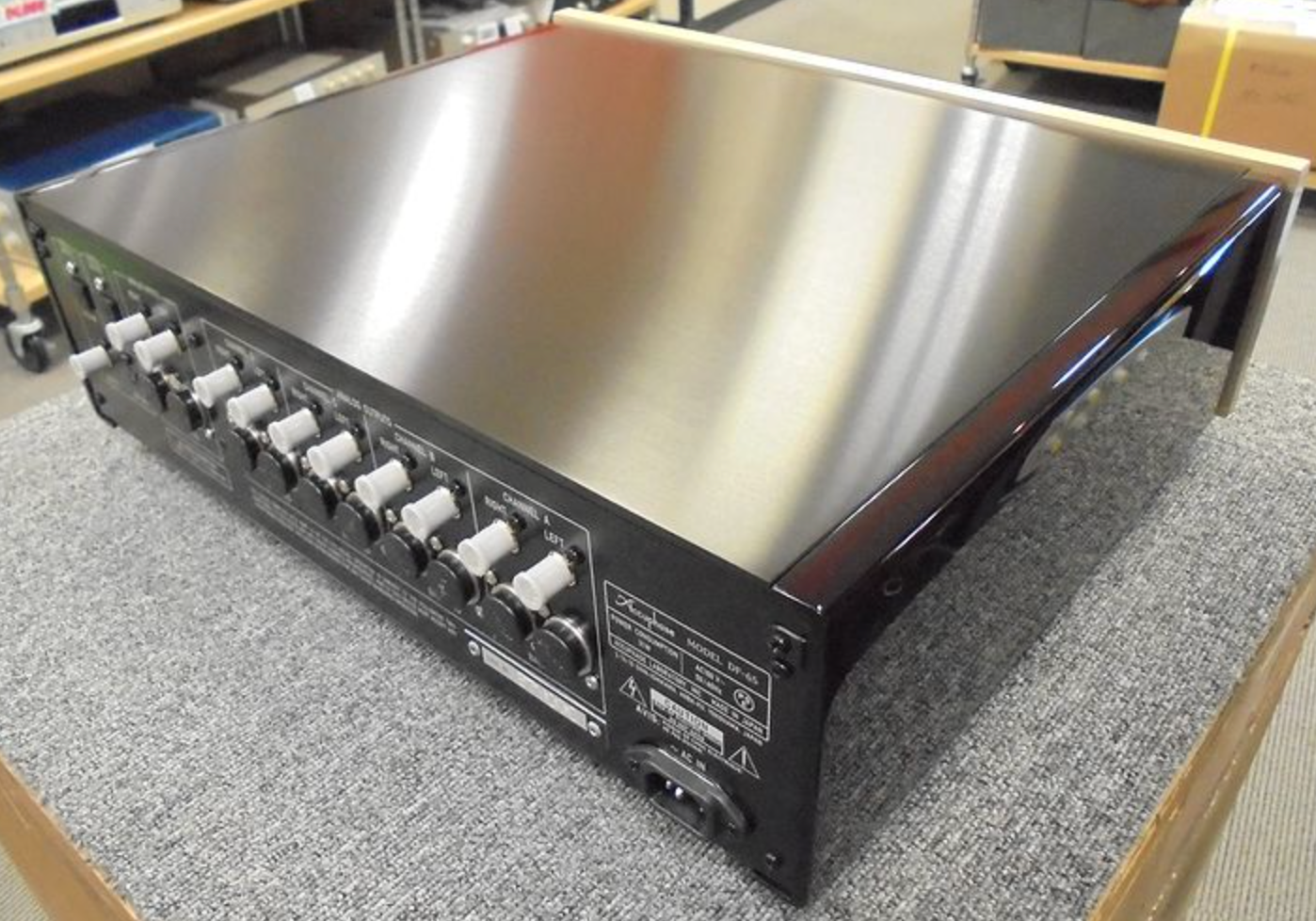

■Analog input: 2 systems (RCA, XLR)
■Digital input: 3 systems (coaxial, optical, HS-LINK)
■Digital audio output: 1 system (HS-LINK)
■Pre-out: 4 systems (RCA/XLR x 4)
■Power consumption: 31W

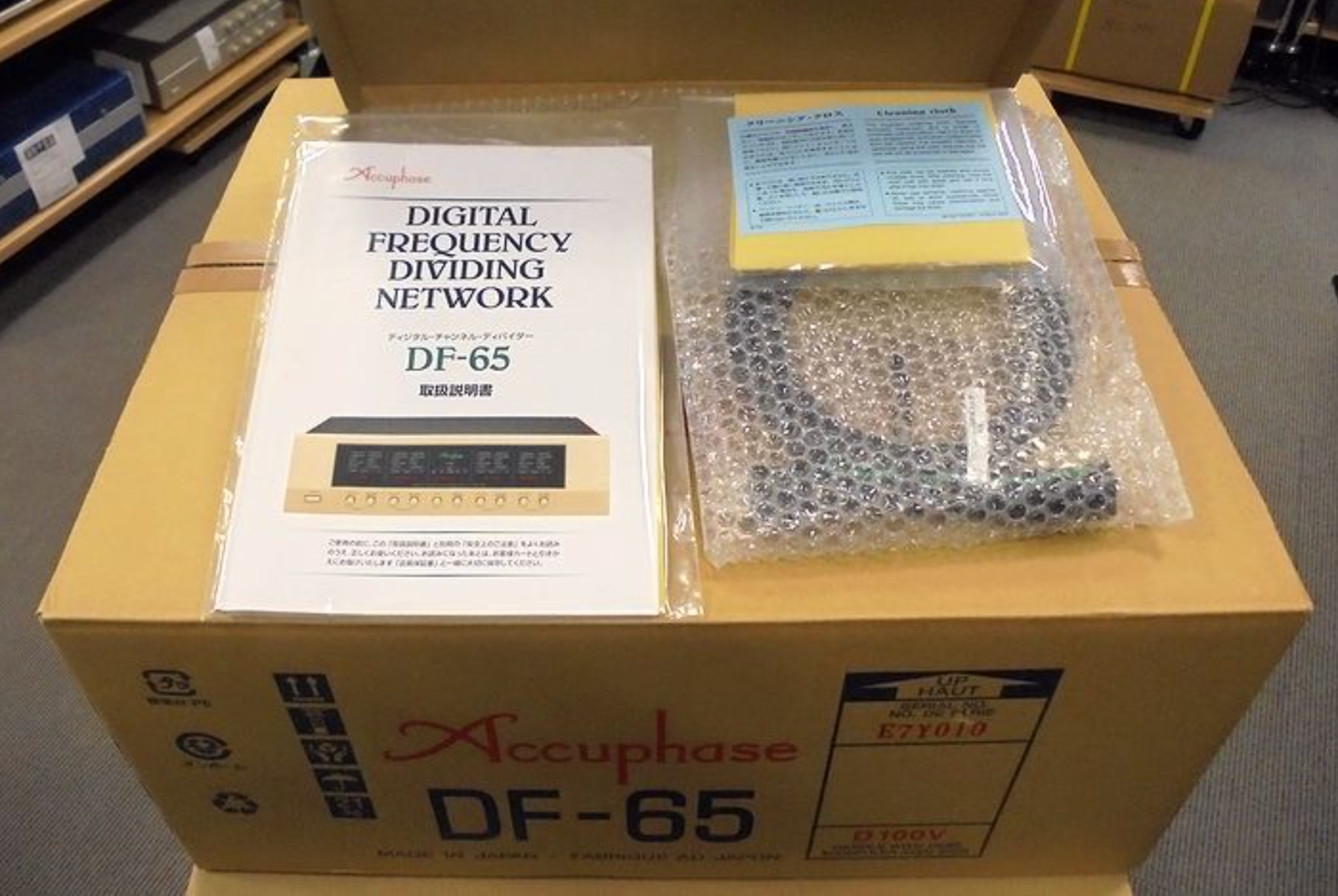

■AC. cable and cleaning cloth are unopened and unused.
W(Width): 465 mmH(Height): 151 mmD(Depth): 396 mm
Weight 15.1 kg
