Accuphase DG-58 Digital Voicing Equalizer

The DG-58 is the fourth generation digital voicing equalizer, developed using Accuphase's unique advanced digital signal processing technology.

It has two new simple voicing courses that allow automatic measurement and correction with simple operation, and a custom voicing course that allows thorough sound field correction to achieve your favorite sound.

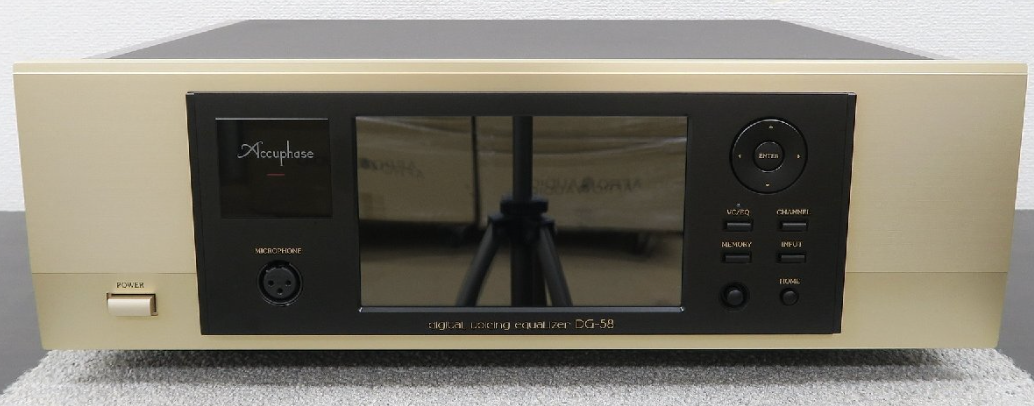

The basic operation screen uses a large, high-definition wide color LCD display, and the functions can be operated with a stylus pen. The function of inputting the desired frequency curve by drawing it directly on the screen has been greatly improved, allowing for easier and faster operation.

This product revolutionizes the concept of sound field correction, and although it is a large-scale equalizer, it allows easy and graphical adjustment with a very simple operation system.

・Voicing: 1/6 octave, 67 bands IIR filter method

Adjustment range: ±12dB

・Equalizer: 1/6 octave, 80 bands IIR filter method

Adjustment range: ±12dB

・Measurement signal: Warble tone

・Frequency response input method: Drawing input with stylus pen and cursor/key input

・Spectrum analyzer: 1/3 octave, 35 band real-time method

Display level: +18dBFS to -90dBFS (5 range switching method)

・Playback frequency response: 0.5 to 50,000Hz +0 -3.0dB

(Sampling frequency: 2.8224MHz or 192kHz)

4.0 to 20,000Hz +0 -0.3dB

・Total harmonic distortion rate + noise (analog input → analog output: between 20 to 20,000Hz): 0.001%

・Gain: +12 to -90dB variable

・Maximum analog input: GAIN +6dB: 0.89V

GAIN 0dB: 1.78V

GAIN -6dB: 3.55V

・A/D converter: Method: Advanced multi-bit ⊿Σ modulation

Sampling frequency: 44.1kHz, 88.2kHz, 176.4kHz

Bits: 24bit

・D/A converter: Method: 8MDS++

Sampling frequency: 32kHz-192kHz

Bits: 32bit

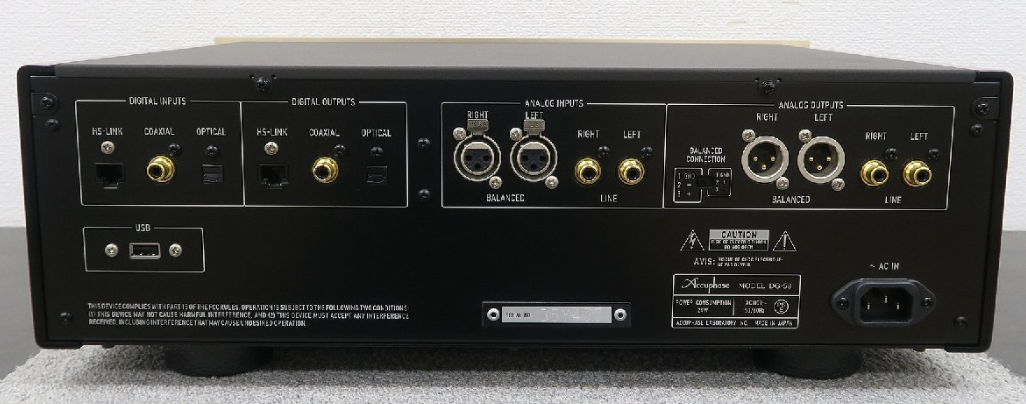

・Digital input: HS-LINK Connector shape: RJ-45

Compatible cable: HS-LINK dedicated cable

COAXIAL Format: Compliant with IEC 60958

OPTICA Format: Compliant with JEITA CP-1212

・Sampling frequency: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz,

176.4kHz, 192kHz (16-24bit 2ch each) PCM)

(OPTICAL up to 96kHz)

[HS-LINK only] 2.8224MHz (1bit 2ch DSD)

- Digital output: HS-LINK Connector shape: RJ-45

Compatible cable: HS-LINK dedicated cable

COAXIAL Format: IEC 60958 compliant

OPTICAL Format: JEITA CP-1212 compliant

- USB terminal: USB2.0/3.0 (up to 128GB) for connecting flash memory

(Cannot be connected to PC)

- OS: Microsoft Embedded Compact 7

- Power supply: AC100V 50/60Hz

- Power consumption: 24W

- Maximum external dimensions: Width 465mm x Height 161mm x Depth 396mm

- Weight: 14.3kg

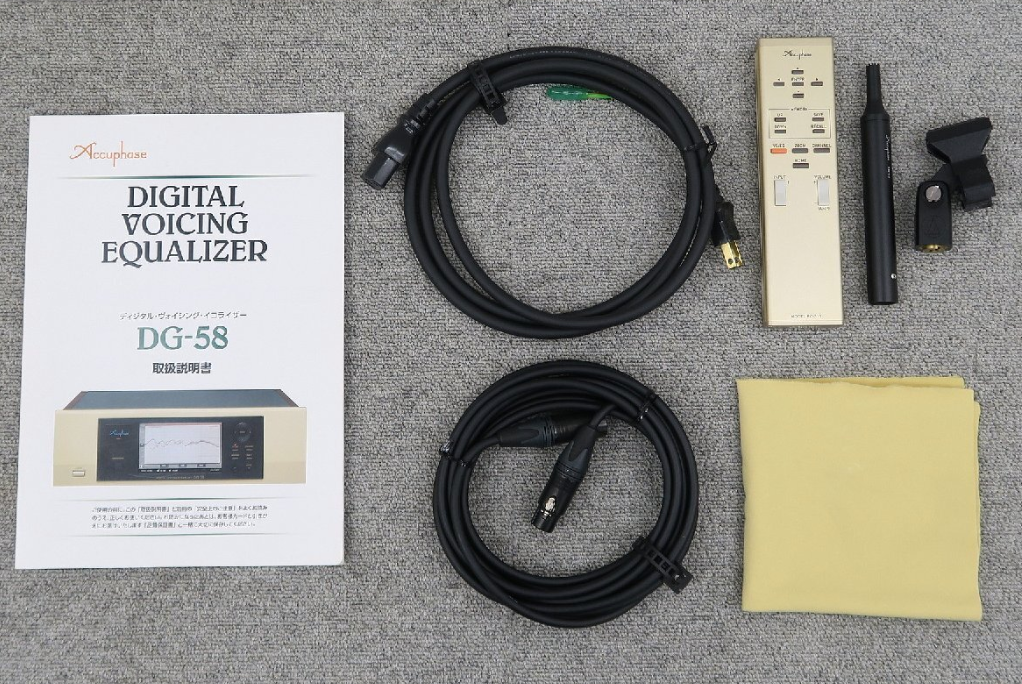

- Accessories: Items shown in the photo are included.
