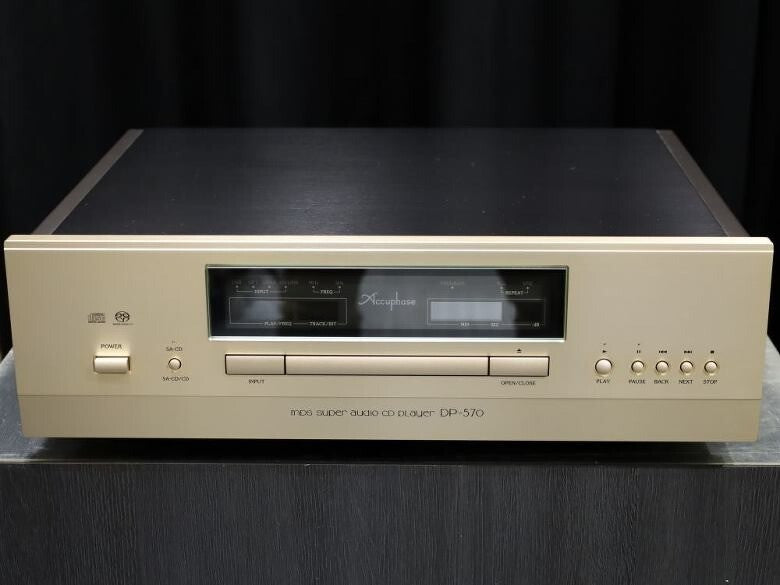

Accuphase DP-570 SACD Player

Integrated SACD player. The transport section has evolved from a heavy-weight structure that eliminates vibration and resonance to the maximum extent possible, and the highly rigid and highly accurate "SACD drive" is equipped with a traverse mechanism that uses a newly developed "elastic damper" that floats the optical pickup and a quiet and elegant loading mechanism, allowing the digital signal engraved on the disc to be read with high precision and delivers the signal to the next D/A converter section. The digital processor section drives four high-performance ESS DACs "ES9028PRO" in parallel, and is equipped with an original "MDS+ playback method" to reduce conversion errors, further improving various characteristics such as lowering distortion and noise, and 100% depicting the potential and charm of SACD, which has infinite possibilities. A new "program playback function" has been added to improve usability. The digital input terminals are equipped with four systems: HS-LINK (compatible with Ver.2), coaxial, optical, and USB (compatible with PCM: 384kHz/32bit, DSD: up to 11.2MHz).

■Compatible discs: CD, SACD, DSD discs　■Transport output: HS Linkver.2 x 1, coaxial x 1, TOS Link x 1

■Digital input: coaxial x 1, TOS Link x 1, HSLinkver.2 x 1, USB x 1　■Sampling frequency: HSLinkver.2 (32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz), OPTICAL (32kHz, 44.1kH z, 48kHz, 88.2kHz, 96kHz), USB (32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, (DCD 2.8224MHz, 5.6448MHz, 11.2896MHz)

■D/A converter: 4MDS+ type

■S/N ratio: 120dB

■Output level control: 0dB ～－80dB 1dB step (digital system)

■Frequency response: 0.5-50.000Hz

■Total harmonic distortion: 0.0006% (20－20.000Hz)

■Dynamic range: 117dB

■Channel separation: 117dB (20-20.000Hz)

■Power consumption: 18w

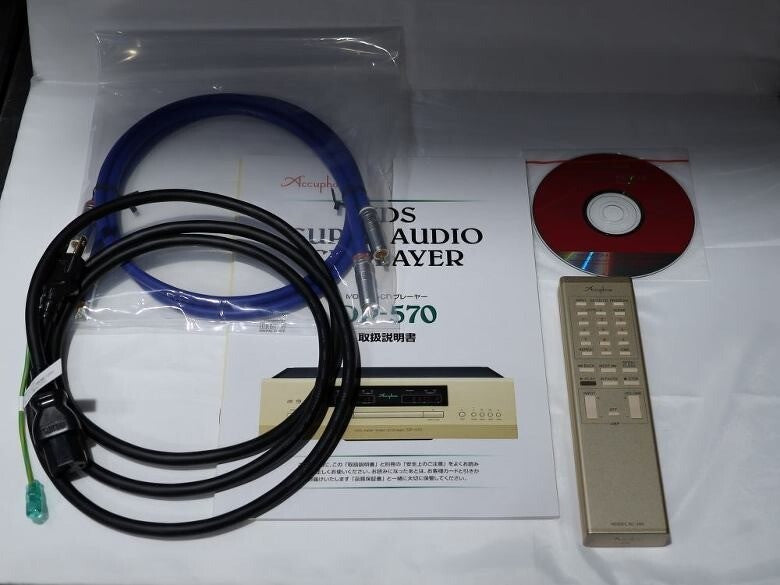

Accessories: Instruction manual, remote control, power cable, RCA cable, USB utility CD, original box included.

Size W(width): 465 mmH(height): 151 mmD(depth): 393 mm

Weight 19 kg
