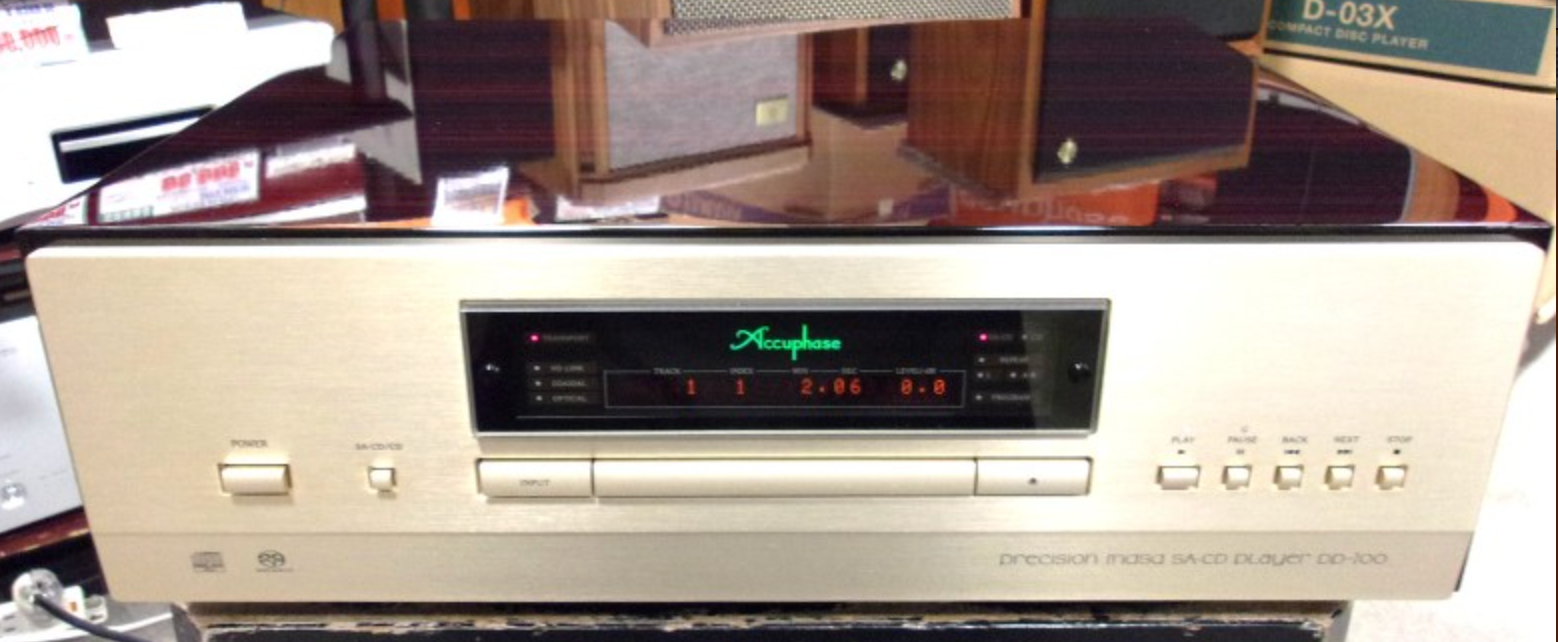

Accuphase DP-700 SACD Player

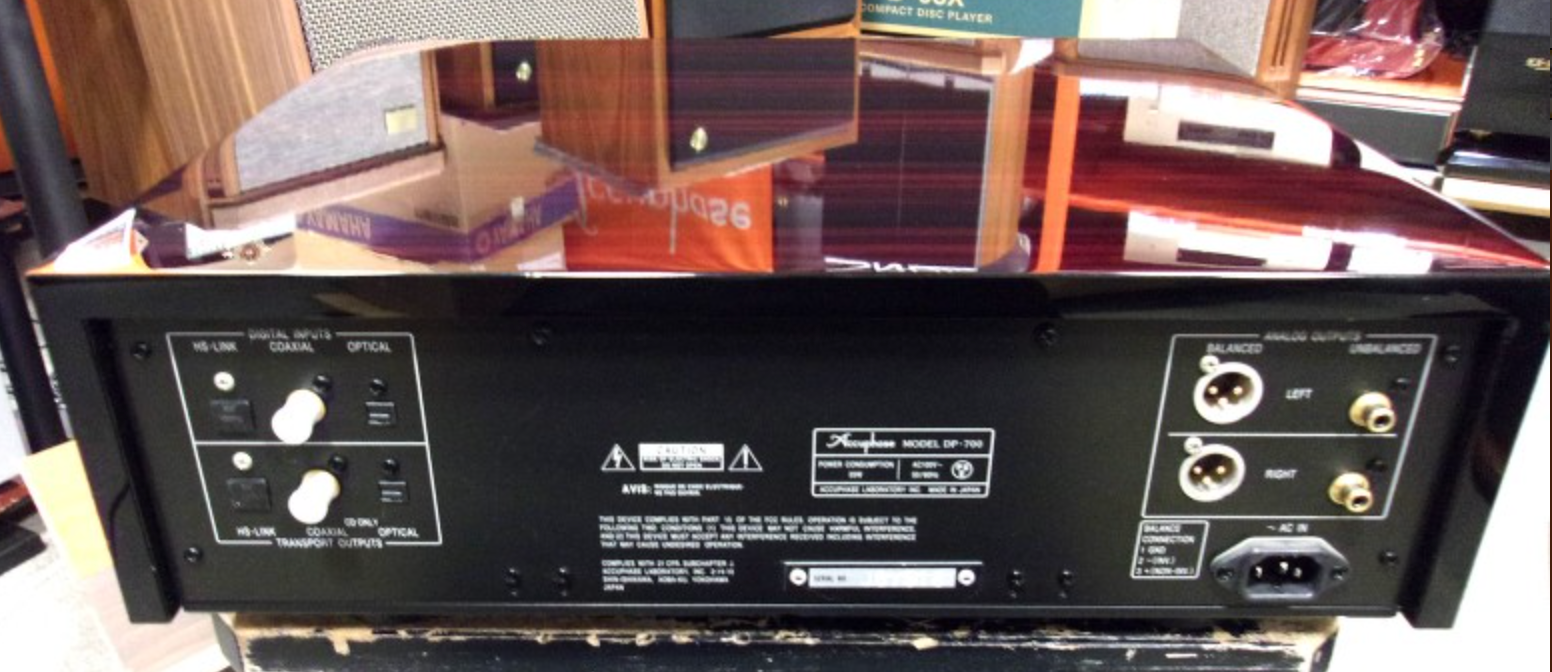

The input DSD is upsampled to 5.6448MHz/1bit, the DSD signal is delayed by one clock, converted by eight DACs, and each signal is added together in the "MDSD" method. Accuphase original drive mechanism is installed. Digital output is HS-LINK, coaxial digital, optical digital. Analog output is equipped with one each of balanced and unbalanced.

■Compatible discs: 2ch SACD, CD

■Reading method: Non-contact optical

■Laser diode emission wavelength: 650nm for SACD, 780nm for CD

■Sampling frequency: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz (16-24bit 2ch PCM each), [HS-Link only compatible 176.4kHz, 192kHz (24bit 2ch PCM each), 2.8224MHz (1bit 2ch DSD)]

■DA converter: MDSD method (DSD signal), MDS++ method (PCM signal) ■Frequency response: 0.5Hz to 50kHz +0, -3.0dB

■Total harmonic distortion + noise: 0.0008% (20Hz to 20kHz)

■S/N ratio: 114dB

■Dynamic range: 110dB (24bit input, LPF: OFF)

■Channel separation: 108dB (20Hz to 20kHz)

■Output voltage/output impedance: 2.5V/50Ω

■Output level control: 0dB to -80.0 dB (digital system)

■Power consumption: 35W

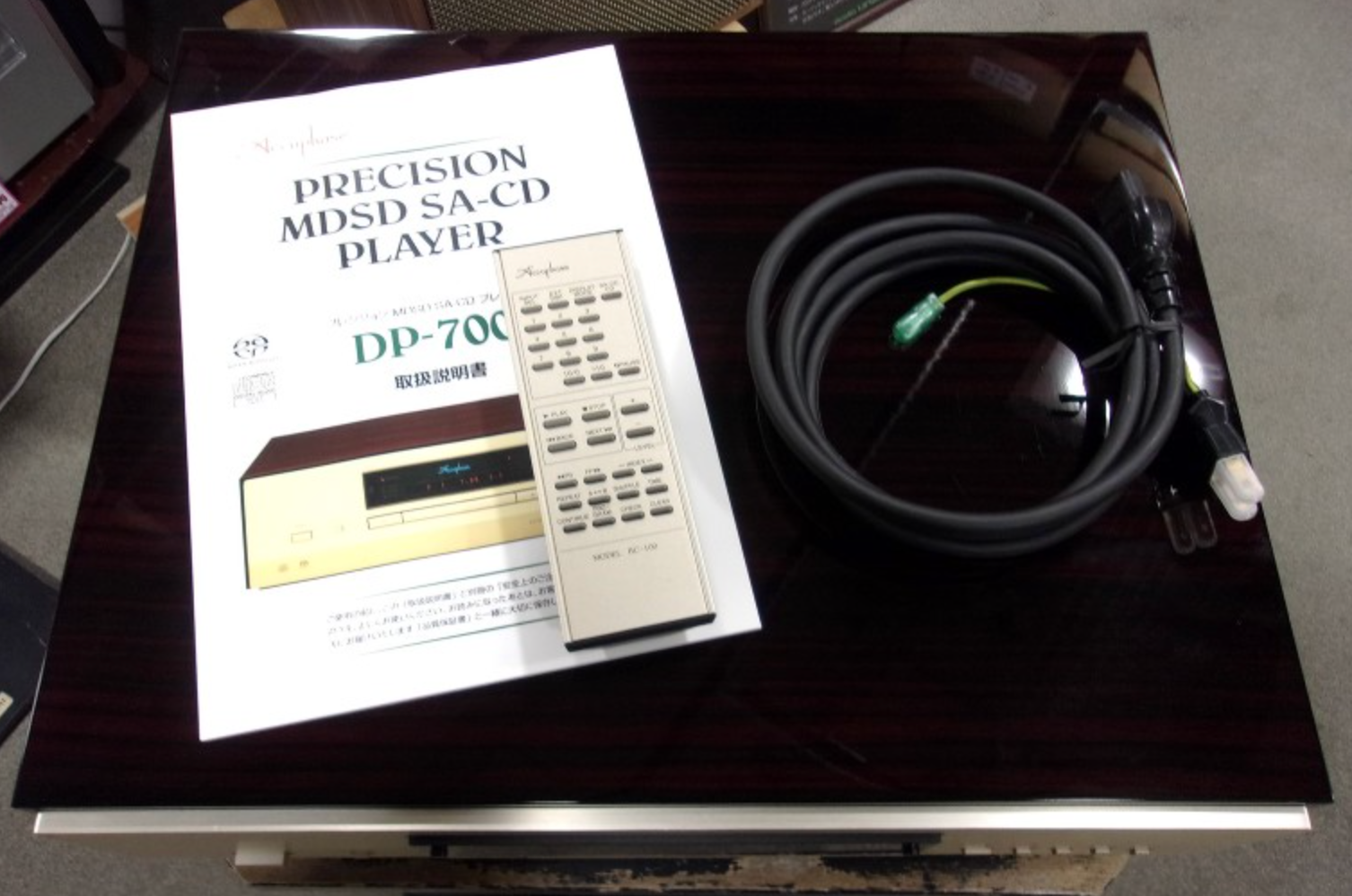

Accessories: Instruction manual, remote commander, power cable

Size: W (width): 477 mmH (height): 156 mmD (depth): 394 mm

Weight: 27 kg
