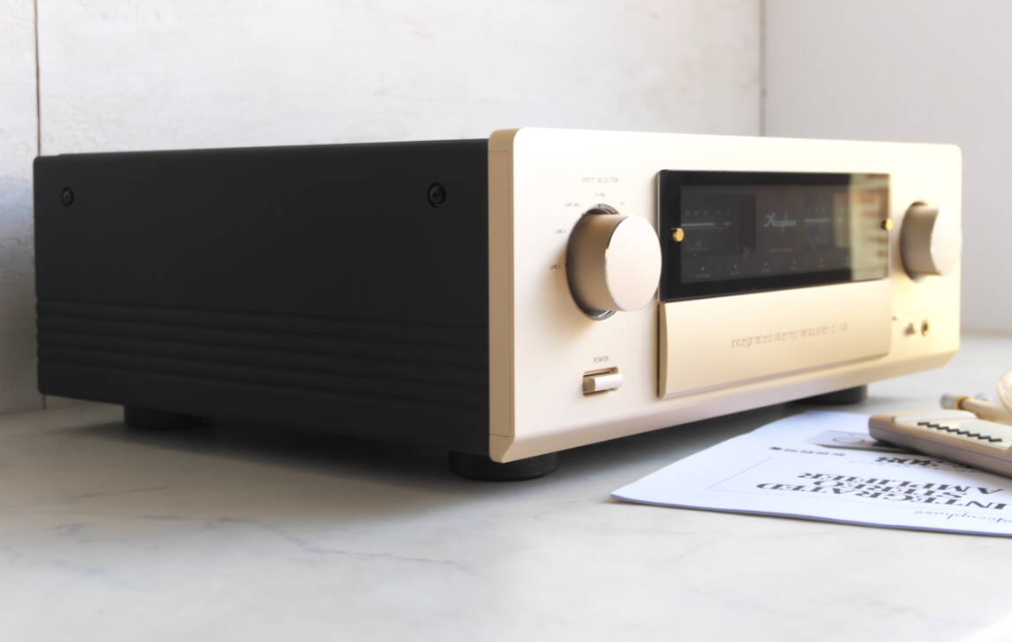

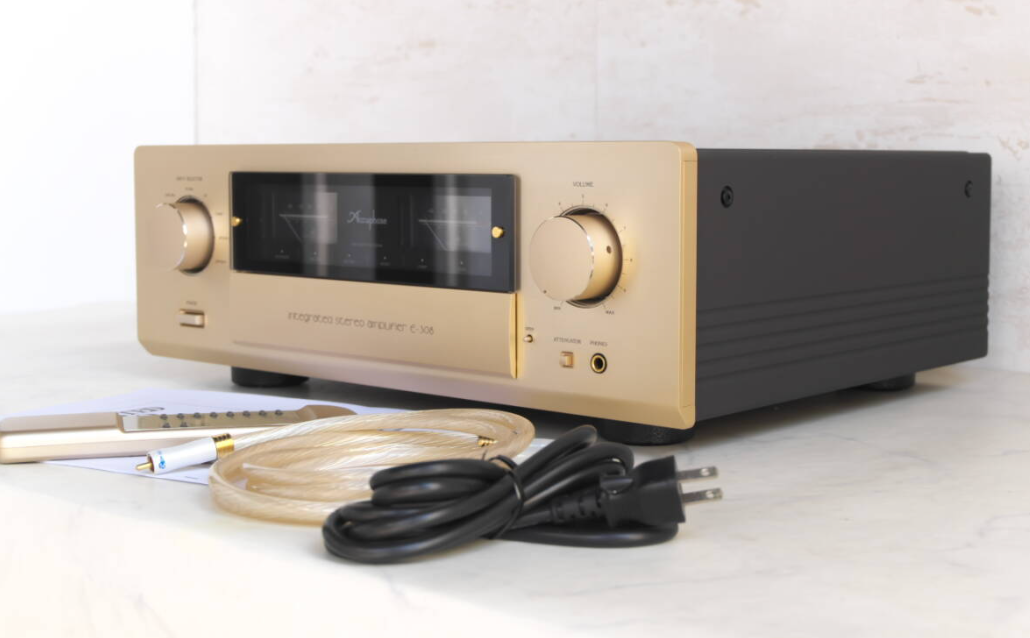

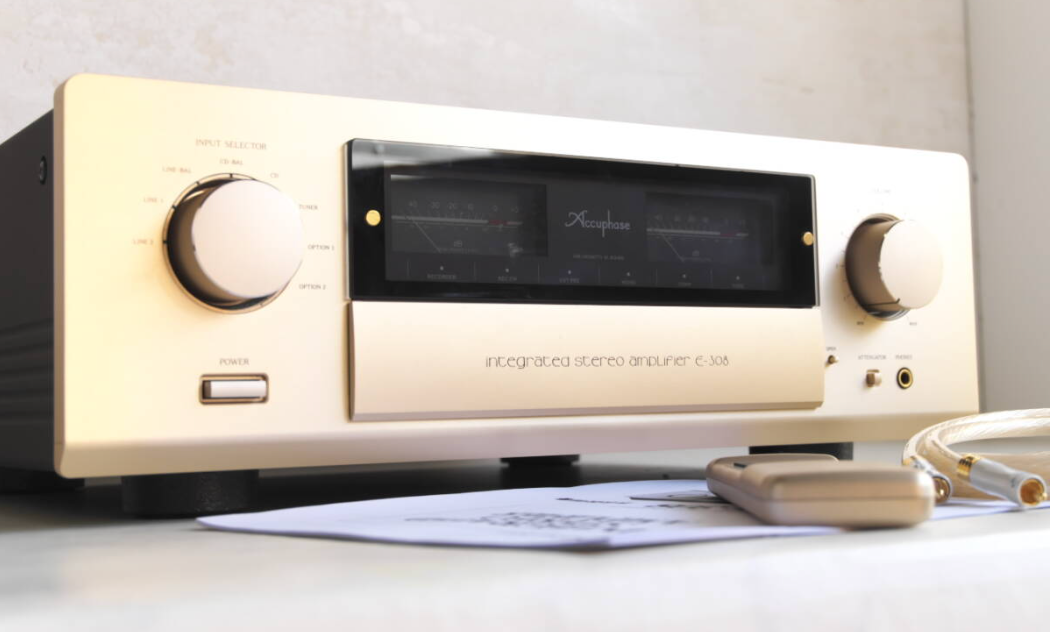

Accuphase E-308 Integrated Amplifier

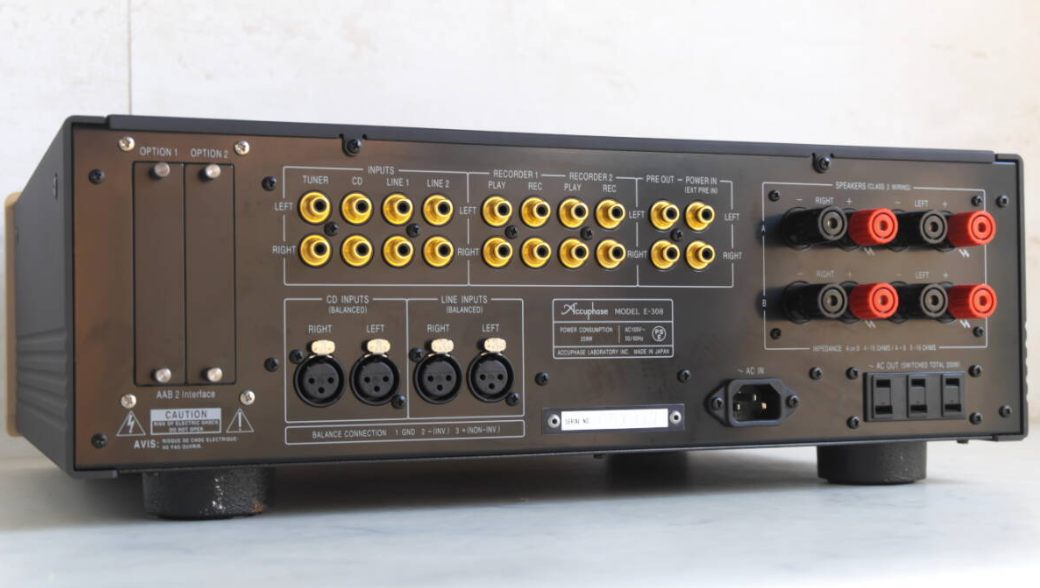

The E-308 separates the preamplifier and power amp sections in terms of both mechanism and circuitry, preventing interference between them and refining performance and sound quality. It is equipped with an "EXT PRE function" and dedicated input and output terminals, allowing each section to be used as an independent amplifier.

Both the preamplifier and power amp sections are equipped with MCS circuits to significantly improve the signal-to-noise ratio, and the parallel push-pull wideband output transistors and large power transformer deliver brilliant power born from deep silence.

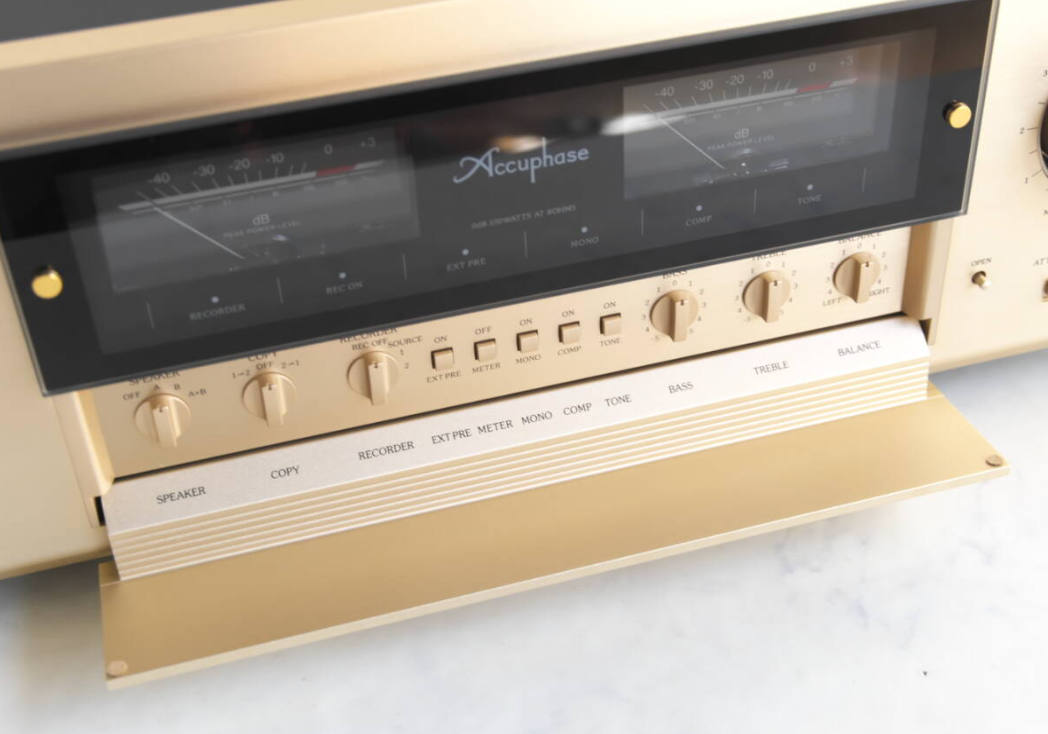

The preamplifier section is fully equipped with a variety of functions, including tone control and other sound quality adjustments and a recorder function, and an optional board is also available for enjoying high-grade CD playback and analog records via digital input.

・ Equipped with MCS circuit for both preamplifier and power amplifier

・ High quality power of 100W/8Ω×2 by parallel push-pull output stage

・ Current feedback amplifier circuit boasts excellent sound quality and stability

・ Shortest signal path by logic relay control circuit

・ Equipped with tone control circuit

・ Powerful power supply section by large transformer

・ Playback of analog records and digital inputs is possible by adding optional boards

SPEC

● Rated continuous average output (both channels operating simultaneously between 20 and 20,000Hz)

140W/ch 4Ω load

120W/ch 6Ω load

100W/ch 8Ω load

● Total harmonic distortion (both channels operating simultaneously between 20 and 20,000Hz)

0.03% 4Ω load

0.02% 6-16Ω load

● IM distortion 0.01%

● Frequency response HIGH LEVEL INPUT/MAIN INPUT

Rated continuous average output: 20 to 20,000Hz 0 -0.2dB

1W output: 2 to 150,000Hz 0 -3.0dB

●Damping factor 100 (8Ω load 50Hz)

●Output voltage/output impedance PRE OUTPUT 1.13V 50Ω (rated continuous output)

●Gain HIGH LEVEL INPUT → PRE OUTPUT: 20dB

MAIN INPUT → OUTPUT: 28dB

●Tone control Turnover frequency and variable range

Bass: 300Hz ±10dB (50Hz)

Treble: 3kHz ±10dB (20kHz)

●Loudness compensator +6dB (200Hz): At VOLUME -30dB

●Attenuator -20dB

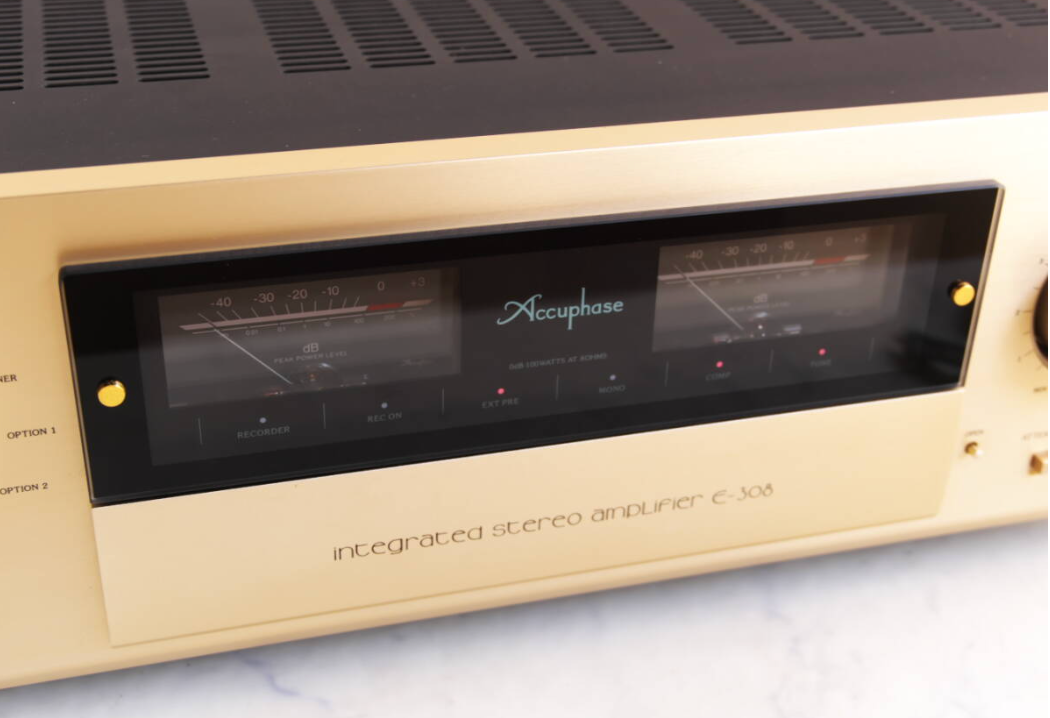

●Power meter Logarithmic compression type peak level display, dB/% output display

●Load impedance 4 to 16Ω

●Stereo headphones Compatible impedance 8 to 100Ω

●Power supply AC100V 50/60Hz

●Power consumption 46W no input

255W Electrical Appliance and Material Safety Act

383W 8Ω load rated output

●Maximum external dimensions Width 475mm x Height 170.6mm x Depth 423mm

●Weight 21.6kg
