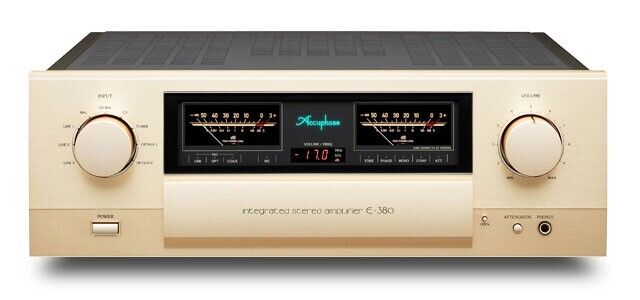

Accuphase E-380 Integrated Stereo Amplifier Gold AC100V 50/60Hz 292W NEW

The E-380, which has achieved a 20% increase in rated output by strengthening the power amplification section and power supply section, is equipped with an advanced ``AAVA'' volume control that adjusts the volume without sacrificing the freshness of the music signal. The power amplifier section uses an "instrumentation amplifier" to achieve a high signal-to-noise ratio. Furthermore, by lowering the impedance of the output circuit, we have achieved a damping factor of 500, bringing out the maximum potential of the speaker. Enjoy a performance full of clarity and dynamism.

●“AAVA” method volume control

●“Bipolar transistor” 2 parallel push-pull power amplification stage

●Rated output 180W/4Ω, 120W/8Ω

●Damping factor: 500

●Power amplifier section of instrumentation amplifier configuration

●Uses a current feedback amplification circuit in the power amplifier section

●Logic relay control

●Powerful power supply section with large high-efficiency power transformer and large-capacity filter capacitor

●“MOSFET switch” adopted for protection circuit

specification

Rated continuous average output (between 20 and 20,000Hz)

Both channels operate simultaneously 120W 8Ω load 180W/ch 4Ω load

Power supply AC100V 50/60Hz

Power consumption 46W when no input

292W Electrical Appliance and Material Safety Law

423W at 8Ω load rated output

Maximum external dimensions Width 465mm x Height 171mm x Depth 422mm

Mass 22.8kg
