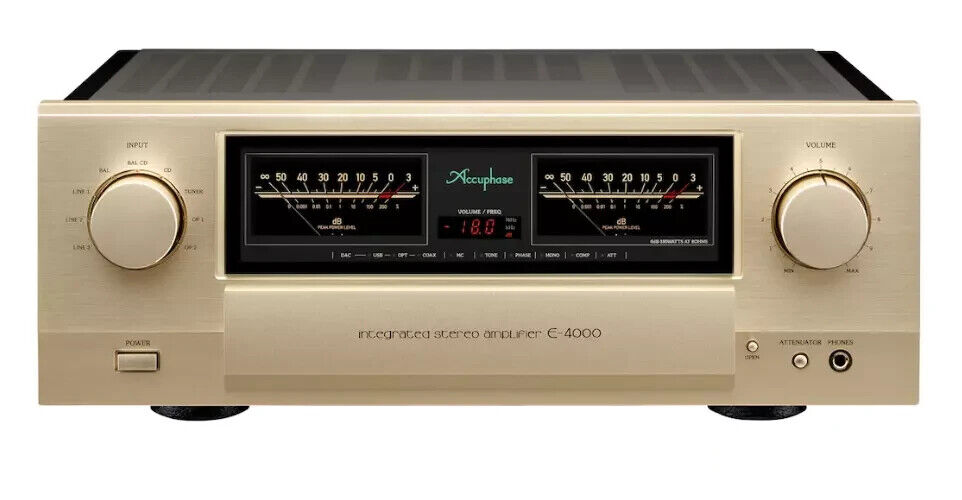

The E-4000 is an integrated amplifier that inherits the technology cultivated in separate amplifiers.

The preamplifier section is equipped with "AAVA" that uses "ANCC", and adjusts the volume with high freshness.

The power amplifier section uses an "instrumentation amplifier" that achieves balanced transmission and maximizes noise performance.

The E-4000, which has an output stage with "4 parallel push-pull class AB operation of power transistors", fully draws out the potential of the speakers and reproduces a fascinating sound stage.

Rated output (20Hz to 20kHz, 0.05%)

4Ω load 260W/ch

8Ω load 180W/ch

Total harmonic distortion (20Hz to 20kHz)

4 to 16Ω load 0.05%

IM distortion 0.01%

Frequency response

BALANCED INPUT/LINE INPUT

Rated output 20Hz to 20kHz (+0,-0.5dB)

MAIN IN

Rated output 20Hz to 20kHz (+0,-0.2dB)

MAIN IN

1W output 3Hz to 150kHz (+0,-3.0dB)

Damping factor

800

Input sensitivity/impedance

Input terminal Input sensitivity Input impedance

Rated output EIA (1W output)

BALANCED INPUT  190mV  14.2mV  40kΩ

LINE INPUT  190mV  14.2mV  20kΩ

MAIN IN (BAL)  1.51V  113mV  40kΩ

MAIN IN (LINE)  1.51V  113ｍV  20kΩ

Maximum input voltage

BALANCED INPUT   5.0V

LINE INPUT   5.0V

Output voltage and output impedance (rated output)

PRE OUTPUT BAL  1.51V 50Ω

PRE OUTPUT LINE  1.51V 50Ω

Gain

BALANCED INPUT → PRE OUTPUT 18dB

LINE INPUT → PRE OUTPUT  18dB

MAIN IN（BAL/LINE） → SPEAKER OUTPUT  28dB

Tone control

Turnover frequency and maximum change

Bass  300Hz　±10dB

Treble  3kHz　±10dB

Loudness compensator

+6dB(100Hz)

Attenuator

-20dB

Power supply

AC100V   50/60Hz

Power consumption

No input    54W

Electrical Appliance and Material Safety Law∗1    410W

8Ω load rated output    590W

Standby    0.3W

∗1:Power consumption under the Electrical Appliance and Material Safety Law is

The maximum load of the model (this unit) is 4Ω) and supplies "1/8 of the output just before clipping".

Maximum external dimensions

W465mm x H181mm x D428mm

Weight

24.4kg
