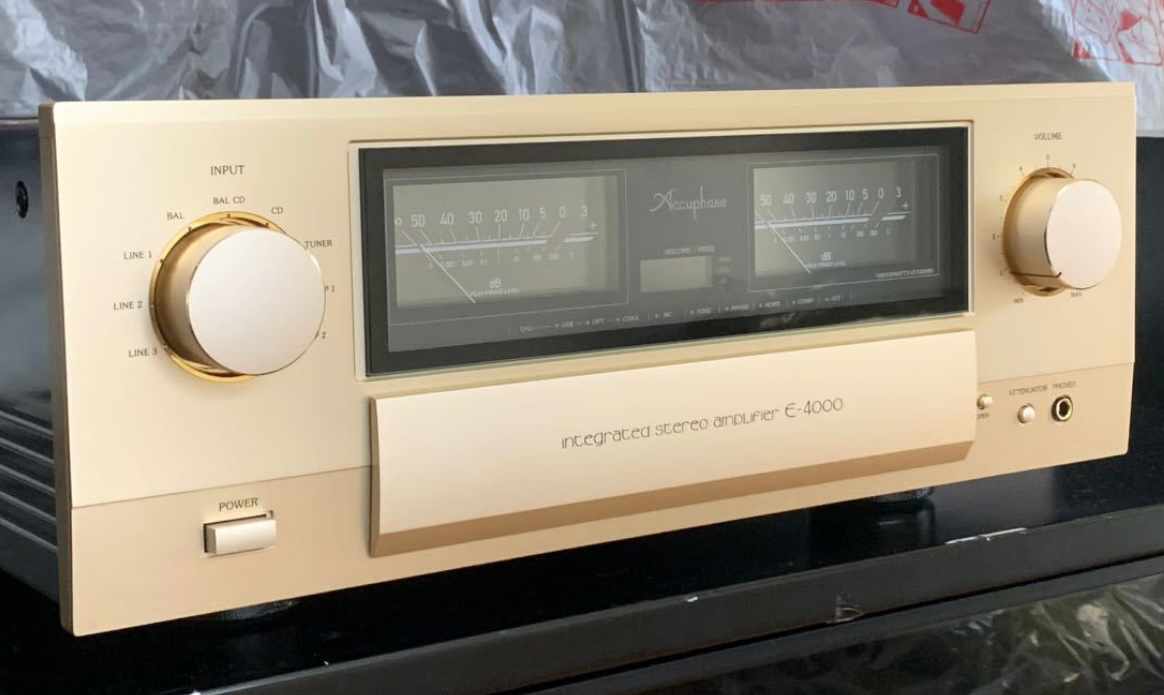

Accuphase E-4000 Integrated Amplifier AC100V NEW Pre
Accuphase E-4000 Integrated Amplifier AC100V NEW Pre
Regular price
$6,190.00 USD
Regular price
Sale price
$6,190.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Condition: New | Color: Gold |
| Audio Outputs: RCA,Stereo L/R RCA | Number of Outputs: 3 |
| Amplifier Class: AB | Brand: Accuphase |
| Type: Integrated Amplifier | Audio Inputs: Stereo L/R RCA |
| Unit Type: Unit | Number of Channels: 2 |
| Number of Inputs: 7 | Model: E-4000 |
| Features: Analog,Digital | Country/Region of Manufacture: Japan |
| Unit Quantity: 1 | Power: 180 W |
Description
Rated output (20-20kHz, 0.05%)
4Ω load 260W/ch
8Ω load 180W/ch
Total harmonic distortion rate (20-20kHz)
4~16Ω load 0.05%
IM strain rate
0.01%
Frequency characteristic
BALANCED INPUT / LINE INPUT
At rated output 20 ~ 20kHz(0,-0.5dB)
MAIN IN
At rated output 20 ~ 20kHz(0,-0.2dB)
3 ~ 150kHz(0,-3.0dB) at 1W output
Damping factor 800
Input sensitivity/input impedance
Input terminal Input sensitivity Input impedance
EIA at rated output (at 1W output)
BALANCED INPUT 190mV 14.2mV 40kΩ
LINE INPUT 190mV 14.2mV 20kΩ
MAIN IN(BAL) 1.51V 113mV 40kΩ
MAIN IN(LINE) 1.51V 113mV 20kΩ
Maximum input voltage
BALANCED INPUT:5.0V
LINE INPUT:5.0V
Output voltage/output impedance (at rated output)
PRE OUTPUT BAL:1.51V 50Ω
PRE OUTPUT LINE:1.51V 50Ω
gain
BALANCED INPUT→PRE OUTPUT:18dB
LINE INPUT→PRE OUTPUT:18dB
MAIN IN(BAL/LINE)→SPEAKER OUTPUT:28dB
tone control
Turnover frequency and maximum change
Low temperature: 300Hz ±10dB
High temperature: 3kHz ±10dB
loudness compensator
+6dB(100Hz)
attenuator
-20dB
S/N/input conversion noise
Input terminal Input short (A-correction) EIA S/N
S/N input conversion noise at rated output
BALANCED INPUT 102dB -116dBV 97dB
LINE INPUT 109dB -123dBV 97dB
MAIN IN(BAL/LINE) 125dB -121dBV 101dB
power meter
Logarithmic compression type peak level display
Output dB/% display
*Meter display with ON/OFF function
load impedance
1 pair of speakers: 4~16Ω
2 pairs of speakers: 8~16Ω
headphone terminal
Compatible impedance: 8Ω or more
power supply
AC100V 50/60Hz
power consumption
54W when no input
Electrical Appliance and Material Safety Law (*1) 410W
590W at 8Ω load rated output
Standby 0.3W
*1:
The power consumption according to the Electrical Appliance and Material Safety Law is the power value when supplying "1/8 of the output immediately before clipping" at the maximum load of 4 Ω.
Maximum external dimensions
Width 465mm x height 181mm x depth 428mm
mass
24.4kg
Attached remote commander RC-250
Remote control: Infrared pulse method
Power supply: DC3V, 2 AA batteries used
Maximum external dimensions: 50mm x 192.5mm x 20.5mm
Weight: 215g (including battery)
*Reserved Products
It takes about 1~2 months from the time of order.
