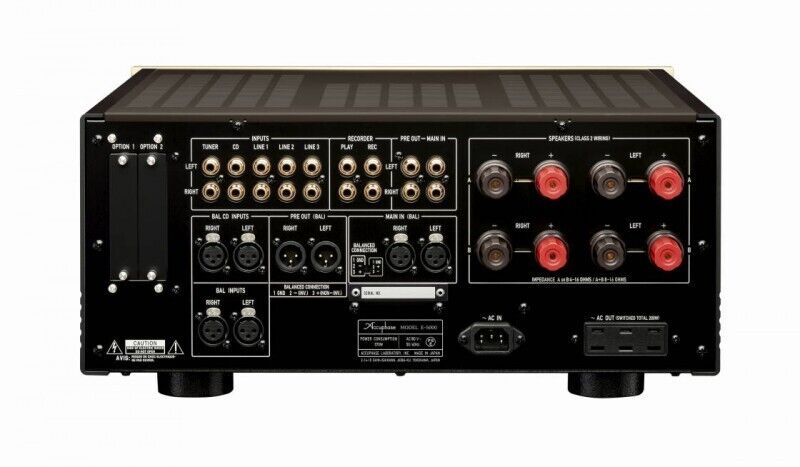

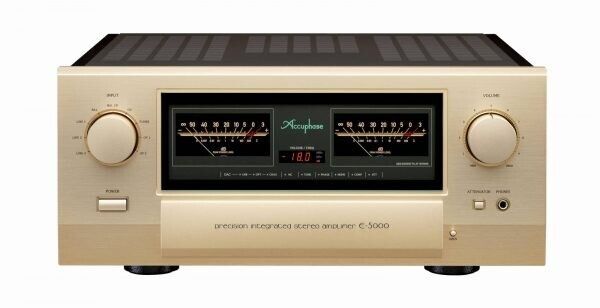

Accuphase E-5000 Integrated Amplifier

The fourth model to commemorate the 50th anniversary of the company's founding. This is the top model of an AB-class stereo integrated amplifier. The power supply section is equipped with a newly developed large-capacity toroidal transformer and a 40,000μF/100V smoothing aluminum electrolytic capacitor. The capacitor is a special custom specification with carefully selected materials and internal structure. The power amplifier section drives five power transistors in parallel. The preamplifier section is equipped with a fully balanced volume adjustment circuit called "Balanced AAVA". The input amplifier and I/V conversion amplifier are composed of discrete components, and the dedicated design takes advantage of the high degree of freedom to reduce noise. Equipped with slots that can accommodate two optional boards. The power cord "APL-1" and remote control "RC-250" are included.

■ Rated continuous average output: 320W/ch (4Ω), 240W/ch (8Ω)

■ Total harmonic distortion: 4-16Ω load 0.05%

■ IM distortion: 0.01%

■ Frequency response: MAIN IN: Rated continuous average output 20Hz-20kHz -0.2dB, 1W output 3Hz-150kHz -3.0dB, HIGH LEVEL INPUT: Rated continuous average output 20Hz-20kHz -0.5dB

■ Damping factor: 1000 (8Ω 50Hz)

■ Load impedance: 1 pair of speakers 4-16Ω 2 pairs of speakers 8-16Ω

■ Output voltage/output impedance: PRE OUTPUT, LINE: 1.74V/50Ω, BAL: 1.74V/50Ω

■ Gain: HIGH LEVEL INPUT→PREOUTPUT: 18dB, MAIN IN→OUT PUT: 28dB

■Tone control: Bass 300Hz/+-10dB, Treble 3KHz/+-10dB

■Loudness control: +6dB (100Hz)

■Attenuator: -20dB

■Power consumption: 98W (no signal), 570W (Electrical Appliance and Material Safety Act), 796W (8Ω load rated output), 0.3W (standby)

■Accessories: Instruction manual, remote control (RC-250), power cable, AD-50

Size W (width): 465 mmH (height): 211 mmD (depth): 502 mm

Weight 33.8 kg
