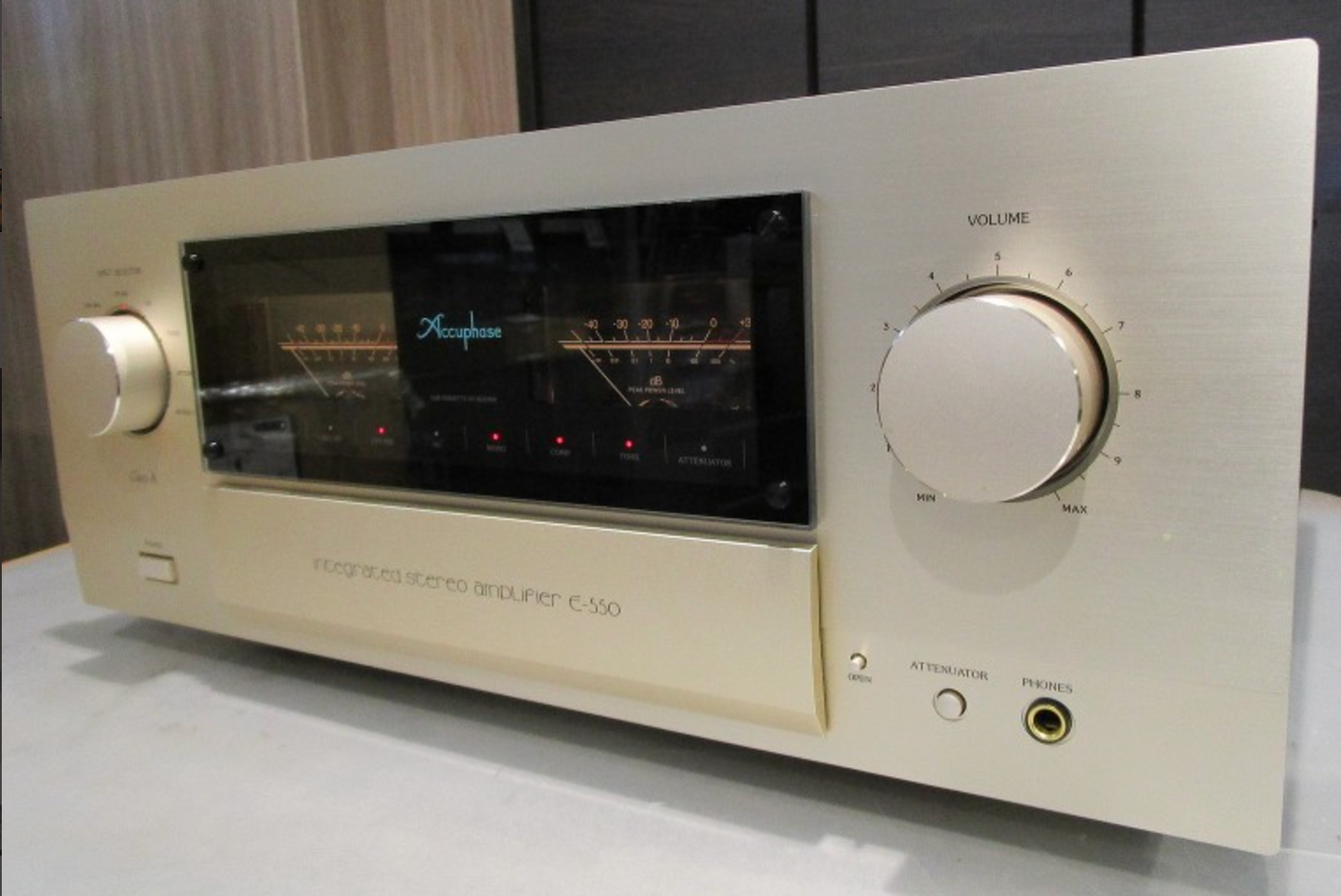

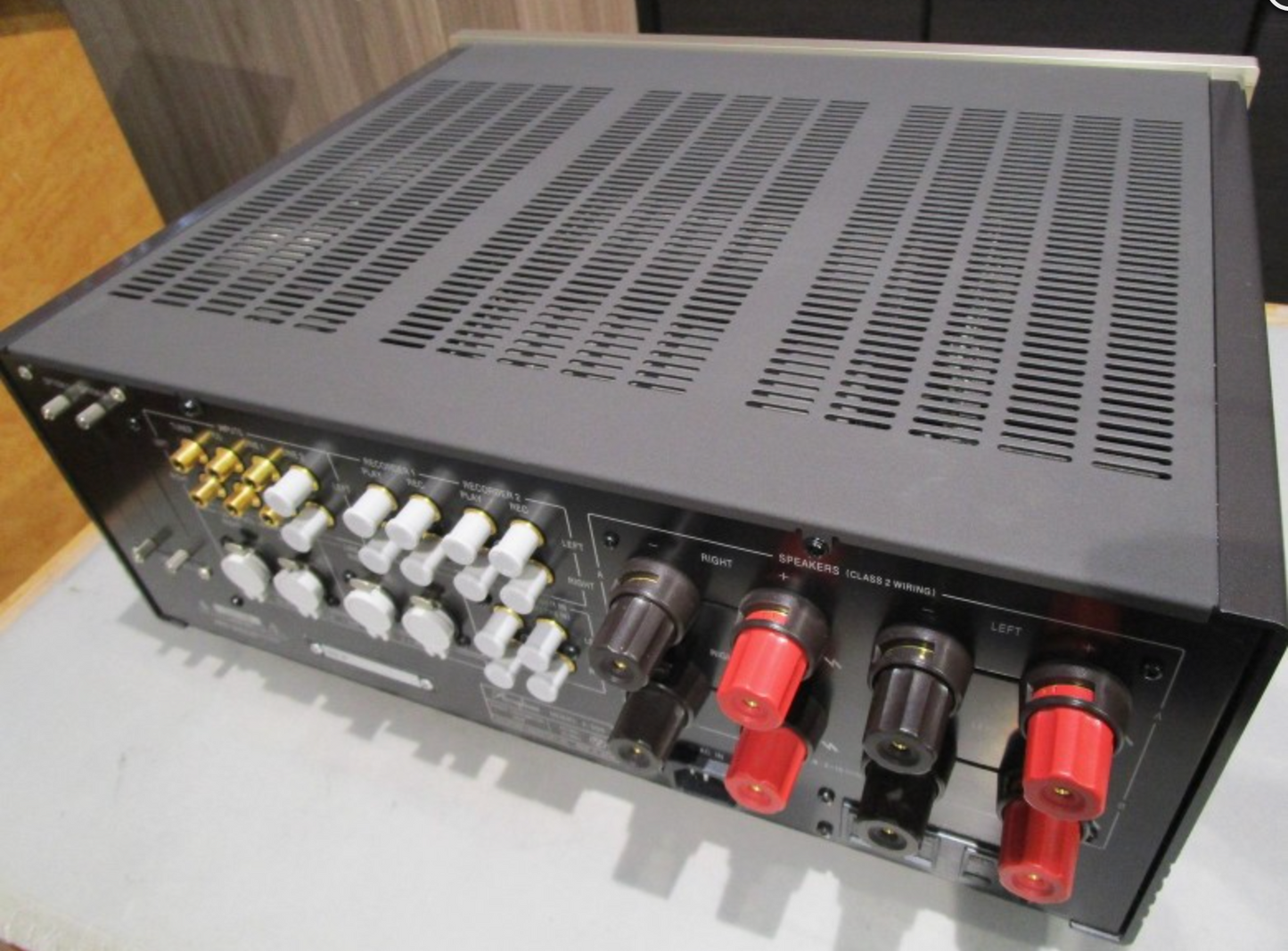

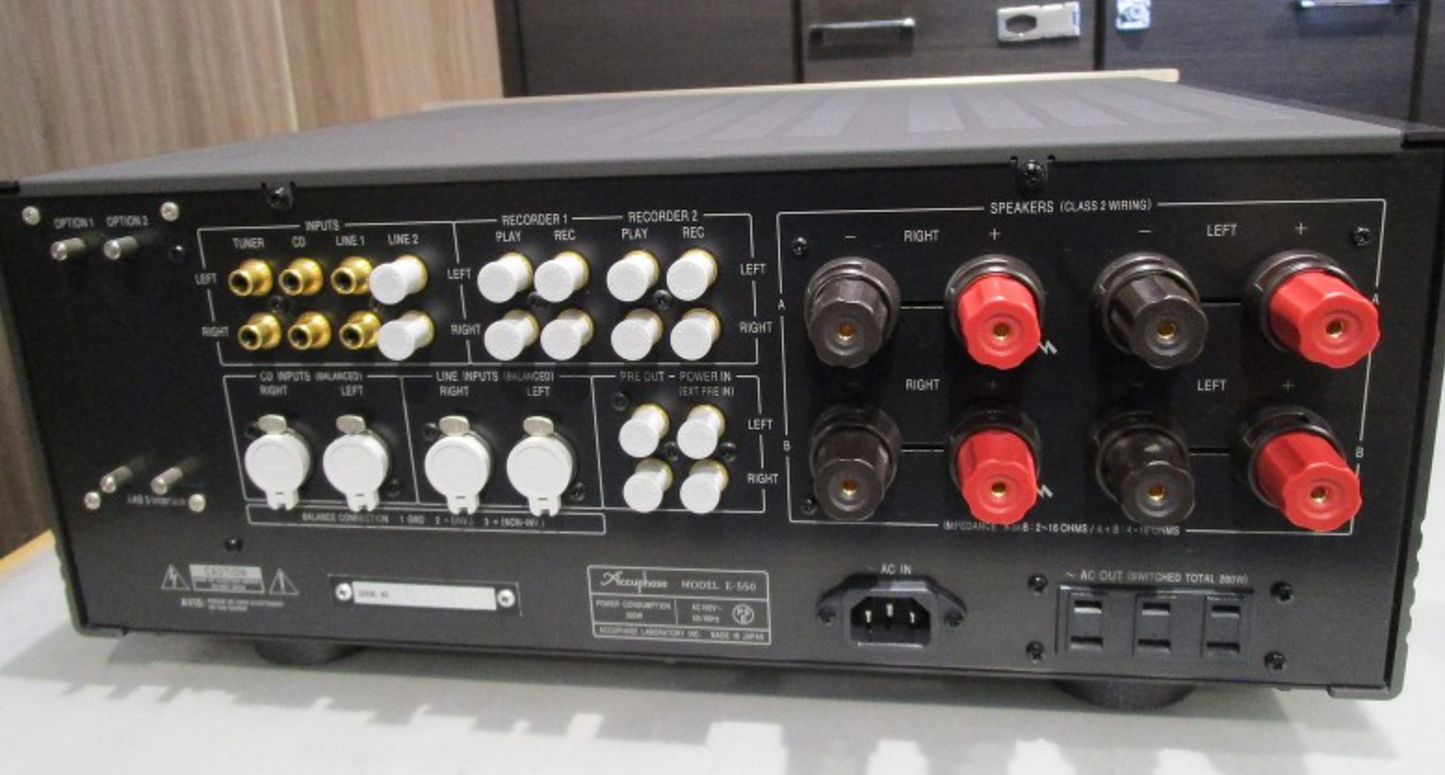

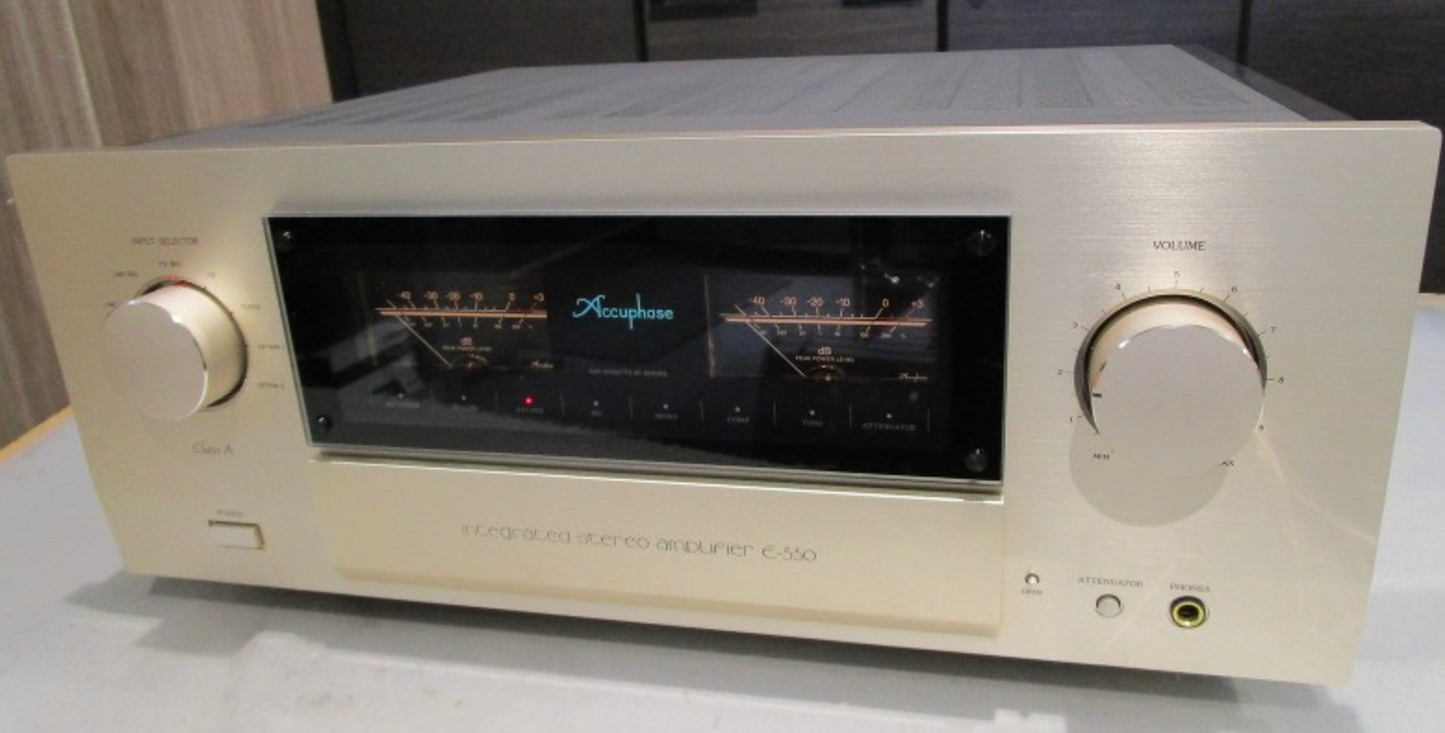

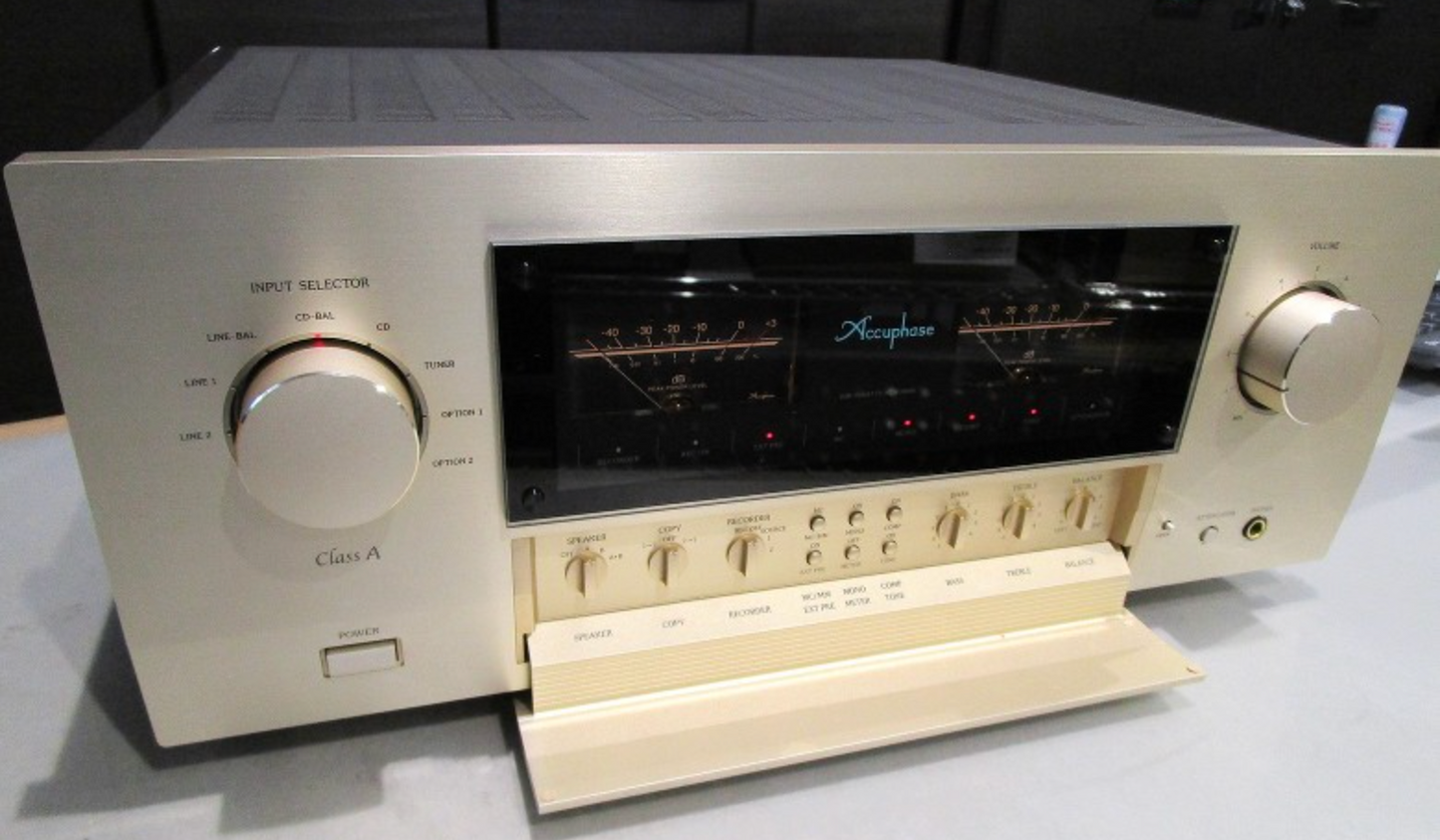

Accuphase E-550 Integrated Amplifier

The E-530, which attracted much attention as Accuphase's first "pure Class A integrated amplifier" and was highly praised for its excellent performance and sound quality, has been fully redesigned and born as a top-of-the-line integrated amplifier.

The E-550 incorporates the latest technology and the highest-grade materials, and is the first integrated amplifier to feature the revolutionary "AAVA volume control." By increasing the integration density of AAVA circuits and components, we have solved the capacity problem and succeeded in achieving the same basic performance as the conventional AAVA.

The power amplifier section uses power MOS FETs with attractive tones as output elements, and is driven by 3-parallel push-pull pure Class A operation, pursuing thorough "low impedance" of the amplifier output and "constant voltage drive" of the speakers.

The power supply section uses a 430VA high-power capacity toroidal transformer, and the output power is 120W/2Ω, 60W/4Ω, and 30W/8Ω per channel, allowing you to obtain linear output values ​​in response to changes in load impedance.

Rated continuous average output (both channels operating, 20Hz to 20kHz) 150W/ch (1Ω, music signal only)

120W/ch (2Ω)

60W/ch (4Ω)

40W/ch (6Ω)

30W/ch (8Ω)

Total harmonic distortion (both channels operating, 20Hz to 20kHz) 0.05% (2Ω load)

0.02% (4Ω to 16Ω load)

IM distortion 0.01%

Frequency characteristics High Level input/Power input:

20Hz to 20kHz +0 -0.2dB (rated continuous average output)

2Hz to 150kHz +0 -3.0dB (1W output)

Damping factor 140 (8Ω load, 50Hz)

Input sensitivity (rated output/EIA 1W output)/Impedance High Level input:77.7mV/14.2mV/20kΩ

Balanced input:77.7mV/14.2mV/40kΩ

Main input:0.617V/113mV/20kΩ

Output level/impedance Pre output:0.617V/50Ω(rated continuous output)

Gain High Level input - Pre output:18dB

Power input - output:28dB

S/N Input shorted (A-weighted) rated output/EIA

High Level input:98dB/103dB

Balanced input:92dB/103dB

Power input:120dB/117dB

Equivalent input noise (input shorted, A-weighted) High Level input:-120dBV

Balanced input:-114dBV

Power input:-124dBV

Tone control Bass: ±10dB (50Hz), turnover frequency 300Hz

Treble: ±10dB (20kHz), turnover frequency 3kHz

Loudness compensator +6dB (100Hz)

Attenuator -20dB

Power meter Logarithmic compression type peak level display, dB/% display of output

Load impedance 2Ω to 16Ω

Headphone jack Compatible impedance: 8Ω to 100Ω

Power supply AC100V, 50Hz/60Hz

Power consumption 200W (no input)

300W (Electrical Appliance and Material Control Law)

225W (8Ω load rated output)

Maximum external dimensions Width 465 x Height 196 x Depth 427mm

Weight 23.9kg

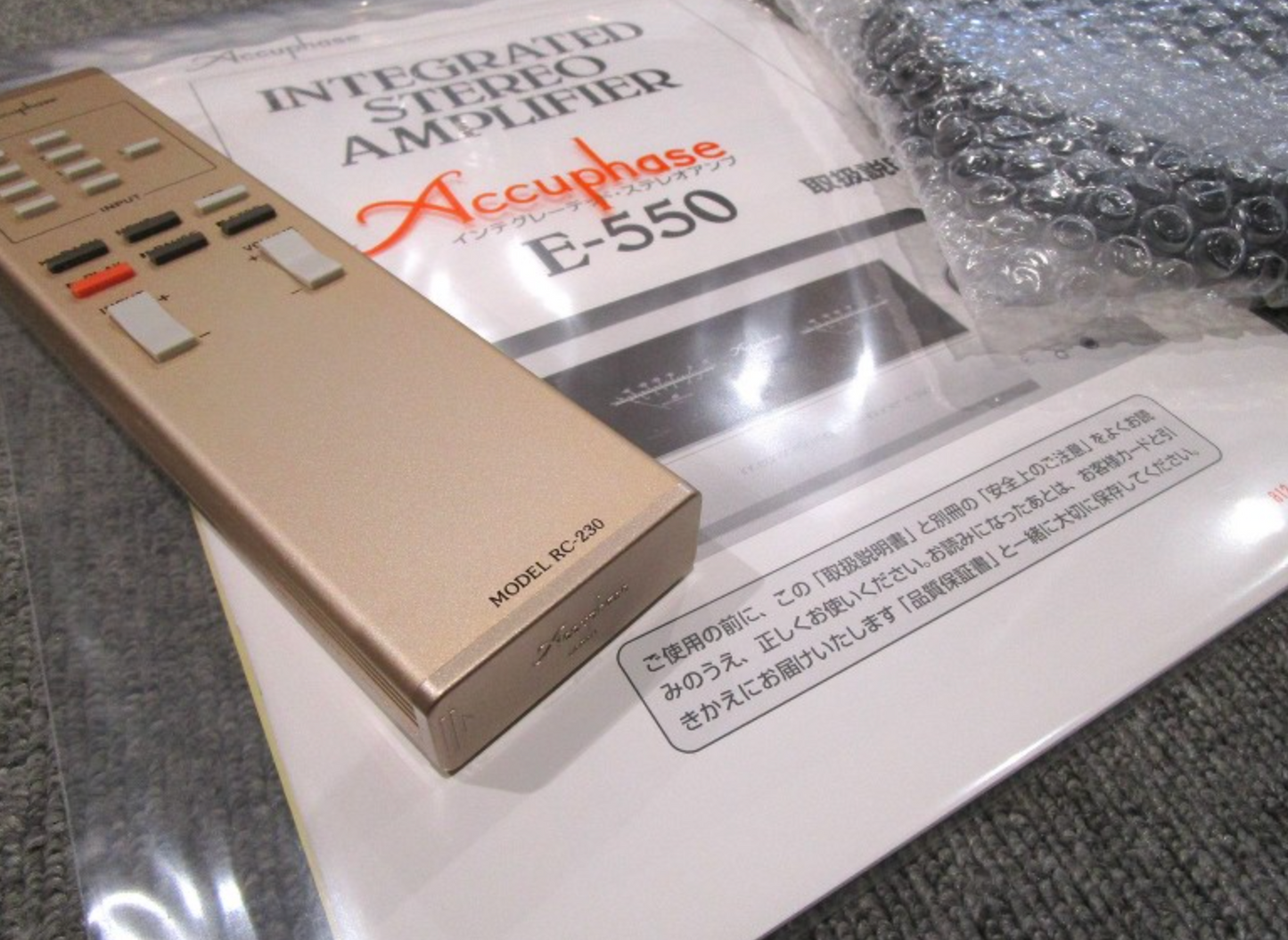

Included Instruction manual, remote control, and power cable are new. The original remote control RC-200 is complete, so it is a replacement RC-230. No original box.
