Accuphase E-650 Integrated Amplifier

The E-650 is the first integrated amplifier to feature the Balanced AAVA volume control found in the top-of-the-line preamp C-3850 model. The Balanced AAVA technology, which is less susceptible to external noise, has significantly improved electrical characteristics. The power amplifier section uses an instrumentation amplifier to achieve balanced transmission, resulting in an integrated amplifier with a balanced preamp and power amplifier section. The output element uses a power MOSFET with 3 parallel push-pull pure class A operation. The powerful power supply and thorough "low impedance" of the output circuit achieve an output of 150W/ch (1Ω, music signal only) and a damping factor of 800. The E-650 is a pure class A integrated amplifier equipped with an ideal circuit, delivering a rich and deep world of music.

■High-rigidity "volume sensor mechanism" machined from an aluminum block with a thick brass shaft. Pure class A operation with 3 parallel push-pull power MOSFETs. Guaranteed linear power of 120W/2Ω, 60W/4Ω, 30W/8Ω per channel.

■Uses a semiconductor (MOSFET) switch for protection. No contact failure, excellent long-term reliability, and further improved sound quality because the music signal does not pass through mechanical contacts.

■ Rated continuous average output: 150W/ch (1Ω), 120W/ch (2Ω), 60W/ch (4Ω), 30W/ch (8Ω)

■ Total harmonic distortion: 0.05% 2Ω load, 0.03% 4-16Ω load

■ IM distortion: 0.01%

■ Frequency response: MAIN IN: 20Hz-20kHz -0.2dB at rated continuous average output, 3Hz-150kHz -3.0dB at 1W output, HIGH LEVEL INPUT: 20Hz-20kHz -0.5dB at rated continuous average output

■ Damping factor: 800 (8Ω 50Hz)

■ Load impedance: 2-16Ω

■ Output voltage/output impedance: PRE OUTPUT, LINE: 0.617V/50Ω, BAL: 0.617V/50Ω

■ Gain: HIGH LEVEL INPUT→PREOUTPUT: 18dB, MAIN IN→OUT PUT: 28dB

■Tone control: Bass 300Hz/+-10dB, Treble 3KHz/+-10dB Loudness control: +6dB (100Hz)

■Atenuator: -20dB

■Power consumption: 168W (no signal), 290W (Electrical Appliance and Material Safety Act)

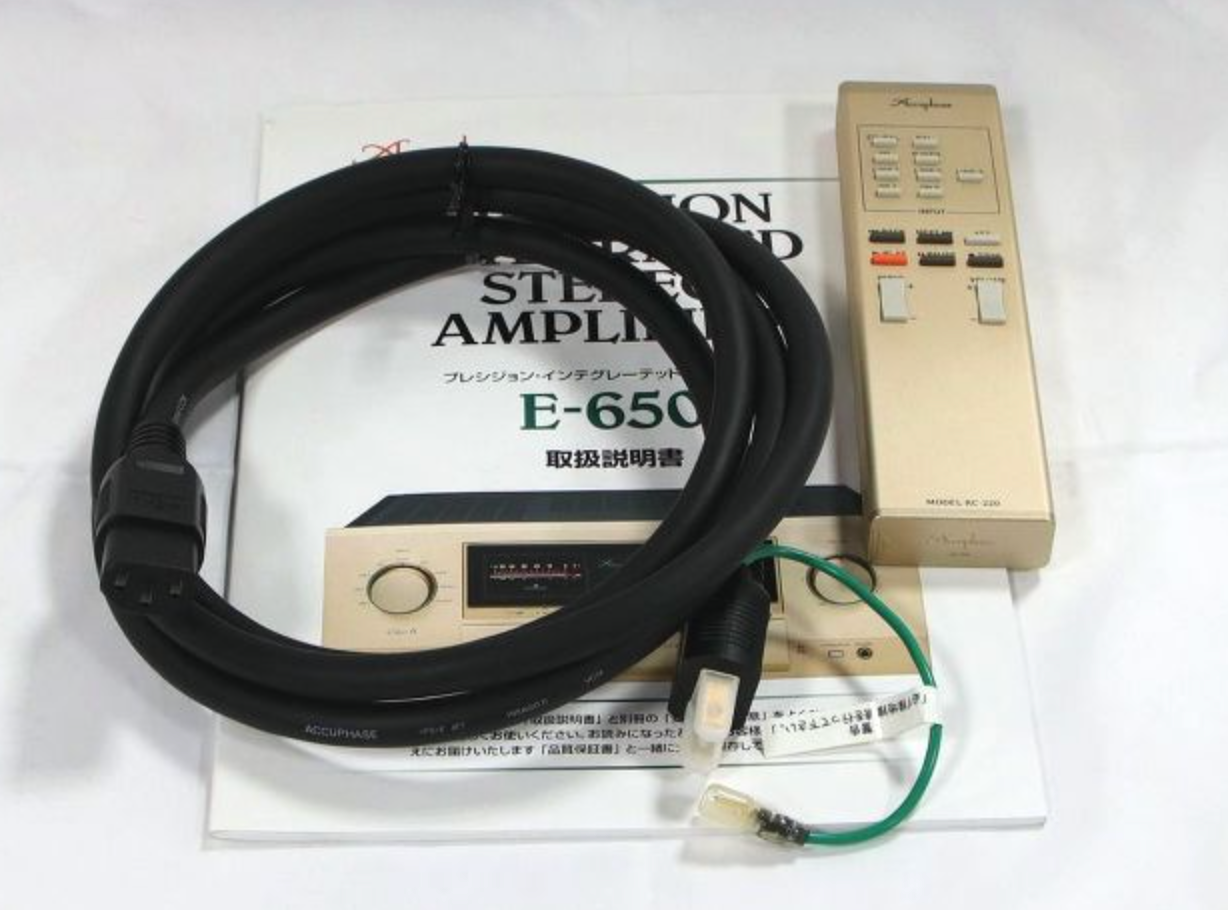

■Accessories: Instruction manual, remote control, AC cable, original box

Size W (width): 465 mm H (height): 191 mm D (depth): 428 mm

Weight 25.3 kg
