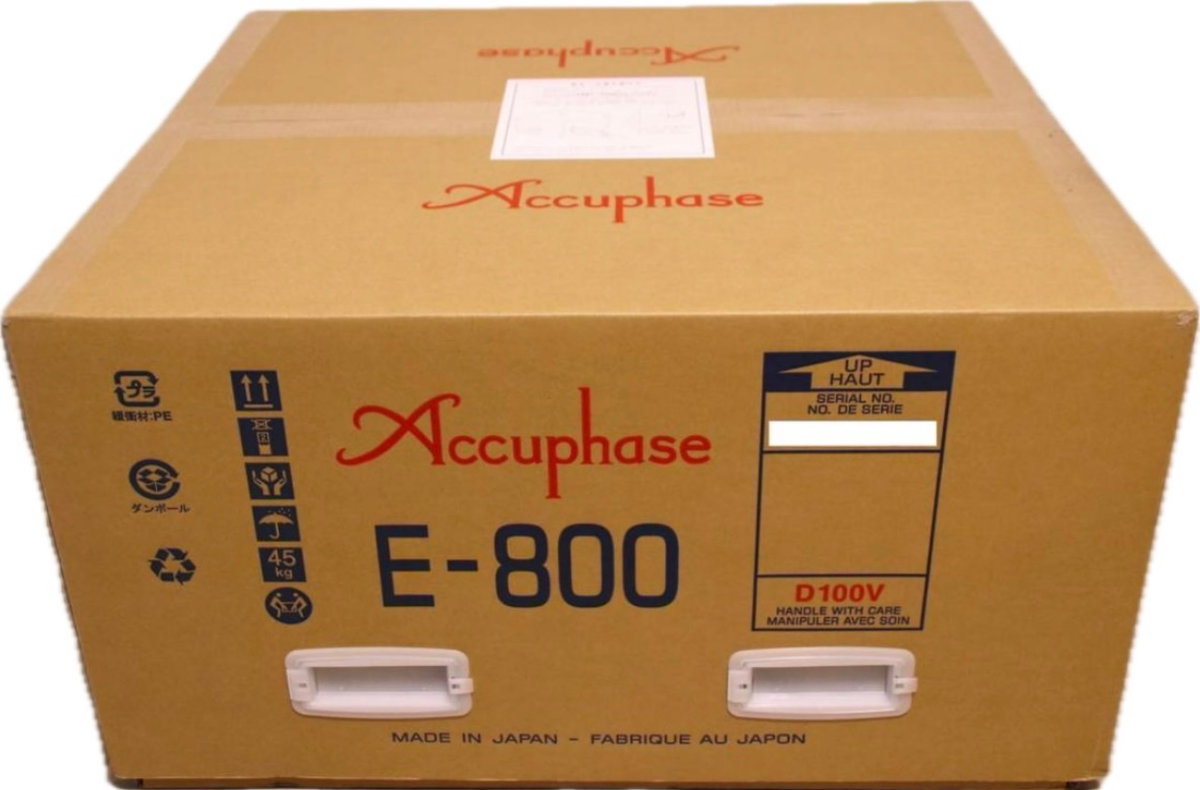

Accuphase E-800 Integrated Amplifier 50th anniversary model 100V NEW

50th anniversary model first edition

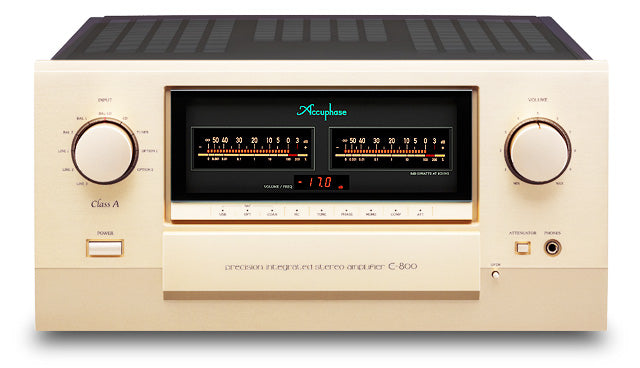

New flagship model of integrated amplifier

Accuphase was founded in 1972. We are developing ambitious products for the upcoming half-century milestone. The E-800 is a new flagship model of an integrated amplifier that is equivalent to the higher-end model of the E-650. The preamp section is equipped with the optimized "Balanced AAVA" volume control adopted in the C-3850. The power amplifier section uses an "instrumentation amplifier" and "power MOSFET" with 6 parallel push-pull class A operation. The E-800 achieves quality comparable to a full-fledged separate amplifier.

●“Power MOSFET” 6 parallel push-pull pure class A operation

●Achieves linear power of 50W/8Ω, 100W/4Ω, 200W/2Ω and output of 300W/1Ω (music signal)

●The volume control is equipped with the "Balanced AAVA" circuit adopted in the C-3850.

●High precision and high rigidity "volume sensor mechanism"

●Power supply circuit equipped with a large high-efficiency toroidal transformer and two large-capacity 60,000μF filter capacitors

●Uses "balanced remote sensing" and "MOSFET switch". Achieved damping factor of 1,000

●Preamplifier section and power amplifier section can be separated

●Powerful power supply section with large high-efficiency power transformer and large-capacity filter capacitor

●Pre part and power part can be separated

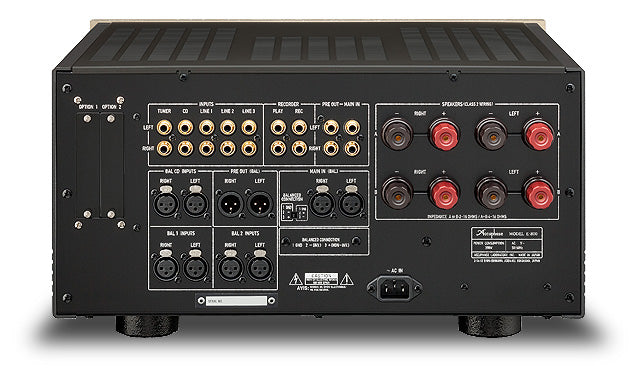

●Equipped with 3 balanced inputs and 5 line inputs

●Speaker output protection circuit to prevent short-circuit accidents

●Equipped with slots that can insert two option boards

●Play high-resolution sound sources from digital devices using the digital input board “DAC-50” (sold separately)

●Play analog records using the analog disc input board “AD-50” (sold separately)

■Rated continuous average output: 300W/ch (1Ω) (limited to music signals), 200W/ch (2Ω), 100W/ch (4Ω), 50W/ch (8Ω) ■Total harmonic distortion rate: 0.05% 2Ω load , 0.03% 4 to 16Ω load ■ IM distortion rate: 0.01% ■ Frequency characteristics: MAIN IN: Rated continuous average output 20Hz to 20kHz -0.2dB, 1W output 3Hz to 150kHz -3.0dB, HIGH LEVEL INPUT: Rated continuous average At output 20Hz to 20kHz -0.5dB ■Damping factor: 1000 (8Ω 50Hz) ■Load impedance: 2 to 16Ω ■Output voltage/output impedance: PRE OUTPUT, LINE: 796mV/50Ω, BAL: 796mV/50Ω ■Gain: HIGH LEVEL INPUT→PREOUTPUT: 18dB, MAIN IN→OUT PUT: 28dB ■Tone control: Bass 300Hz/+-10dB, Treble 3KHz/+-10dB ■Loudness control: +6dB (100Hz) ■Attenuator: -20dB ■Power consumption: 180W ( (No signal), 390W (Electrical Appliance and Material Safety Act), 280W (8Ω load rated output) ■Accessories: Instruction manual (Japanese), remote control (RC-240), power cable (APL-1)

size

W (width): 465 mmH (height): 239 mmD (depth): 502 mm

Weight 36 kg
