Accuphase P-3000 Power Amplifier
Accuphase P-3000 Power Amplifier
Regular price
$2,810.00 USD
Regular price
Sale price
$2,810.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Condition: Used | Brand: Accuphase |
Type: Power Amplifier | Unit Type: Unit |
Color: Gold | Model: Accuphase P-3000 |
Country/Region of Manufacture: Japan | Unit Quantity: 1 |
Description
●A 3-parallel push-pull output stage on each channel provides linear high power even to low impedance loads●The signal path uses an instrumentation amplifier method●Equipped with an advanced MCS+ circuit●Upgraded to a monophonic amplifier by bridge connection●Equipped with a large super ring toroidal transformer of approximately 700VA●4-stage gain control possible
●Rated continuous average output (between 20 and 20,000Hz) Note: Loads marked with an asterisk are limited to music signals.
In stereo mode 400W/ch 1Ω load (※)
300W/ch 2Ω load
150W/ch 4Ω load
75W/ch 8Ω load
In monophonic mode 800W 2Ω load (※)
600W 4Ω load
300W 8Ω load
●Total harmonic distortion In stereo mode (both channels operating simultaneously)
0.05% 2Ω load
0.02% 4-16Ω load
In monophonic mode (bridged connection)
0.02% 4-16Ω load
●IM distortion 0.005%
●Frequency response At rated continuous average output: 20- 20,000Hz +0 -0.2dB At 1W output: 0.5-160,000Hz +0 -3.0dB
●Gain 28.0dB (GAIN switch: MAX)
●Gain switching MAX, -3dB, -6dB, -12dB
●Load impedance Stereo mode 2-16Ω
Monophonic mode 4-16Ω
●Input sensitivity (8Ω load) Stereo mode 0.98V at rated continuous average output
0.11V at 1W output
Monophonic mode 1.95V at rated continuous average output
0.11V at 1W output
●Input impedance 40kΩ (balanced), 20kΩ (unbalanced)
●Damping factor 150
●S/N ratio (A-weighted, input short) 120dB GAIN switch MAX
125dB GAIN switch -12dB

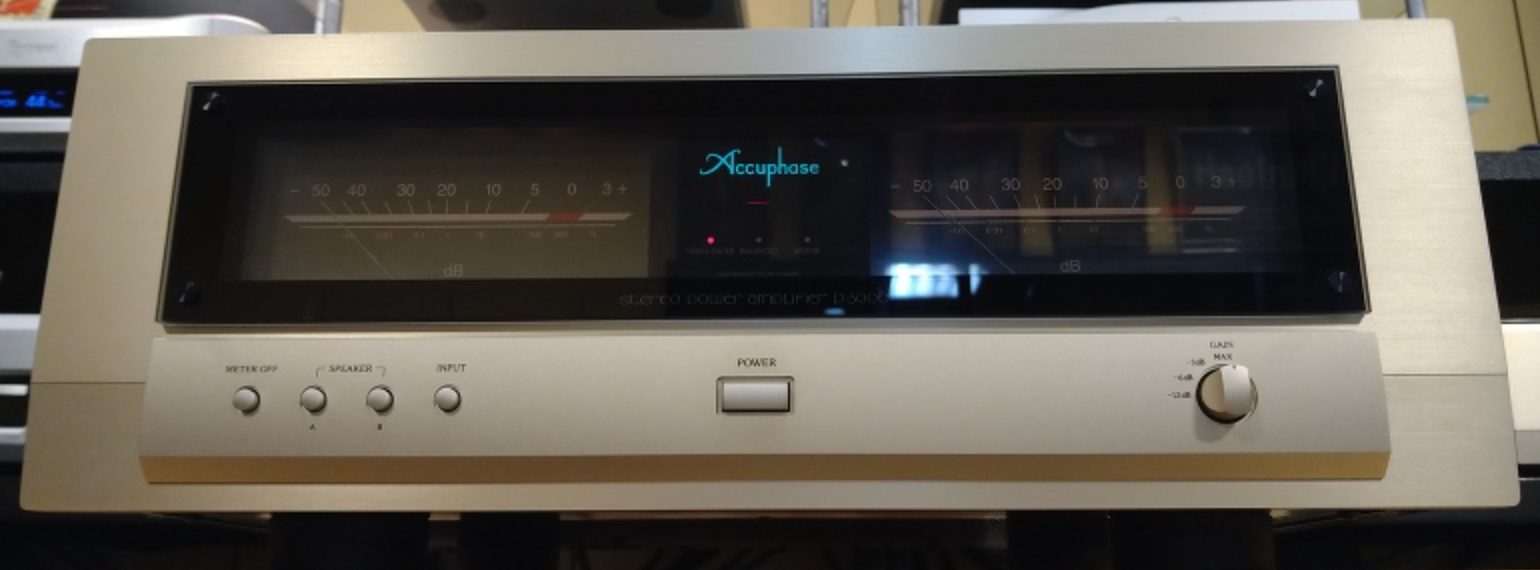

●Output meter Logarithmic compression type, with display off function
-50dB ~ +3dB (dB/%)
●Power supply AC100V 50/60Hz
●Power consumption 55W without input
480W Electrical Appliance and Material Safety Act
335W 8Ω load rated output
●Maximum external dimensions Width 465mm x Height 180mm x Depth 425mm
●Weight 24.0kg

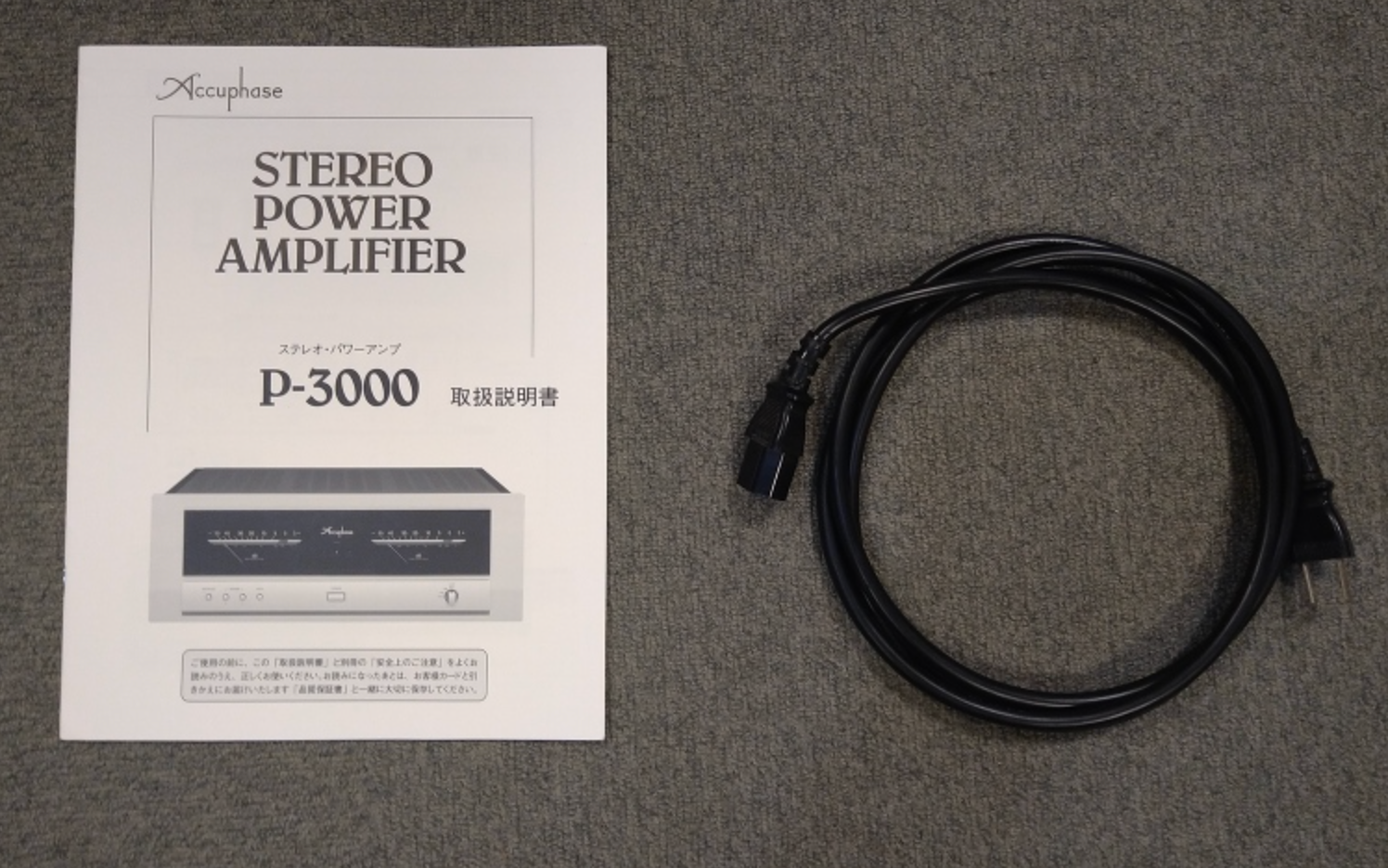

Accessories: AC cable, instruction manual
