Adopted "instrumentation amplifier" that constitutes a balanced amplifier in the entire power amplifier including the signal input stage. Fully balanced signal path from the input terminal to the power amplifier stage. Adopted unique "Multiple Circuit Summing-up + circuit" in the power amplifier section. Also equipped with "current feedback amplifier circuit" that returns the output signal as a current. Adopted non-contact MOS FET switch for protection. Adopted high-efficiency toroidal transformer with thicker winding and parallel winding for increased capacity in the power supply section. Equipped with two 47,000μF type aluminum electrolytic capacitors. Equipped with a mode switch that allows easy bi-amping and bridge connection.
■Rated output: 90W+90W (8Ω), 180W+180W (4Ω)
■Load impedance: 2~16Ω (stereo)
■Damping factor: 500 (stereo)

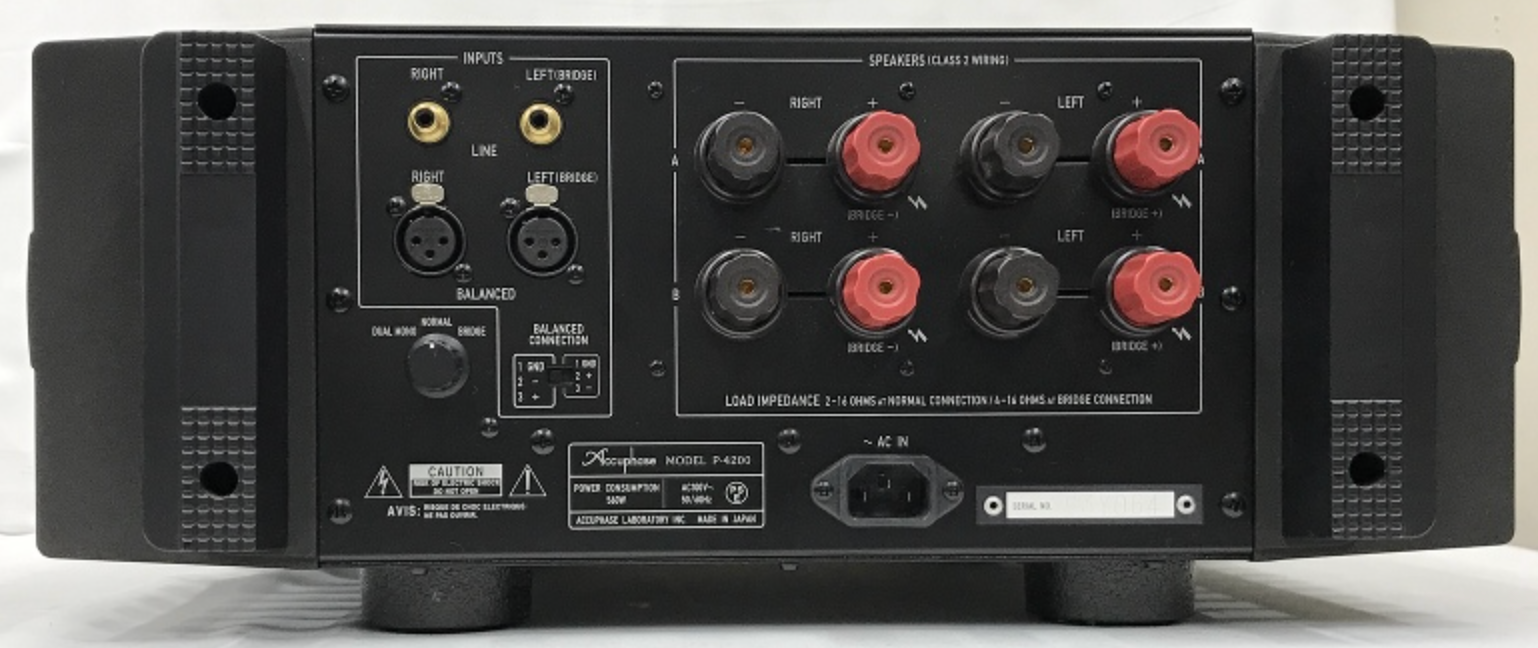

■Input: 1 RCA, 1 XLR
■Speaker output: 2 systems

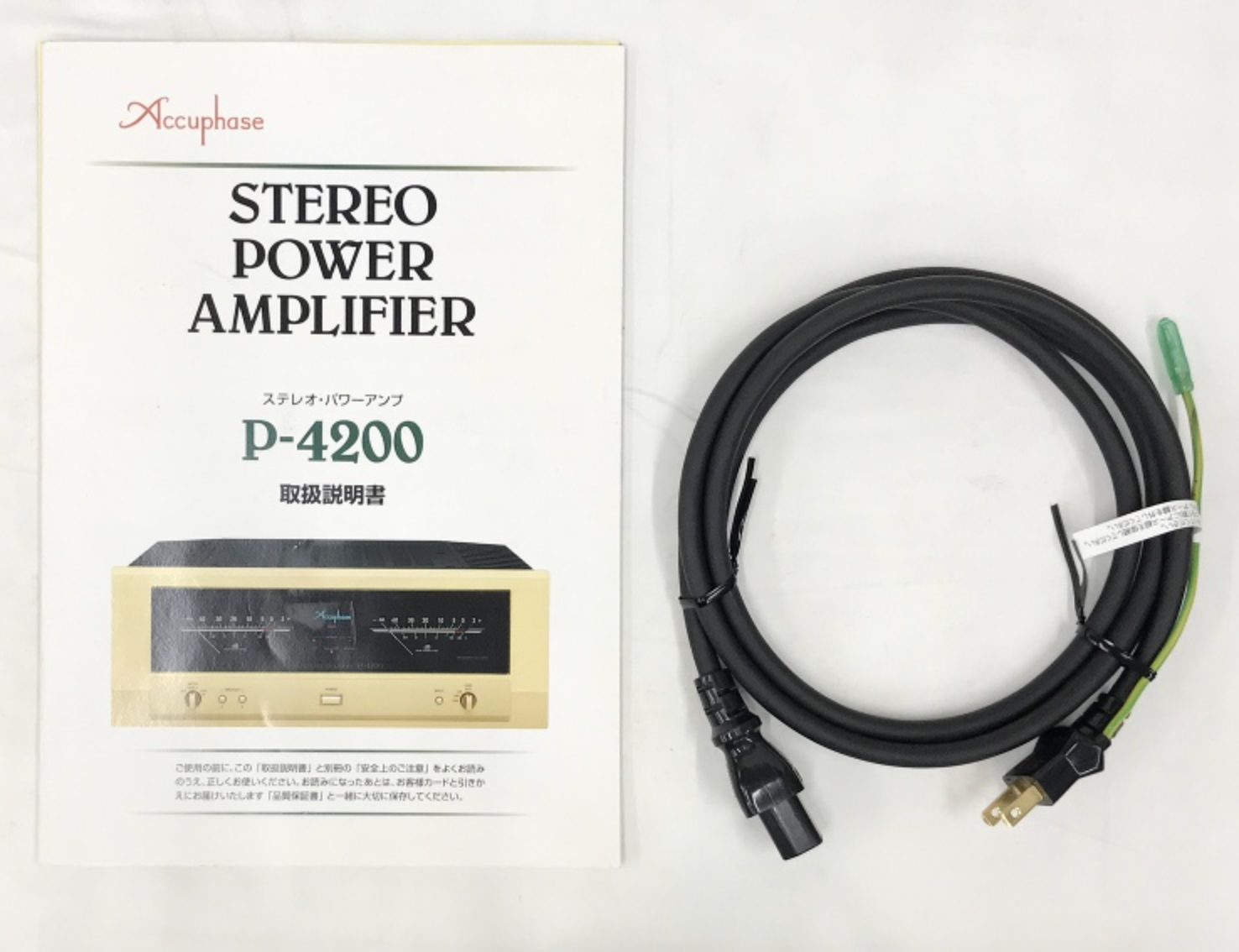

Accessories: Instruction manual, power cable
Size W (width): 465 mm H (height): 190 mm D (depth): 427 mm
Weight 28.9 kg
