Accuphase P-500L Integrated Power Amplifier

Accuphase P-500L Integrated Power Amplifier

$4,000.00 USD
$4,000.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition: Used Supported Modes: N/A
Custom Bundle: No MPN: P-500L
Bundle Listing: No Surround Sound Formats: N/A
Compatible Product: Universal Audio Outputs: Speaker Binding Post
Audio Inputs: Stereo L/R RCA,XLR Unit Type: Unit
Number of Channels: 1 Number of Digital RCA Inputs: 0
Manufacturer Warranty: N/A Number of Inputs: 1
Features: Active Amplification Unit Quantity: 1
Non-Domestic Product: No Receiver Combo Features: N/A
Color: Brown Modified Item: No
California Prop 65 Warning: N/A Number of Outputs: 1
Amplifier Class: A Brand: ACCUPHASE
Type: Stereo Power Amplifeir Model: P-500L
Number of L/R RCA Inputs: 1 Country/Region of Manufacture: Japan
Power: N/A

Description

Continuous average output (20Hz to 20kHz)
Stereo mode: 550W/ch (2Ω)
420W/ch (4Ω)
270W/ch (8Ω)
Monaural mode:
(bridged connection) 1100W (4Ω)
840W (8Ω)
Total harmonic distortion
(Stereo/mono mode) 0.01% (4Ω to 16Ω)
0.02% (2Ω)
IM distortion 0.003%
Frequency response 20Hz to 20kHz +0 -0.2dB (continuous average output, level control MAX)
0.5Hz to 180kHz +0 -3.0dB (1W output, level control MAX)
0.5Hz to 150kHz +0 -3.0dB (1W output, level control -6dB)
Gain 28.0dB (Stereo/mono mode)
Load impedance In stereo mode: 2Ω to 16Ω
In mono mode (bridged): 4Ω to 16Ω
Damping factor In stereo mode: 500
In mono mode (bridged): 250
Input sensitivity (8Ω load)
In stereo mode: 1.85V (at continuous average output)
0.12V (at 1W output)
In mono mode:
(bridged) 3.26V (at continuous average output)
0.12V (at 1W output)
Input impedance Unbalanced input: 20kΩ
Balanced input: 40kΩ
S/N (A-weighted,
both stereo and mono modes) 120dB (input shorted, at continuous average output)
95dB (input 1kΩ, at 1W output)

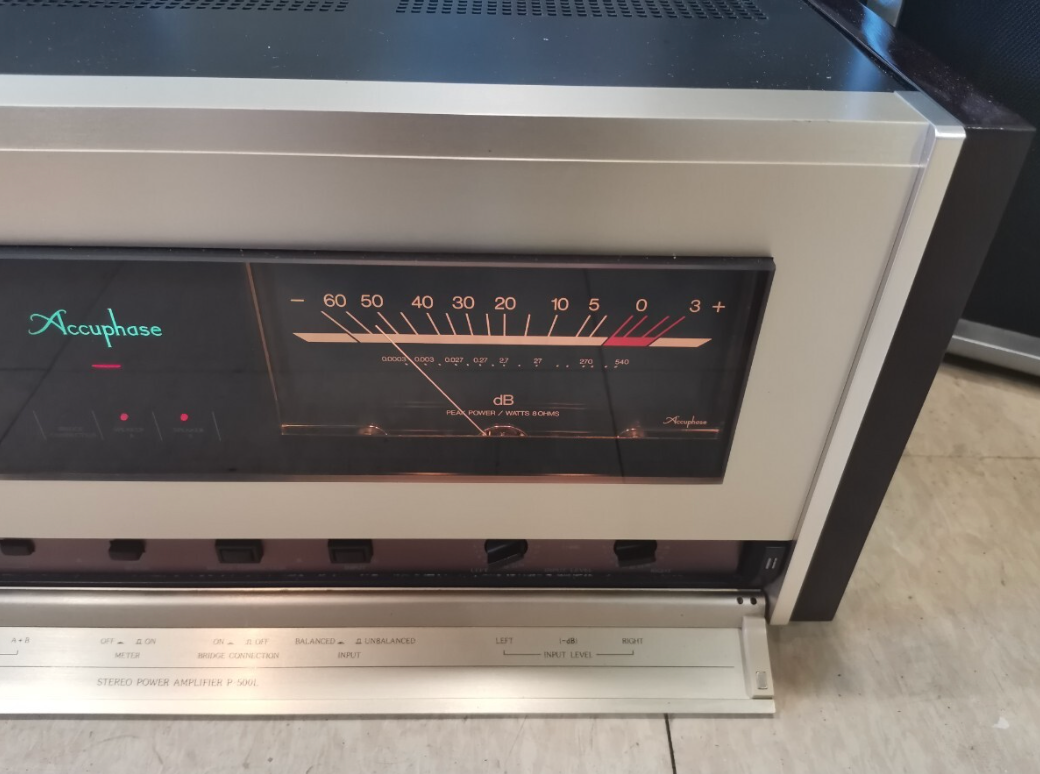

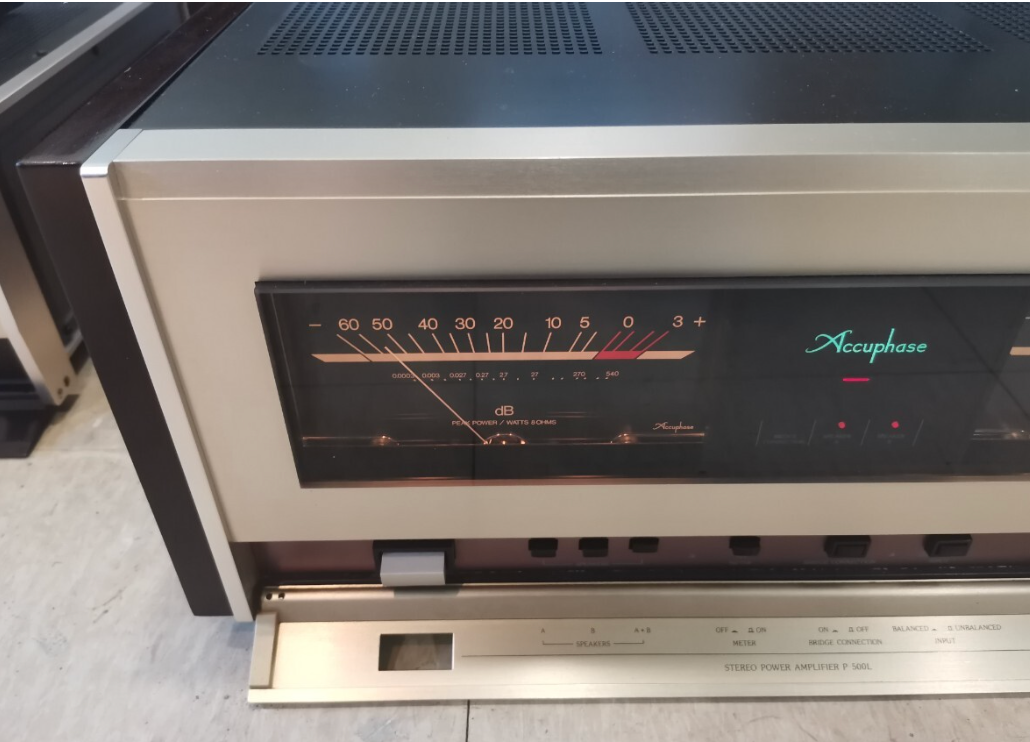

Output meter Logarithmic compression type
-60dB to +3dB and direct output reading scale
Semiconductors used Transistors: 88
FETs: 16
ICs: 8
Diodes: 60
Power supply: AC100V 50Hz/60Hz
Power consumption: 185W (no input)
980W (Electrical Appliance and Material Control Law)
920W (8Ω load rated output)
External dimensions: Width 481 x Height 210 (including legs) x Depth 445mm
Weight: 35.0kg
Accessories: Power cord only
