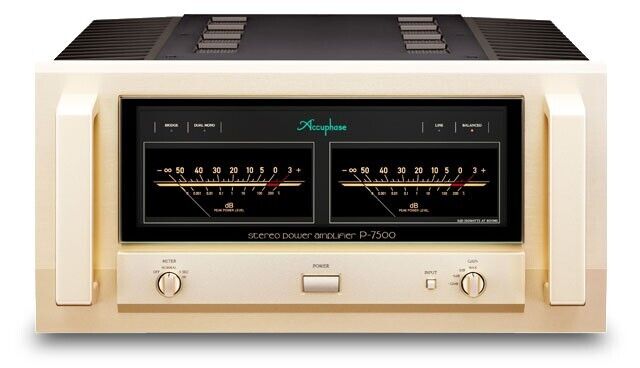

Accuphase P-7500 Power Amplifier

The P-7500 is a super-class "stereo power amplifier" born from a full model change of the P-7300 after six years of development, combining the technology cultivated in the development of the A-250 and A-75 with a powerful output stage with class AB operation.

The power amplification stage uses 10 parallel push-pull class AB operation with power transistors, achieving high power output of 300W/8Ω, 600W/4Ω, and 900/2Ω.

Rated output (20Hz to 20kHz, 0.05%)

Normal/Bi-amp connection 2Ω load∗1 900W/ch

4Ω load 600W/ch

8Ω load 300W/ch

Bridge connection 4Ω load∗1 1800W

8Ω load 1200W

∗1: Music signals only

Total harmonic distortion (20Hz to 20kHz)

Normal/Bi-amp connection 2Ω load 0.05%

4 to 16Ω load 0.03%

Bridge connection 4 to 16Ω load 0.05%

IM distortion 0.01%

Frequency response

Rated output 20Hz to 20kHz (+0,-0.2dB)

At 1W output   0.5Hz to 160kHz (+0,-3.0dB)

Gain

Normal / Bi-amp / Bridge connection

GAIN switch  MAX  -3dB  -6dB  -12dB

Gain (dB)  28  25  22  16

Load impedance

Normal / Bi-amp connection   4 to 16Ω

(However, 2 to 16Ω is possible only for music signals)

Bridge connection   8 to 16Ω

(However, 4 to 16Ω is possible only for music signals)

Damping factor

Normal / Bi-amp connection   1000 or more

Input sensitivity

Normal / Bi-amp connection    At rated output   1.95V

At 1W output 0.11V

Bridge connection    Rated output   3.90V

1W output   0.11V

Input impedance

Balanced input   40kΩ

Line input   20kΩ

S/N (A-weighted, input shorted)

GAIN switch MAX   130dB

GAIN switch -12dB   135dB

Power meter

Type   Logarithmic compression type, with display off function

Display range   -∞ to +3dB

Hold time   3 seconds/∞ switchable

Bridge connection   Same value displayed on left and right

Power supply

AC100V   50/60Hz

Power consumption

No input   142W

Electrical Appliance and Material Safety Act∗2 800W

8Ω load rated output   1050W

Standby   0.3W

∗2: The power consumption according to the Electrical Appliance and Material Safety Act is the power value when "1/8 of the output just before clipping" is supplied at the maximum load of the model (4Ω for this unit)

Maximum external dimensions Width 465mm x Height 238mm x Depth 515mm

Weight 49.0kg
