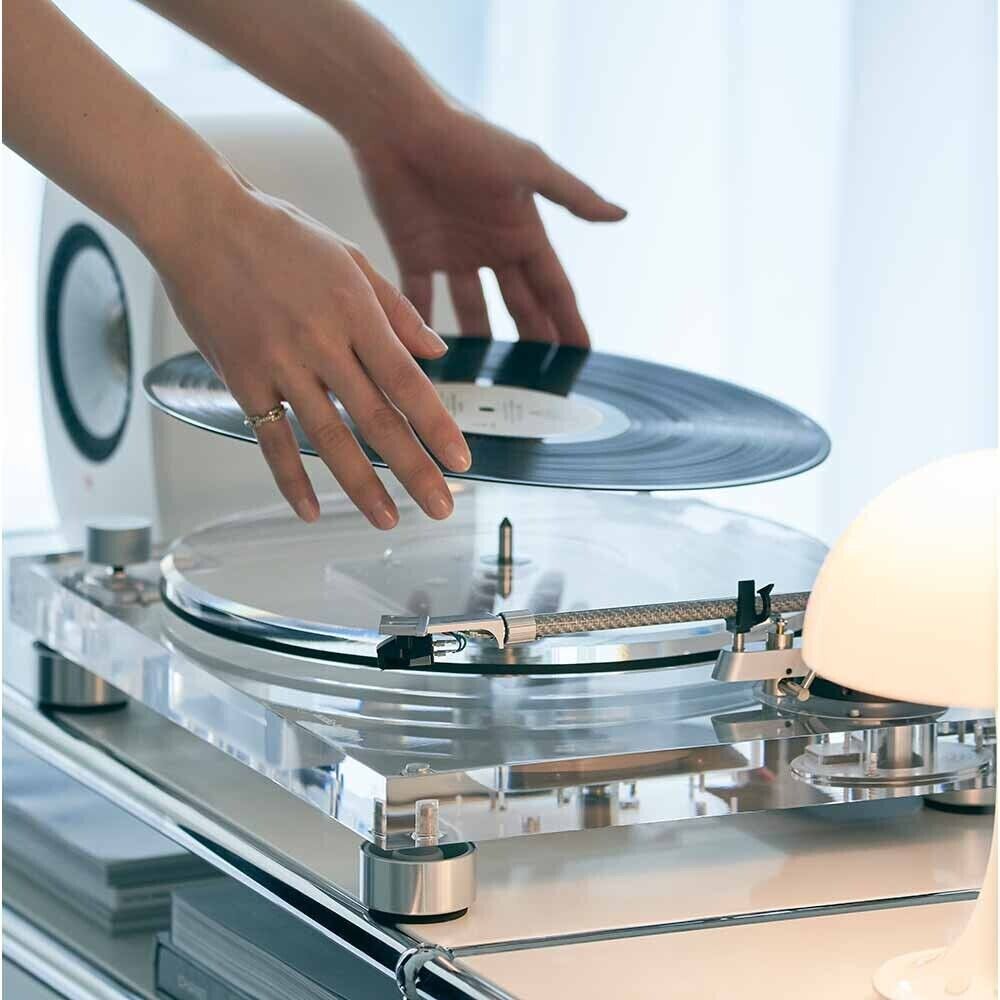

audio-technica AT-LP2022 60th Anniversary Limited Edition Turntable
audio-technica AT-LP2022 60th Anniversary Limited Edition Turntable
Regular price
$2,200.00 USD
Regular price
Sale price
$2,200.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Condition: New | Screen Size: N/A |
| Color: Clear | MPN: ATLP2022 |
| Band: N/A | Audio Outputs: N/A |
| Brand: Audio-Technica | Type: Belt Drive Turntables |
| Unit Type: N/A | Model: Audio-Technica AT-LP2022 |
| Connectivity: N/A | Features: Belt Drive |
| Speed Settings: 33.3RPM,45RPM | Country/Region of Manufacture: Japan |
| Unit Quantity: N/A | Pitch Range: N/A |
| Product Line: N/A | UPC: 4961310159948 |
Description
turntable body
model
belt drive manual turntable
Drive motor
DC servo motor with active speed control
Drive system
Belt drive system
number of revolutions
33-1/3 or 45 rev/min
turntable platter
16mm thick acrylic platter
wow flutter
< 0.15% WRM (at 33 rpm)
SNR
>60dB
tone arm
kinds
Static balanced straight carbon tonearm
effective length
223.6mm
Overhang
18.6mm
Maximum tracking error angle
less than 2.0°
Stylus pressure adjustment range
0-3.0g
Usable cartridge mass range
11.5-16.5g (including headshell)
Cartridge (AT-VM95E BK)
Cartridge type
VM type stereo cartridge
Recommended load impedance
47 kΩ
Playback frequency range
20-22,000Hz
output voltage
4.0mV (1kHz, 5cm/sec)
stylus
0.3×0.7mil Joint oval needle
cantilever
aluminum pipe
stylus pressure range
1.8 to 2.2 g (standard value 2.0 g)
Cartridge mass
6.1g
Cartridge (AT-VM95SH CL)
Specifications when the replacement stylus (AT-VMN95SH CL) is attached to the included cartridge.
Cartridge type
VM type stereo cartridge
Recommended load impedance
47 kΩ
Playback frequency range
20-25,000Hz
output voltage
3.5mV (1kHz, 5cm/sec)
stylus
2.7×0.26mil solid shibata needle
cantilever
aluminum pipe
stylus pressure range
1.8 to 2.2 g (standard value 2.0 g)
Cartridge mass
6.1g
head shell
head shell model
AT-HS4 SV
head shell mass
8.5g (including lead wire)
7.7g (excluding lead wire)
Headshell overhang adjustment range
±5mm
General specifications
power requirements
100-240V, 50/60Hz, 0.5A Max.
power consumption
1.8W
AC adapter
12V, 1.0A
External dimensions
H135×W420×D340mm
mass
8.0kg
accessories
Dust cover, platter (with drive belt), dust cover hinge, counter weight, head shell (AT-HS4 SV) with VM type stereo cartridge (AT-VM95E BK), replacement stylus (AT-VMN95SH CL), EP adapter, audio Cable (Approx. 1.0m), AC Adapter (Approx. 1.5m), Hex Wrench, Gloves
sold separately
Replacement stylus AT-VMN95E BK, AT-VMN95SH CL*, replacement head shell AT-HS4 SV, replacement belt AT-LP2022 belt
*The replacement stylus AT-VMN95SH CL (clear color) is a limited edition AT-LP2022. Repair parts are limited. Please note that we may not be able to meet your request for repairs if repair parts are no longer available. In that case, you can use the commercially available replacement stylus AT-VMN95SH (brown color).
