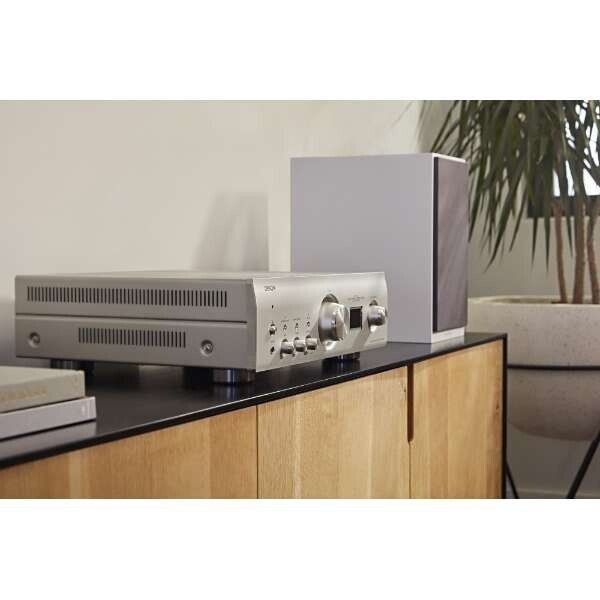

Denon PMA-1700NE SP Integrated Amplifier DSD USB-DAC Premium Silver 100V NEW

●Power amplifier section rated output

70 W + 70 W (8Ω, 20 Hz to 20 kHz, THD 0.07%) 140 W + 140 W (4Ω, 1 kHz, THD 0.7%)

Total harmonic distortion rate 0.01% (rated output, -3 dB, load 8Ω, 1 kHz)

Output terminal Speaker A or B: Load 4 to 16Ω Speaker A+B: Load 8 to 16Ω

Input sensitivity / input impedance EXT. PRE: 0.84 V / 47 kΩ Gain value: 29 dB

●Preamp section

Input sensitivity / input impedance PHONO (MM): 2.5 mV / 47 kΩ PHONO (MC): 200 μV / 100 Ω CD, NETWORK/AUX, RECORDER: 125 mV / 19 kΩ RIAA deviation PHONO: ± 0.5 dB (20 Hz to 20 kHz) Maximum input PHONO (MM): 130 mV / 1 kHz PHONO (MC): 10 mV / 1 kHz Input/output terminal Analog audio input terminal Unbalanced input x 3, PHONO input x 1, EXT. PRE x 1 Analog audio output Terminal Unbalanced output (RECORDER) x 1, Headphone output x 1 Digital audio input terminal USB-B input x 1, Coaxial digital input x 1, Optical digital input x 2 Others IR control input/output x 1

●Comprehensive characteristics

S/N ratio (A network) PHONO (MM): 89 dB (input terminal shorted, input signal 5 mV) PHONO (MC): 74 dB (input terminal shorted, input signal 0.5 mV) CD, NETWORK/AUX, RECORDER: 107 dB (input terminal shorted) Frequency response 5 Hz to 100 kHz (0 to -3 dB) Tone control BASS: 100 Hz ±8 dB TREBLE: 10 kHz ± 8 dB

●General

External dimensions (W x H x D) 434 x 135 x 410 mm

Weight 17.6 kg Power supply AC 100 V, 50 / 60 Hz

Power consumption 295 W Standby power consumption 0.2 W

Accessories Easy start guide, instruction manual, remote control, AAA batteries x 2, power cord
