Power amplifier section
[Rated output]
・80 W + 80 W (8Ω, 20 Hz to 20 kHz, THD 0.07%)
・160W + 160W (4Ω, 1kHz, THD 0.7%)
[Total harmonic distortion] 0.01% (rated output, -3 dB, load 8Ω, 1 kHz)
[Output terminal] Speaker: Load 4 to 16Ω
[Input sensitivity/input impedance]
・EXT. PRE: 0.9 V / 47 kΩ
・Gain value: 29 dB
Preamp section
[Input sensitivity/input impedance]
・PHONO(MM): 2.5 mV / 47 kΩ
・PHONO(MC): 200μV / 100Ω
・CD, NETWORK/AUX, RECORDER: 135 mV / 19 kΩ
[RIAA deviation]
・PHONO: ± 0.5 dB (20 Hz to 20 kHz)
[Maximum input]
・PHONO (MM): 130 mV / 1 kHz
・PHONO (MC): 10 mV / 1 kHz

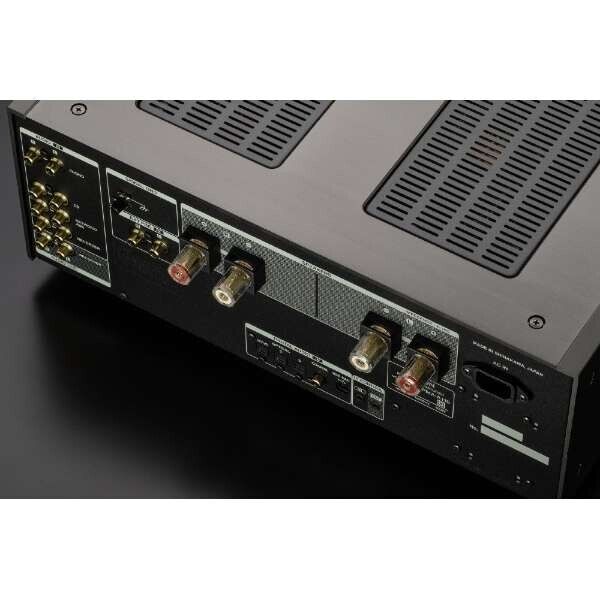

Input/output terminal
[Analog audio input terminal] Unbalanced input x 3, PHONO input x 1, EXT. PRE x 1
[Analog audio output terminal] Unbalanced output (RECORDER) x 1, headphone output x 1
[Digital audio input terminal] USB-B input x 1, coaxial digital input x 1, optical digital input x 3
[Others] IR control input/output x 1
Overall characteristics
[S/N ratio (A network)]
・PHONO (MM): 84 dB (input terminal shorted, input signal 5 mV)
・PHONO (MC): 72 dB (input terminal shorted, input signal 0.5 mV)
・CD, NETWORK/AUX, RECORDER: 107 dB
[Frequency characteristic]
・5 Hz to 100 kHz (0 to -3 dB)
[Tone control]
・BASS: 100 Hz ±8 dB
・TREBLE: 10kHz ± 8dB
comprehensive
External dimensions: W434 x H182 x D450 mm
Mass: 25.0 kg
Power supply: AC 100V, 50/60Hz
Power consumption: 400W
Standby power: 0.2W
Accessories: Easy start guide, instruction manual, remote control, AAA batteries x 2, power cord
