Esoteric N-05XD-S network DAC preamplifier NEW

Network × DAC × Preamplifier

A new audio style started on the network

Master Sound Discrete DAC takes digital playback to a new world.

An attenuator system that brings out the true value of speakers and power amplifiers.

A preamplifier that is equipped with digital and analog inputs and is the core of the system.

Main Specifications

Digital input: XLR x 1, RCA x 2, optical digital x 2, USB audio, ETHERNET, USB drive x 2, Bluetooth®

Analog input: XLR x 1 system, RCA x 1 system

Analog output: XLR/ES-LINK Analog x 1 system, ES-LINK Analog pre-out x 1 system, RCA x 1 system

Clock input: BNC x 1 system (10MHz)

External dimensions: 445 x 131 x 377mm (W x H x D, including protrusions)

Specification explanation

digital audio input

XLR terminal

1 system

▼Input signal format

Linear PCM 32k to 192kHz, 16bit/24bit (AES/EBU format)

DSD 2.8MHz (ES-LINK1, ES-LINK2, DoP format)

RCA terminal

Two systems

▼Input signal format

Linear PCM 32k~192kHz, 16bit/24bit (IEC60958 format

DSD 2.8MHz (DoP format)

Optical digital terminal

Two systems

▼Input signal format

Linear PCM 32k~192kHz, 16bit/24bit (IEC60958 format)

DSD 2.8MHz (DoP format)

USB terminal

1 system (B terminal)

▼Input signal format

Linear PCM 44.1k ~ 384kHz, 16bit / 24bit / 32bit

DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz

ETHERNET terminal

1 (1000BASE-T)

▼Input signal format

Linear PCM 44.1k ~ 384kHz, 16bit / 24bit / 32bit (stereo)

• Only integer format files can be played.

DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (stereo)

▼Supported file formats

PCM lossless FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA

DSD lossless DSF, DSDIFF (DFF), DoP

Compressed audio MP3, AAC (m4a container)

USB DRIVE terminal 2 (front, rear)

Supported file systems: FAT32, exFAT, NTFS, single partition, USB2.0 or higher recommended

Maximum supply current 0.5A

▼Input signal format

Linear PCM 44.1k~384kHz, 16bit/24bit/32bit (stereo)

• 32bit can only play integer format files.

DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (stereo)

▼Supported file formats

PCM lossless FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA

DSD lossless DSF, DSDIFF (DFF), DoP

Compressed audio MP3, AAC (m4a container)

Analog audio/Bluetooth/headphone output/clock sync input

Analog audio input XLR terminal 1 system (L/R)

RCA terminal 1 system (L/R)

Analog audio output XLR/ESL-A terminal 1 system (L/R)

ESL-A PRE-OUT terminal 1 system (L/R)

RCA terminal 1 system (L/R)

Bluetooth® section version 4.0

Supported profiles A2DP, AVRCP

Supported A2DP codecs LDAC, LHDC, aptX™ HD audio, aptX™ audio, AAC, SBC

Headphone output Balanced output 4-pin XLR terminal x 1

Unbalanced output 6.3mm standard stereo jack x 1

Clock sync input BNC terminal 1

Possible input frequency 10MHz (±10ppm)

comprehensive

Power supply AC 100V, 50/60Hz

Power consumption 38W

External dimensions (W x H x D) 445 x 131 x 377mm (including protrusions)

Mass 13.8kg

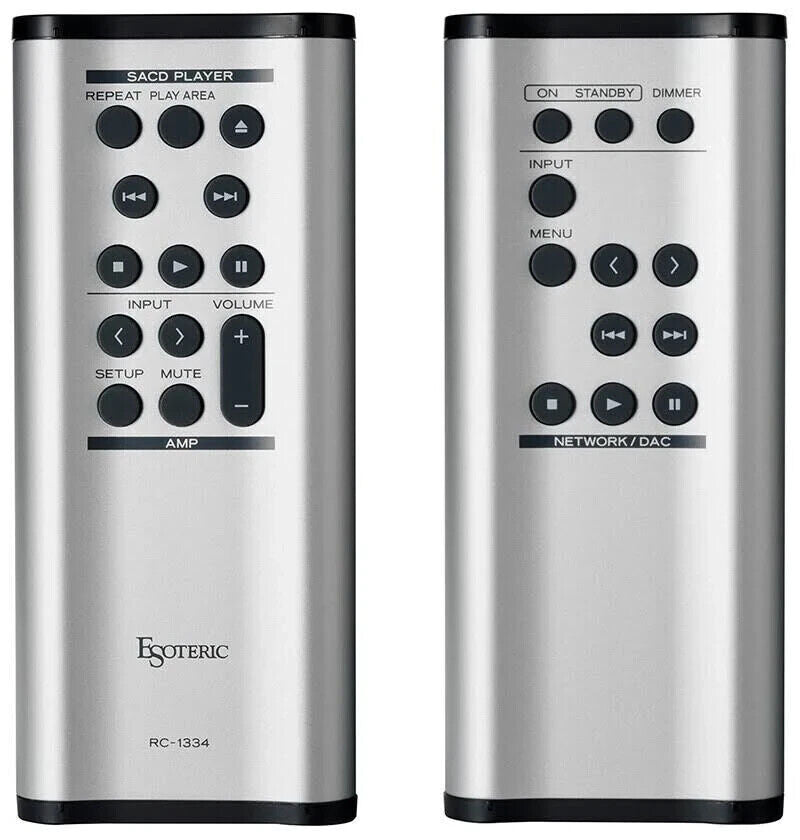

Accessories Power cord x 1 Remote control (RC-1334) x 1 Instruction manual x 1 User card x 1
