Equipped with a VOSP (vertically aligned optical stability platform) mechanism equipped with Esoteric's axial sliding pickup. The DAC uses the "AK4392" made by Asahi Kasei Microdevices Corporation, which has high speed and high processing power for high sound quality and has full 32-bit processing power. Equipped with digital input function including USB.
■Playable disc formats: Super Audio CD, CD, CD-R, CD-RW

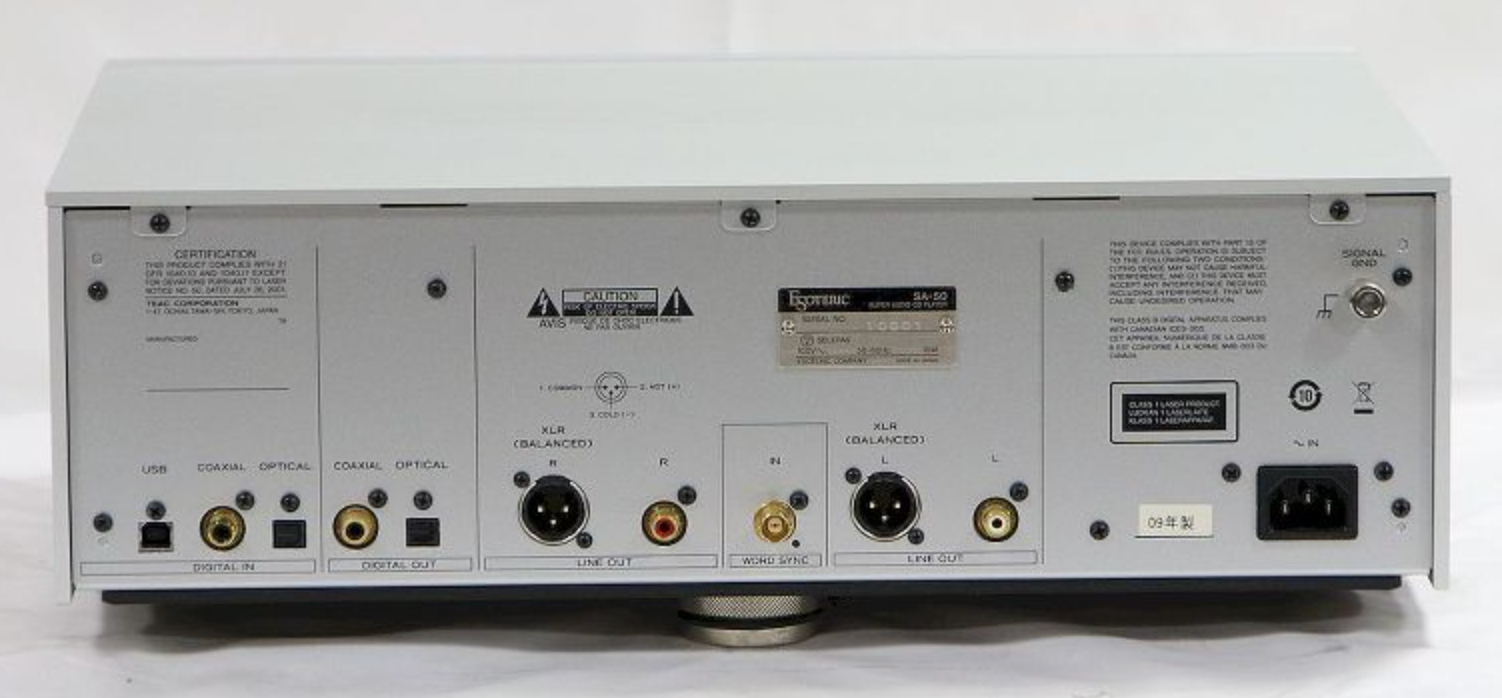

■Analog audio output: 1 XLR terminal (2ch)/1 RCA terminal (5.1ch)
■Output impedance: XLR: 100Ω, RCA: 100Ω
■Maximum output level: 2.2Vrms (1kHz, full scale, 10kΩ load)
■Frequency response: 5Hz to 40kHz (Super Audio CD)
■S/N ratio: 130dB
■Distortion rate: 0.001% (1kHz)
■Optical digital output: 1 optical digital terminal (-15 to -21dBm)
■Coaxial digital output: 1 RCA terminal (0.5Vp-p, 75Ω load)
■Coaxial digital input: 1 RCA terminal (input impedance 75Ω, 0.5Vp-p)
■Optical digital input: 1 optical digital terminal (-24.0 to -14.5dBm peak)
■USB input: USB Type B terminal x 1 (USB 1.1 compliant)
■ Word sync input: BNC terminal x 1 / Input frequency: 44.1, 88.2, 176.4, 100kHz / Input impedance: 75Ω / Input level: TTL level equivalent
■ Power consumption: 15W
Accessories

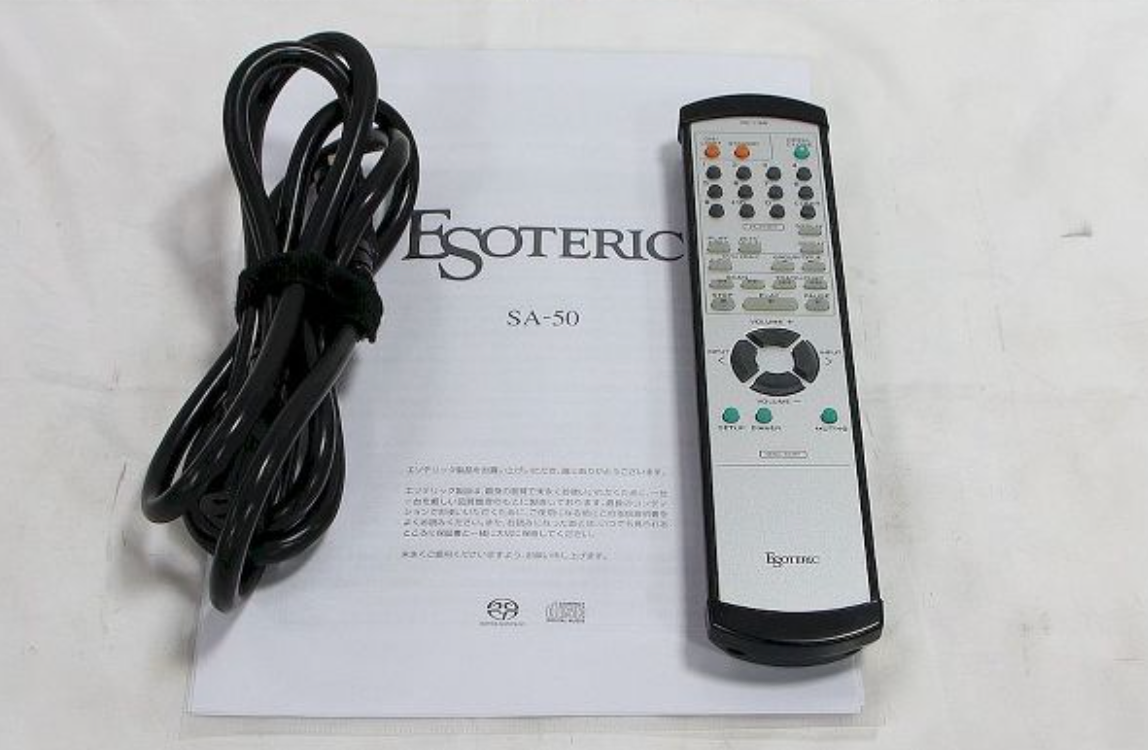

Remote control, AC cable
Size W (width): 442 mmH (height): 153 mmD (depth): 353 mm
Weight 18 kg
