■ With accurate temperature control and time control, it can be used without being affected by the ambient temperature depending on the season or region.
■ You can select from two modes, "7inch mode" and "10inch or 12inch mode".
By setting three temperature settings in each mode, it can be adjusted in the appropriate state for each size.
■ By using the attached dedicated adapter, you can modify flat boards of 7inch, 10inch, and 12inch sizes.
■ It is possible to modify the heavy board (about 180g-200g).
■ The chic design in black and silver is a luxurious finish that matches the audio room.
Disc flutter correction principle
Analog discs are usually made mainly from vinyl chloride, and are distorted and irreversible due to the effects of storage methods and ambient temperature. As a result, needle skipping occurs during playback, which adversely affects sound quality.
The semiconductor film heater mounted on the DF-01iA + keeps the inside of the disc flutter at the optimum temperature for modifying analog discs, and ORB's unique SCVH (Super Compliance Variable Hinge) structure enables uniform pressurization of the entire analog disc. bottom.
Since the outer peripheral part (groove guard) of the analog disc is pressed during pressurization, it does not affect the sound groove.
Analog disc that can be modified with DF-01iA +
■ 30cm (12inch), LP (33 1/3) Single (45), Groove Guard
■ 30cm (12inch), LP (33 1/3) Single (45), Flat (using dedicated adapter)
■ 25cm (10inch), LP (33 1/3), groove guard
■ 25cm (10inch), LP board (33 1/3), flat board (using dedicated adapter)
■ 17cm (7inch), EP board (45) Compact board (33 1/3), Groove guard board
■ 17cm (7inch), EP board (45) Compact board (33 1/3), (using dedicated adapter)

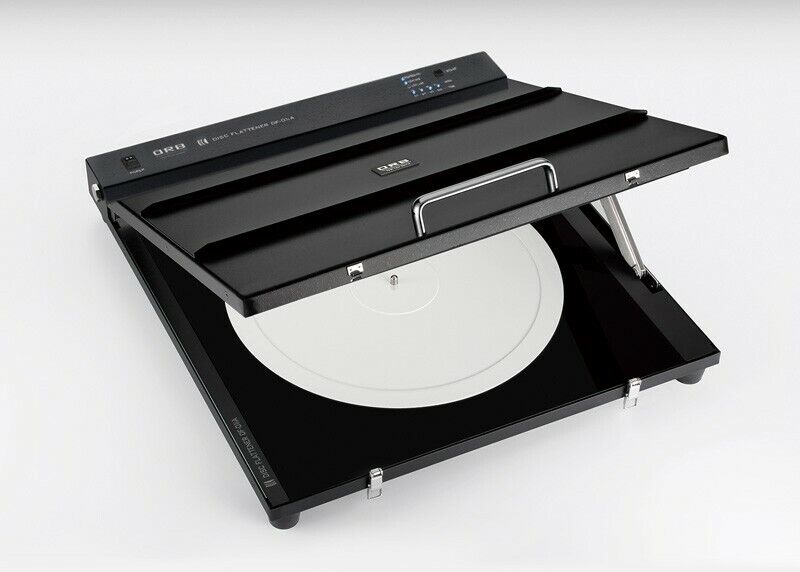

Product specifications of ORB Orb DF-01iA +
Others ◁EPower supply: 100VAC 50 / 60Hz
◁EOvercurrent protection: AC line 3A fuse protection
◁EPower consumption: 160W (maximum)
◁EDimensions: W471 H93 D493 (Unit is mm)
◁EWeight: Approximately 11 kg
◁EOperating temperature range: Room temperature (but no condensation)
◁EOperating humidity range: 20% to 90% (however, no condensation)
◁EAccessories: 7inch adapter x 1set, 10inch adapter x 1set, 12inch adapter x 1set
