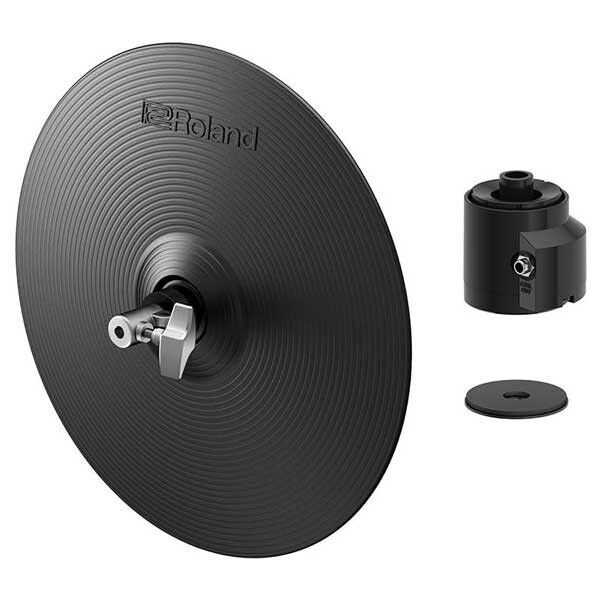

The VH-10 is a V-hi-hat that can be played in the same way as an acoustic drum hi-hat by adopting a floating structure in which one cymbal pad moves up and down by pedal operation. Attached to the hi-hat stand for acoustic drums, the motion sensor unit located under the cymbal senses the vertical movement of the cymbal when the pedal is depressed. The lightweight, thin frame reproduces the natural shaking when hitting the hi-hat, and enables smoother open / close operation. Corresponds to the separate hitting of the bow / edge, and faithfully reflects the position and strength of the shot, the open / closed condition and timing of the pedal, in the sound. Achieves a playing feel just like an acoustic drum.
■ Main specifications
Size: 12 inches
Trigger: 2 (bow, edge)
Connection terminal: TRIGGER OUTPUT terminal, CONTROL OUTPUT terminal
Mountable rod diameter: 6.0 to 7.0 mm (rod holder: maximum 11.7 mm)
External dimensions: Hi-hat = 314 (width) x 314 (depth) x 103 (height) mm, motion sensor unit = 77 (width) x 74 (depth) x 71 (height) mm
Mass: Hi-hat = 1.2kg, Motion sensor unit = 0.2kg
