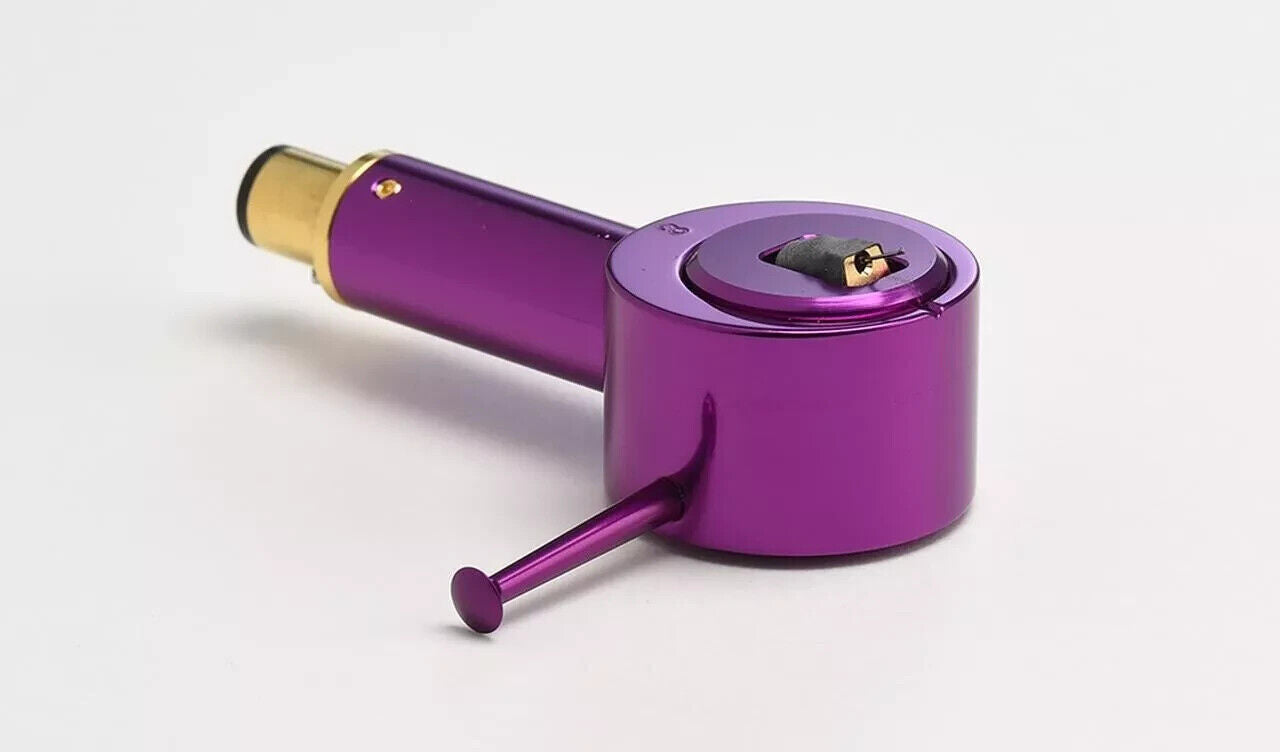

◆Developed as the top model of IKEDA SAI
A cartridge with amazingly balanced reproduction capabilities from high to low frequencies of musical instruments.
◆The fixed part of Amane's power generation mechanism uses a special vibration-damping alloy with the highest vibration and sound absorption capacity.
Achieves sound quality with clearer sound contours.
The exterior material is precision-machined solid aluminum, hand-buffed, and finished with metallic anodizing.
◆Micro-ridge solid diamond stylus tip
◆Magnets use neodymium magnets
◆Cantilevers use boron, which is advantageous for vibration transmission
◆Connectors and contacts are gold-plated
◆Internal wiring uses 6N leads
◆Reproduces dynamic and rich sound
Developed with the goal of making recorded music as enjoyable as possible.
IKEDA Amane is assembled over a long period of time with precise adjustments to bring out the charm of the music itself.
Specifications
■Specifications■
Power generation method: moving coil type (universal tone arm only)
Output voltage: 0.3mVrms (1kHz 3.54cm/sec. 45°)
Appropriate needle pressure range: 1.8-2.2g
Playback frequency range: 10-45,000Hz
Coil impedance: 2.5Ω (1kHz)
Channel separation: 30dB or more (1kHz)
Channel balance: 0.5dB or less (1kHz)
Stylus tip: solid diamond, microridge type
Cantilever: boron
Weight: approx. 35.0g
