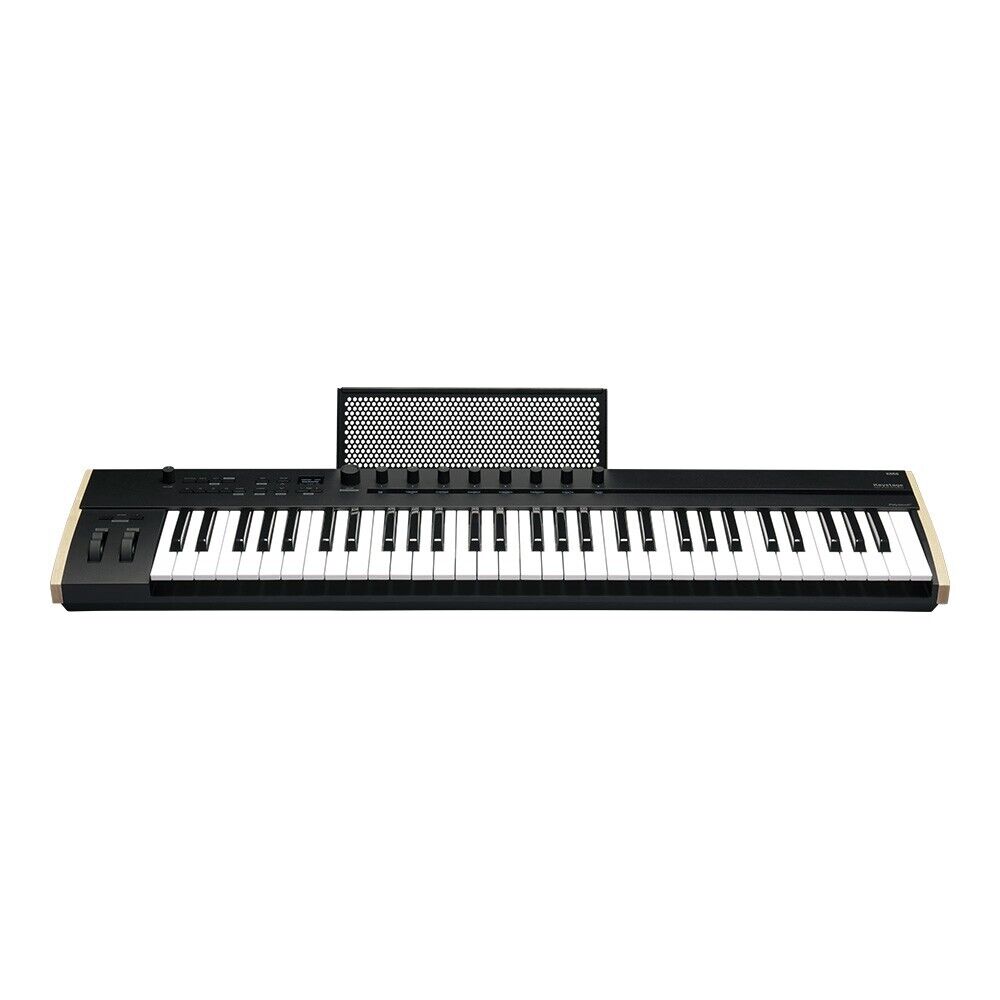

KORG/Keystage is a MIDI keyboard equipped with an audio interface that supports MIDI 2.0. Equipped with MPE and polyphonic aftertouch, it can be used not only for music production but also for live performance. Equipped with a plate that can also be used as a place to store a laptop, ensuring expandability. By adding scripts, seamless DAW control is achieved. 61 key model.
■MIDI keyboard
■61 keys
■MIDI 2.0 compatible
The world's first Keystage to include MIDI 2.0 property exchange, delivering unparalleled collaboration and control that takes your music production to a new level.
Featuring excellent touch response, polyphonic/channel aftertouch, MPE (MIDI polyphonic expression), etc., Keystage is visually easy to understand and allows intuitive control with an organic EL display. It also features a powerful arpeggiator, various chord mode functions, a built-in audio interface, and wide compatibility with Ableton Live.
Whether you're creating in the studio or performing live, you can focus on your performance without blocking your inspiration.
■Specifications
keyboard
Polytouch keyboard, 61 keys
Equipped with velocity sensitivity, aftertouch, and polyphonic aftertouch
Velocity curve: 21 (-10~0~+10)
Octave range: 7 (-3~0~+3)
controller
Pitch bend wheel, modulation wheel, parameter control knob x8

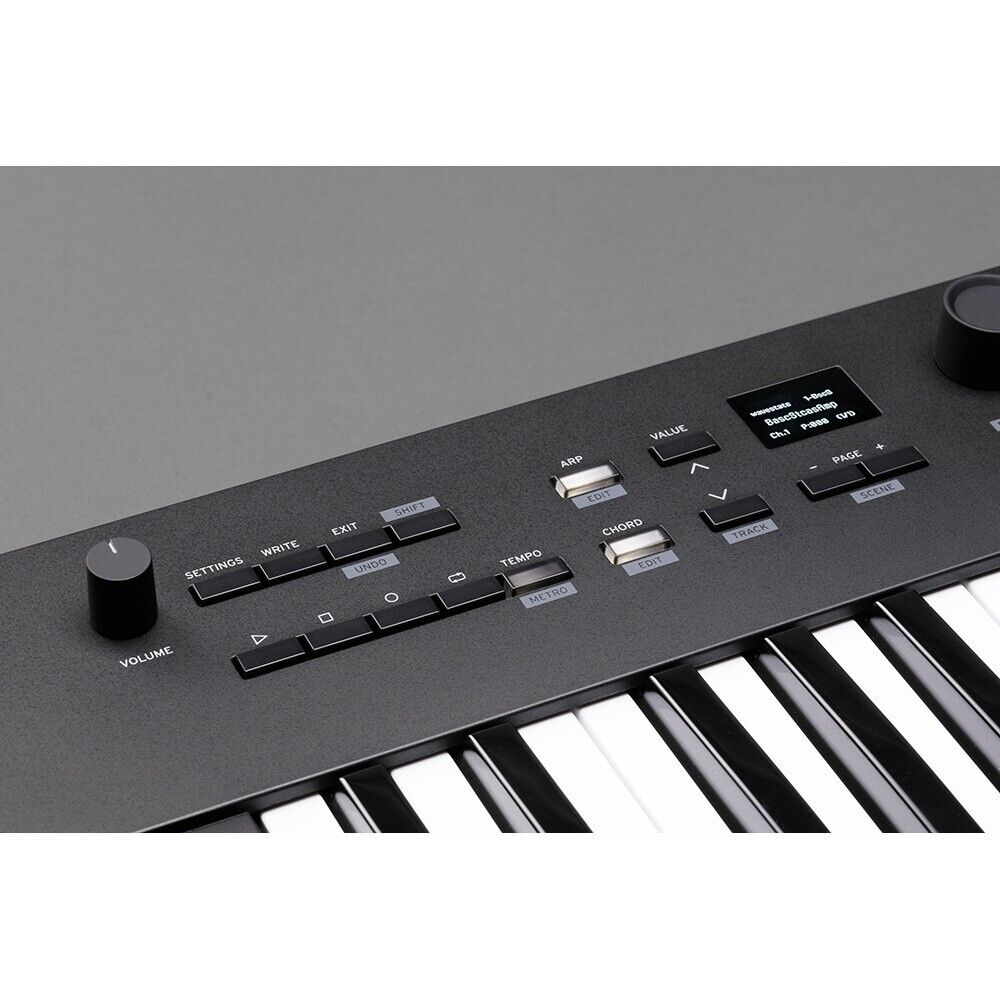

VOLUME knob, SETTINGS button, WRITE button, EXIT button, SHIFT button, ARP button, CHORD button, VALUE^/ button,
VALUE dial, PAGE?/+ button, transport button, TEMPO button, OCTAVE?/+ button
display
Main display: Organic EL (electroluminescence) display
Sub-display: Organic EL display x 8
scene
Number of scenes: 16
arpeggiator
Arpeggio rhythm pattern: 20
code mode
Preset code sets: 32
User code set: 32
Input/output jacks and ports
USB terminal, MIDI (IN, OUT terminal), EXPRESSION terminal, DAMPER terminal, AUDIO OUT (L/MONO, R terminal), headphone terminal
audio output
AUDIO OUT (L/MONO, R): 6.3mm TS phone jack (unbalanced)
Headphones: 6.3 mm stereo phone jack
control input
DAMPER (half damper compatible)
EXPRESSION
MIDI
IN, OUT
USB
Type B
MIDI/audio interface
MIDI: 1 in/1 out
Audio: 2ch output
Audio format: 44.1kHz, 16 bit
power supply
USB bus power or AC adapter (9V DC: Korg KA350, sold separately)
Power consumption: 5V/500mA or less (when powered by USB), 4W (when using AC adapter)
Dimensions (width x depth x height), weight
Keystage-61: 979 × 234 × 82 mm, 5.0 kg
Bundled items
USB cable (Type A-Type B), plate, quick start guide, precautions
Included software
Korg Gadget Producer Bundle, wavestate native LE, Ableton Live, and more
