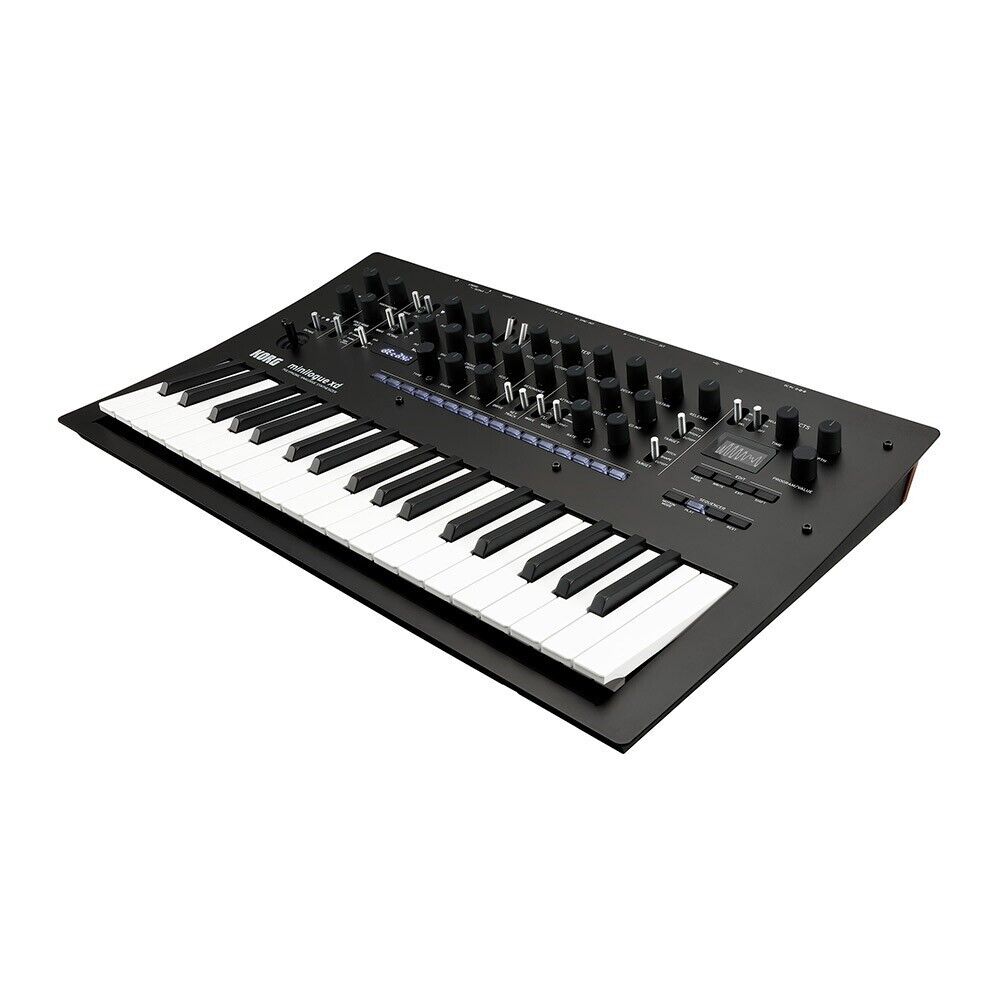

KORG minilogue xd Polyphonic Analog Synthesizer 37-keys Sequencer NEW

Keyboard: 37 keys (slim keyboard, velocity sensitive)

Sound source Analog sound source + multi-digital sound source

Maximum polyphony: 4 voices

500 programs (200 preset programs and 300 user programs when shipped from the factory) Each program includes voice mode settings. Equipped with favorite function.

Voice mode 4 (POLY, UNISON, CHORD, ARP/LATCH)

VOICE MODE DEPTH that changes different parameters for each mode

Sequencer 16 step polyphonic sequencer

Main synth parameters

VCO1 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE

VCO2 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE

MODULATION SYNC, RING, CROSS MOD DEPTH MULTI ENGINE NOISE/VPM/USER, TYPE, SHAPE

MIXER VCO1, VCO2, MULTI

VCF CUTOFF, RESONANCE, DRIVE, KEYTRACK

AMP EG ATTACK, DECAY, SUSTAIN, RELEASE

EG ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)

LFO WAVE (SAW, TRIANGLE, SQUARE), MODE (BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)

Main effect parameters

EFFECT TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH

MULTI ENGINE noise generator 4 types

VPM oscillator 16 types

User oscillator 16 slots

MOD EFFECTS CHORUS 8 types

ENSEMBLE 3 types

PHASER 8 types

FLANGER 8 types

USER 16 slots

DELAY

DELAY 12 types

USER 8 slots

REVERB REVERB 10 types

USER 8 slots

Controls Joystick that changes different parameters for each program, PORTAMENTO knob

display

Main organic EL display with oscilloscope function

MULTI ENGINE section 7 segment x 6 digit LED display

Input/output terminal

・Headphone terminal (stereo phone jack)

・OUTPUT L/MONO, R terminal (monaural phone jack, unbalanced)

・CV IN 1, 2 terminals (3.5mm monaural mini jack, input voltage: -5V~+5V in Modulation mode, -3V~5V in CV/Gate mode)

・SYNC IN terminal (3.5mm mini jack, maximum input level 20V)

・SYNC OUT terminal (3.5mm mini jack, output level 5V)

・MIDI IN terminal

・MIDI OUT terminal

・USB B terminal

・DAMPER terminal (half damper not supported)

power supply

・AC adapter (DC9V)

・Power consumption 8W

External dimensions 500 (W) x 300 (D) x 85 (H) mm

Mass 2.8 kg

Accessories AC adapter

Accessories sold separately

Soft case SC-MINILOGUE Multi-purpose tall backpack SEQUENZ MP-TB1 Sync cable SQ-CABLE-6 Damper pedal DS-1H Pedal switch PS-1 Pedal switch PS-3
