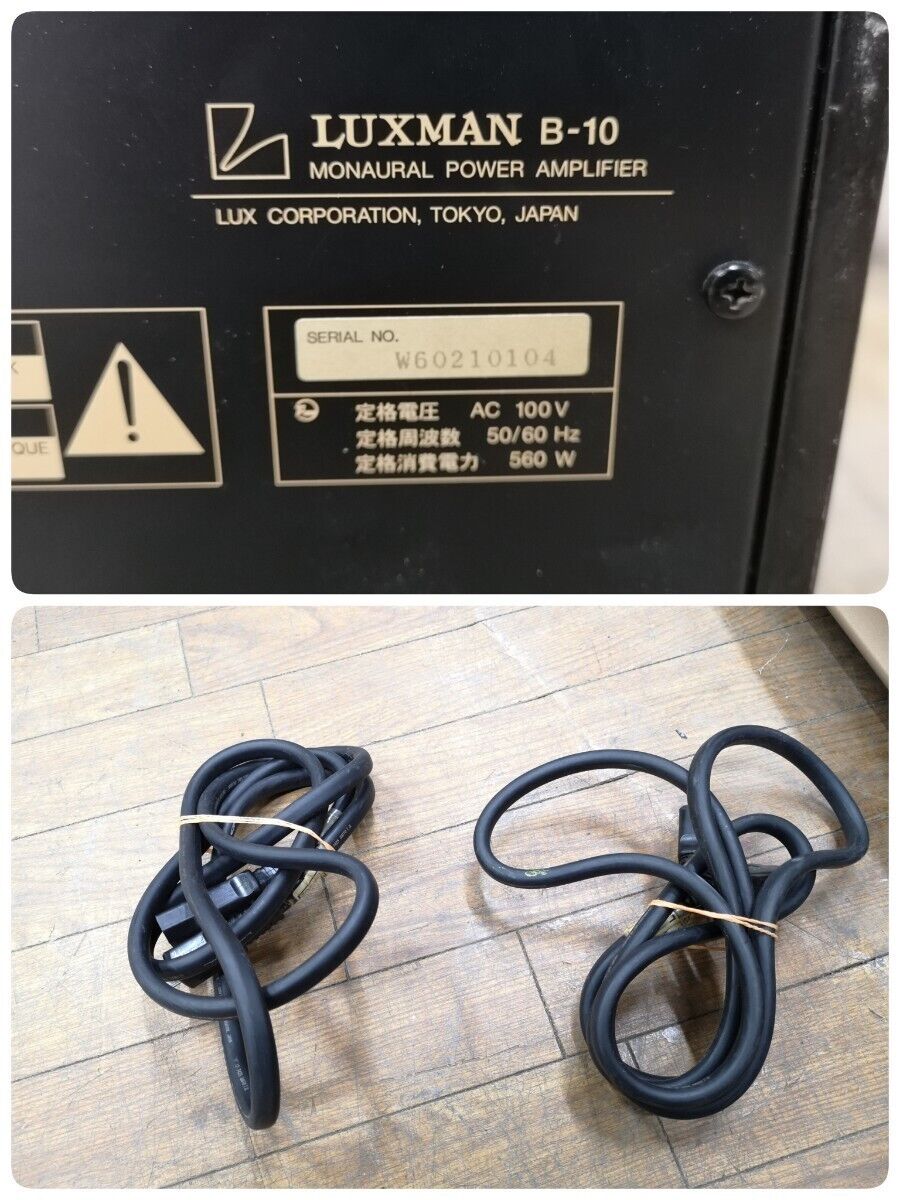

Model monaural power amplifier
Continuous effective output 1000W (4Ω)
500W(8Ω)
Input sensitivity 1V/500W (8Ω)
Input impedance Coaxial:50kΩ
Balance:100kΩ
Gain 36dB
Total harmonic distortion rate 0.04% (20Hz to 20kHz)
Frequency characteristics 20Hz to 20000Hz +0 -0.1dB
10Hz~100,000Hz +0 -1.0dB
SN ratio (IHF-A) 115dB
Attached equipment Coaxial-Balance input attenuator
line phase sensor
Power supply voltage AC100V, 50Hz/60Hz
Power consumption 560W (Electrical Appliance and Material Control Law)
External dimensions Width 467x Height 233x Depth 482mm
Weight 43.5kg
