The drive mechanism uses the highly rigid original mechanism "LxDTM". In the digital circuit, Burr-Brown's "PCM1792A" is used in a dual configuration (mono mode) for the DAC. In addition, it is equipped with a jitter reduction function that reduces the jitter of the system clock to about 1/100 of the conventional level, and a bit extender function that expands the 16-bit CD signal to 24 bits. In the analog circuit, the differential output of DC operated in mono mode is input to a high-quality buffer circuit with a fully balanced configuration, and the next-stage amplifier is driven with low impedance. In addition, a stable power environment is created by passing the power from the audio-only power transformer through independent regulators and large-capacity block capacitors for each circuit.
■Supported discs: 2-channel SACD, CD

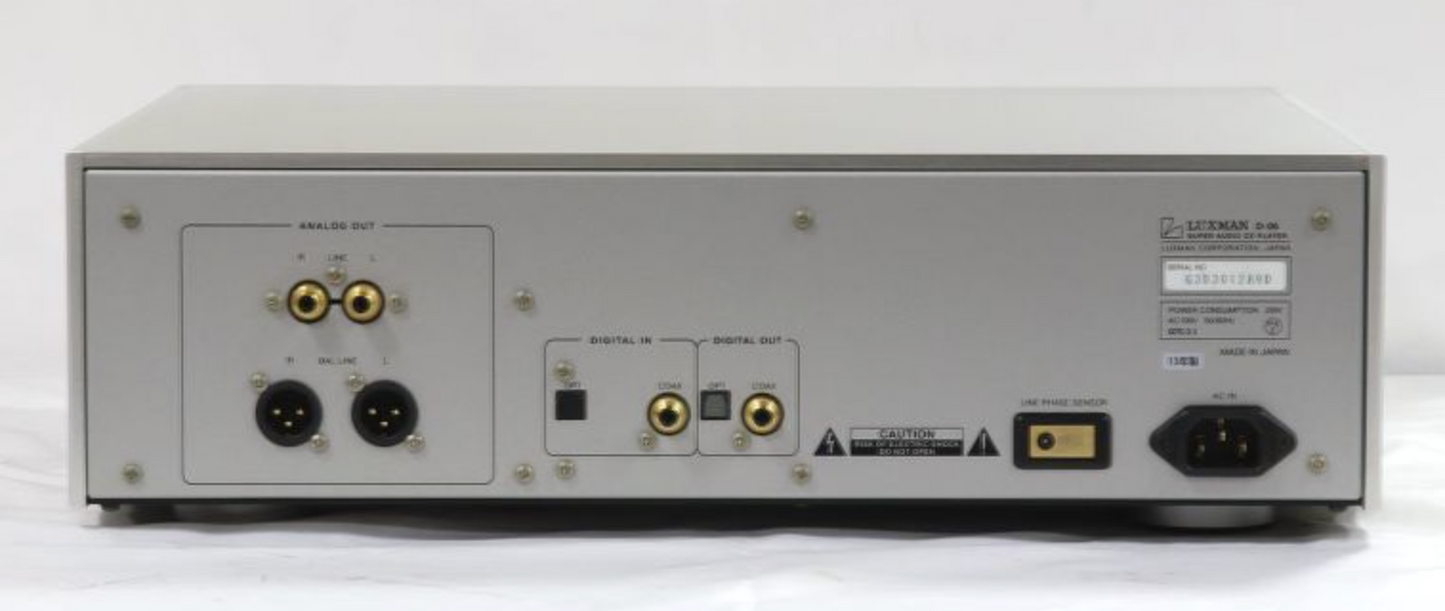

■Analog output: 1 unbalanced, 1 balanced
■Digital output (44.1KHz, CD/CD layer only): 1 coaxial, 1 optical
■Digital input (32, 44.1, 48, 88.2, 96KHz): 1 coaxial, 1 optical ■Frequency response: CD: 5Hz to 20KHz (-0.4dB), SACD: 5Hz to 50KHz (-3dB) ■Total harmonic distortion: 0.0014% (CD), 0.0017% (SACD/DSD), 0.0007% (SACD/PCM)
■S/N ratio: 124dB (CD), 104dB (SACD/DSD), 120dB (SACD/PCM) ■Power consumption: 24W (Electrical Appliance and Material Safety Act), 1W (standby)

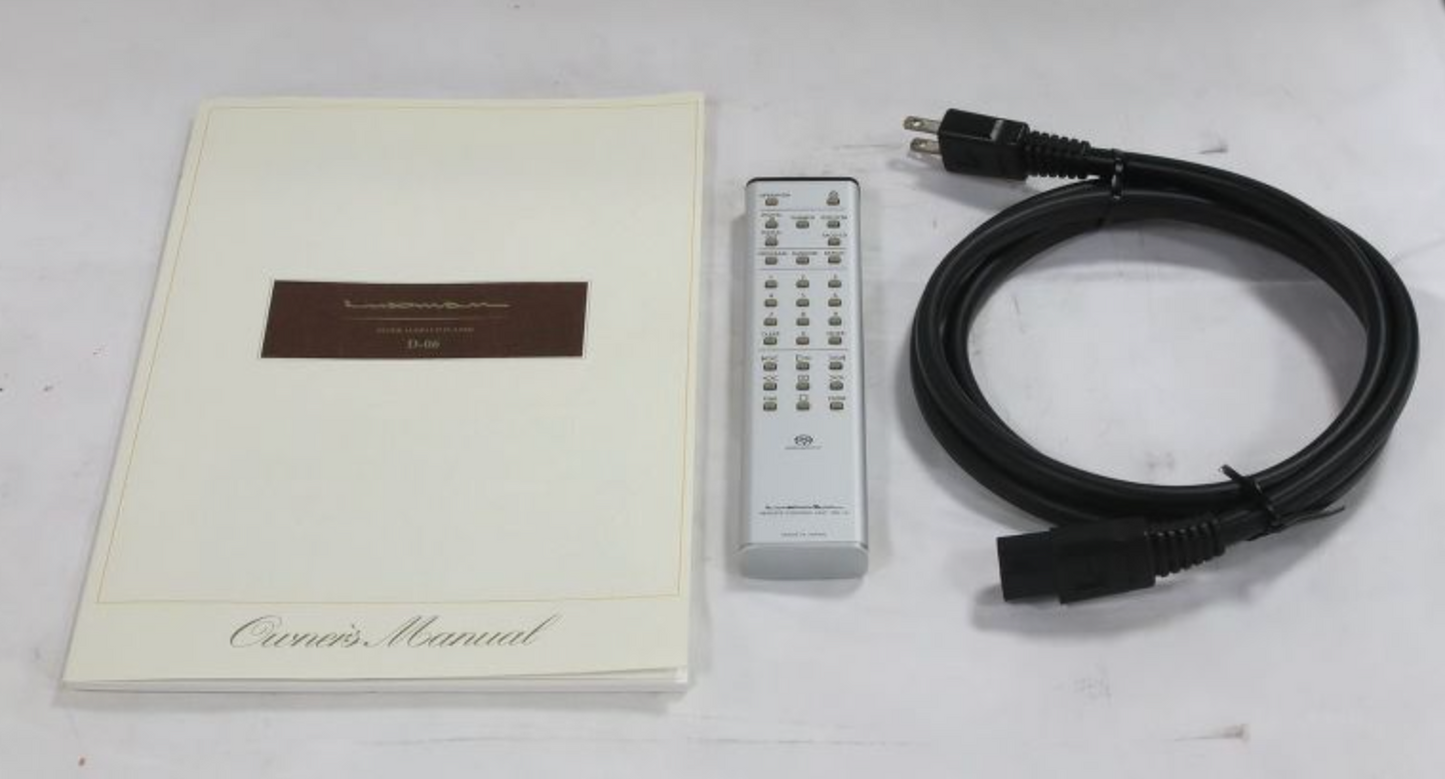

Accessories: Instruction manual, remote control, power cable
Size: W (width): 440 mmH (height): 133 mmD (depth): 410 mm
Weight: 15.5 kg
