SACD player with built-in USB-DAC that supports 384kHz/32bit PCM and 5.6MHz/2.8MHz DSD playback. It adopts an asymmetrical left-side mechanical layout, and the drive mechanism is equipped with the highly rigid original disk drive mechanism LxDTM. The DAC chip is equipped with TI's "PCM1792A" that achieves high S/N and dynamic range (theoretical value 132dB) in a dual configuration (mono mode). USB is reduced jitter by a dedicated DSP through asynchronous transmission, CD and S/PDIF are reduced jitter by the built-in DAIR high-precision clock, and SACD is reduced jitter by a dedicated jitter reduction chip. The analog circuit inputs the differential output of the DAC operated in mono mode to a high-quality buffer circuit with a fully balanced configuration (4 identically configured amplifiers), and powerfully drives the next stage amplifier with low impedance.

■Frequency response: CD: 5Hz to 20kHz (+0, -0.5dB), SACD: 5Hz to 50kHz (+0, -3.0dB), USB: 2Hz to 50kHz (+0, -3.0dB)

■Total harmonic distortion: CD: 0.0015%, SACD: 0.0011%, USB: 0.0009%

■S/N (IHF-A): CD: 122dB, SACD: 104dB, USB: 123dB

■Input terminals: USB, coaxial digital, optical digital (1 system each)

■Output terminals: Analog balanced (XLR), unbalanced (RCA), coaxial digital, optical digital (1 system each)

■Power consumption: 28W (1W in standby mode).

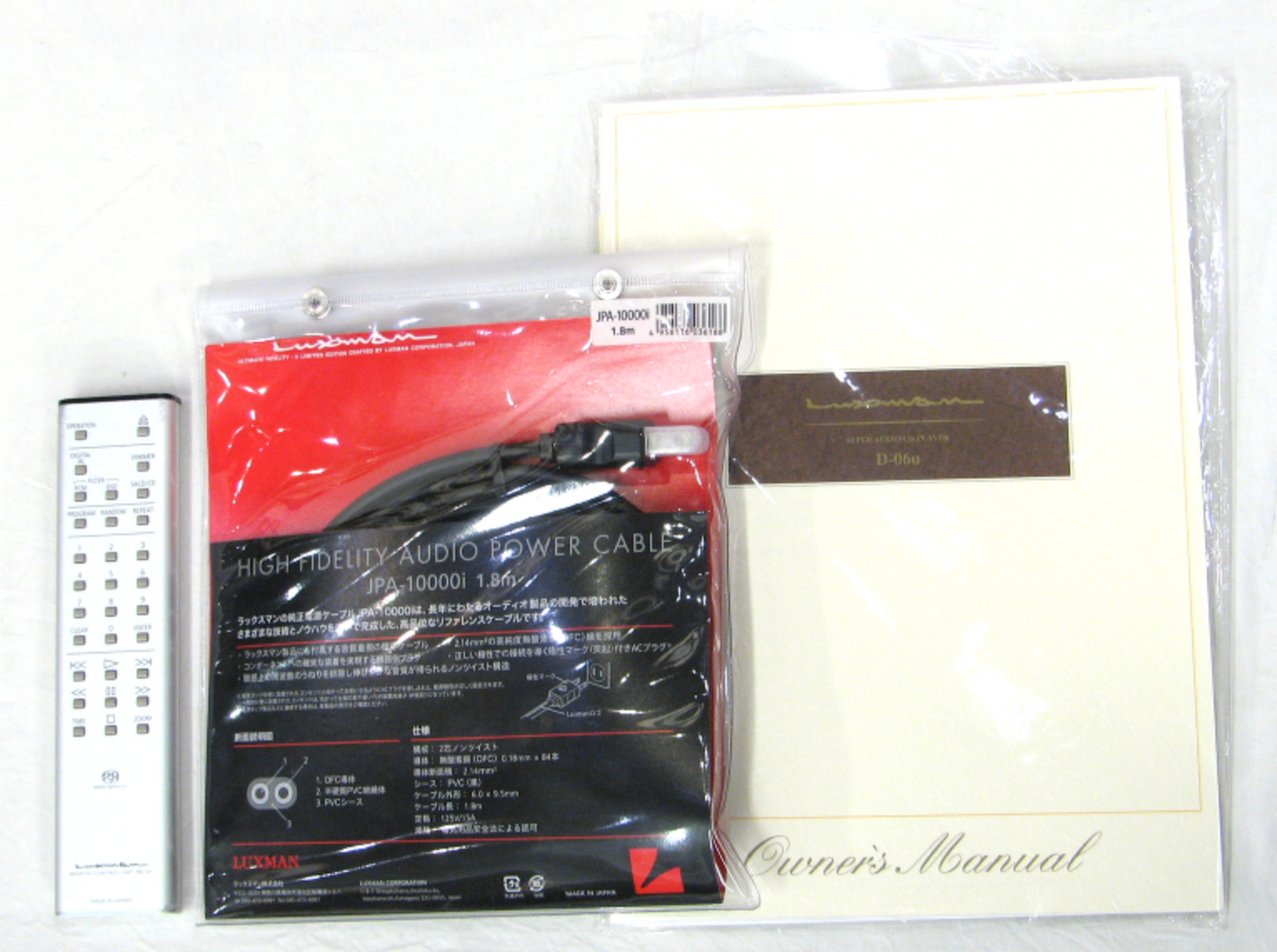

■Accessories: Instruction manual, remote control, power cable, installation software

Size: W (width): 440 mmH (height): 133 mmD (depth): 410 mm

Weight: 15.7 kg
