Format 2-channel D/A converter

Supported sampling frequency

COAX/OPT input:

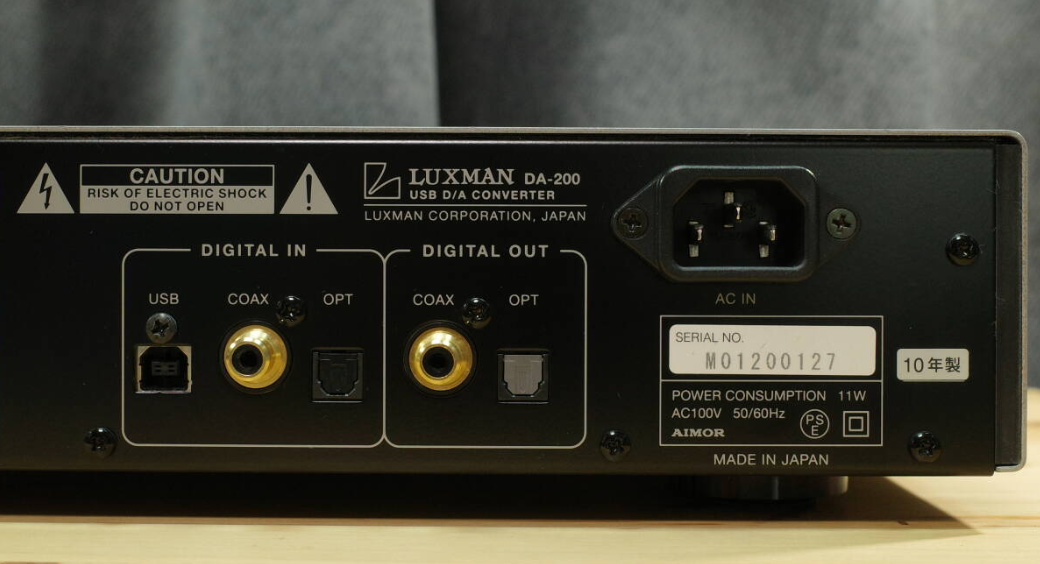

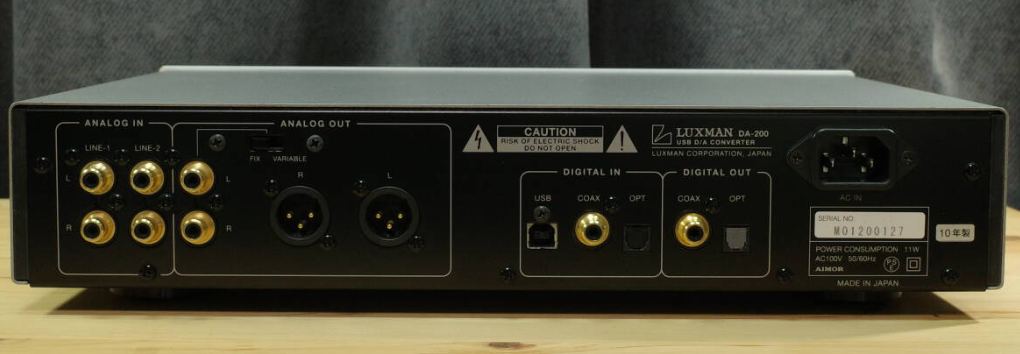

Digital input USB (B type), COAX, OPT

Digital output COAX, OPT

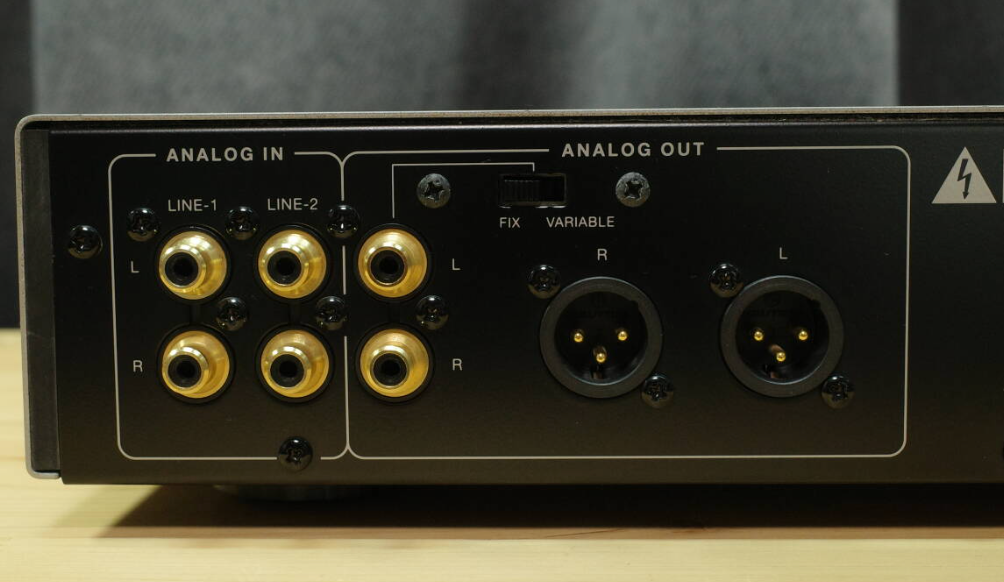

Analog input 2 unbalanced

Analog output 1 unbalanced (with fixed/variable output level switch)

1 balanced (output level is always fixed, pin 3 HOT)

Headphone 1

Line input sensitivity/

Input impedance 290mV/24kΩ

Line output voltage Unbalanced: Digital input (fixed output) 2.5V

(Variable output) 8.7V, Analog input (fixed output) 290mV

(Variable output) 1.0V (maximum output 10.0V)

Balanced: 2.5V

Headphone output 130mW+130mW (600Ω), 80mW+80mW (32Ω), 40mW+40mW (16Ω)

Line output

Impedance Unbalanced: 400Ω, Balanced: 600Ω

Frequency response Digital input: 2Hz to 60kHz (+0, -3.0dB)

Analog input: 3Hz to 130kHz (+0, -3.0dB)

Total harmonic distortion Digital input: 0.0009% (unbalanced), 0.0006% (balanced)

Analog input: 0.003% (1kHz)

S/N ratio (IHF-A) Digital input: 119dB, Analog input: 103dB

Power supply voltage AC100V (50/60Hz)

Power consumption 11W (based on Electrical Appliance and Material Safety Law)

External dimensions 364 (width) x 81 (height) x 279 (depth) mm (including 14mm front knob, 8mm rear terminal)

Weight 5.1kg (main unit)

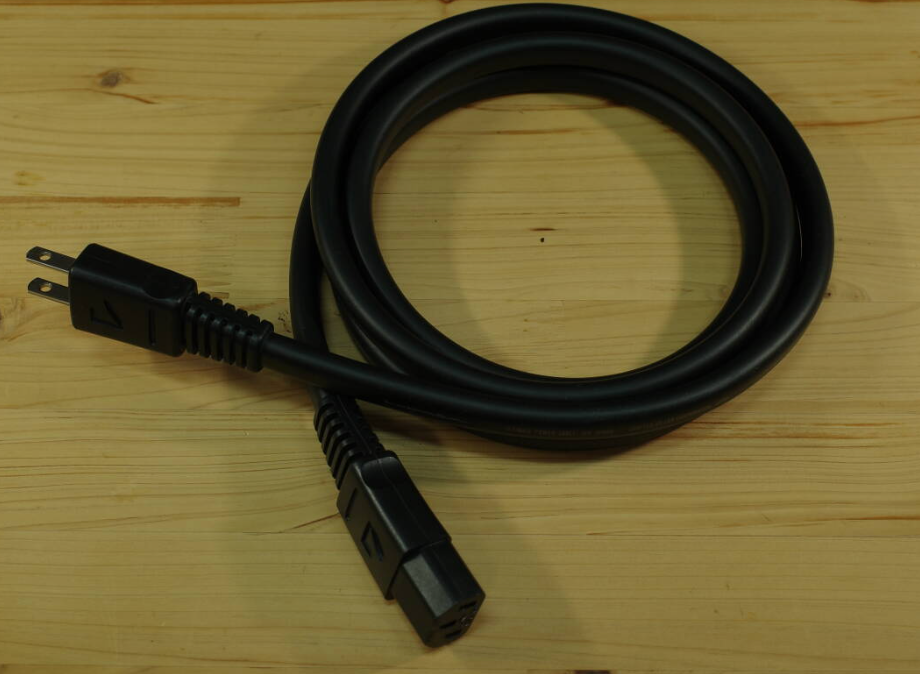

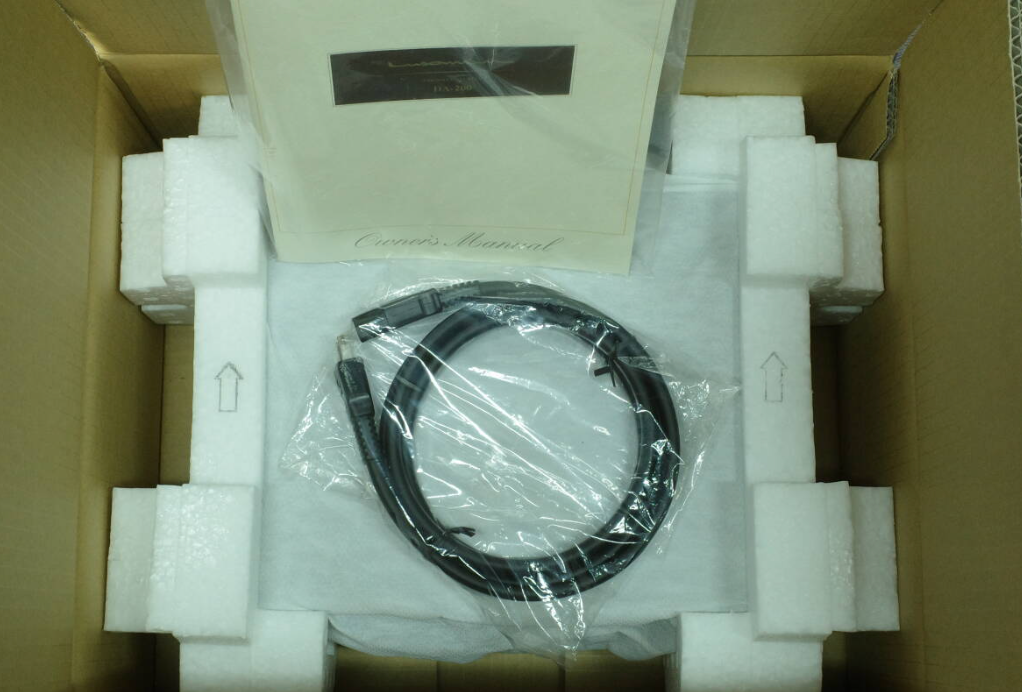

Accessories Power cable (JPA-10000)
