LUXMAN E-250 Compatible Phono equalizer amplifier Blaster With tracking 100V

LUXMAN E-250 Compatible Phono equalizer amplifier Blaster With tracking 100V

$1,210.00 USD

$1,210.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Condition: New	Supported Modes: NA
Receiver Combo Features: NA	Color: White
UPC: 4958136005122	MPN: E-250
Year Manufactured: 2016	Surround Sound Formats: NA
Audio Outputs: NA	Number of Outputs: NA
Brand: LUXMAN	Type: Phono equalizer amplifier
Audio Inputs: NA	Unit Type: Unit
Number of Channels: NA	Output: 1 unbalanced system
Number of Inputs: NA	Model: LUXMAN E-250
Features: NA	Unit Quantity: 1
Country/Region of Manufacture: Japan	Power: NA

Description

・Circuit method: NF type equalizer (RIAA)

・Input sensitivity (1kHz): MM 3.2mV, MC HIGH 0.37mV, MC LOW 0.12mV

・Input impedance:

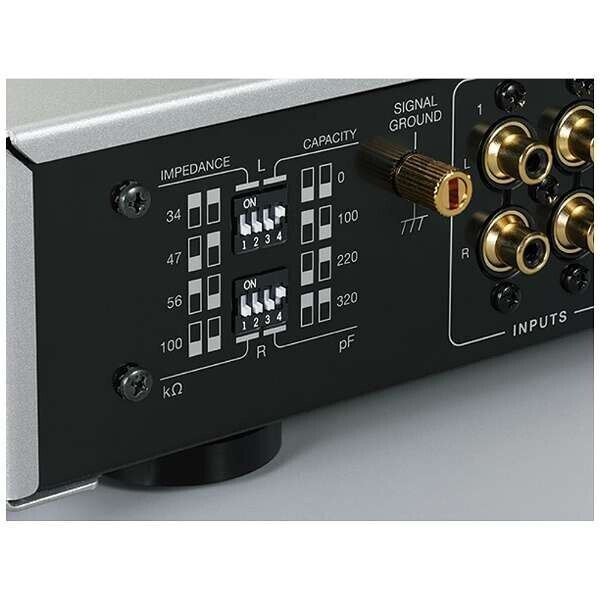

MM 34kΩ, 47kΩ, 56kΩ, 100kΩ (switchable)

　MC HIGH 40Ω, MC LOW 2.5Ω

・Rated output / output impedance: 250mV / 300Ω

・Gain (1kHz): MM 38dB, MC HIGH 57dB, MC LOW 66dB

・Maximum allowable input (1kHz): MM 120mV, MC HIGH 15mV, MC LOW 5mV

・RIAA deviation:

MM 20Hz ~ 20kHz (±0.3dB)

　MC HIGH / MC LOW 20Hz ~ 20kHz (±0.5dB)

・Total harmonic distortion rate: 0.003%

・S/N ratio (IHF-A): MM 90dB, MC HIGH 83dB, MC LOW 80dB

・Channel separation (10kHz): 91dB or more

・Input: 2 unbalanced systems

・Output: Unbalanced 1 system

・Power supply voltage: AC100V (50 / 60Hz)

・Power consumption: 6W (according to the provisions of the Electrical Appliance and Material Safety Law)

・External dimensions: 364 (width) x 81 (height) x 274 (depth) mm *Depth includes front knob 6mm and rear terminal 11mm

・Weight: 4.3kg (main unit), 6.0kg (standard packaging)

・Accessories: Power cable (JPA-10000: with polarity mark)
