Description
Revolutionary clean power system that brings out the true value of components
"Power source" is the energy source to operate audio equipment. Its quality is an extremely important factor in determining listening satisfaction. However, there are many electrical appliances in the home that distort the power supply or generate noise, which significantly impedes the high-fidelity performance of audio equipment whose purpose is pure signal transmission. Luxman's first clean power supply system, the ES-1200, uses a newly developed synchronized delta collector circuit (sine wave differential synchronization correction circuit) to reduce distortion of a household AC100V power supply. This is a power supply system that brings out the best operating environment and potential of components by supplying clean power of up to 1,200VA (including internal losses) to various audio equipment.
■ Main features
power circuit
The ES-1200 is a voltage-corrected clean power supply system that removes distortion and noise from the power supply and creates the ideal power supply energy for audio equipment. The newly developed synchronized system compares the input power with the built-in PCM digital 50kHz/16bit high-resolution sine wave data (50Hz/60Hz automatic switching) at precise timing, and processes only the difference calculation output as a correction signal. -Delta collector circuit (sine wave differential synchronization correction circuit) achieves thoroughly low distortion (compatible with a wide range of input voltages from 90 to 110 VAC). By amplifying the output using 6 parallel-connected power elements, a maximum power supply of 1,200VA (including internal losses) is secured. In addition, correction processing is performed only on the cold (NEUTRAL) side of the power supply, and a direct coupling method is used where there are no parts inserted in series between the input and output on the hot (LIVE) side. It achieves high-speed response to load fluctuations without impairing the transient characteristics of audio equipment. Furthermore, each AC outlet is equipped with an independent high-frequency noise filter. It not only corrects distortion of the power supply waveform, but also eliminates harmonic noise mixed into the power supply.
Mechanism, equipment, etc.

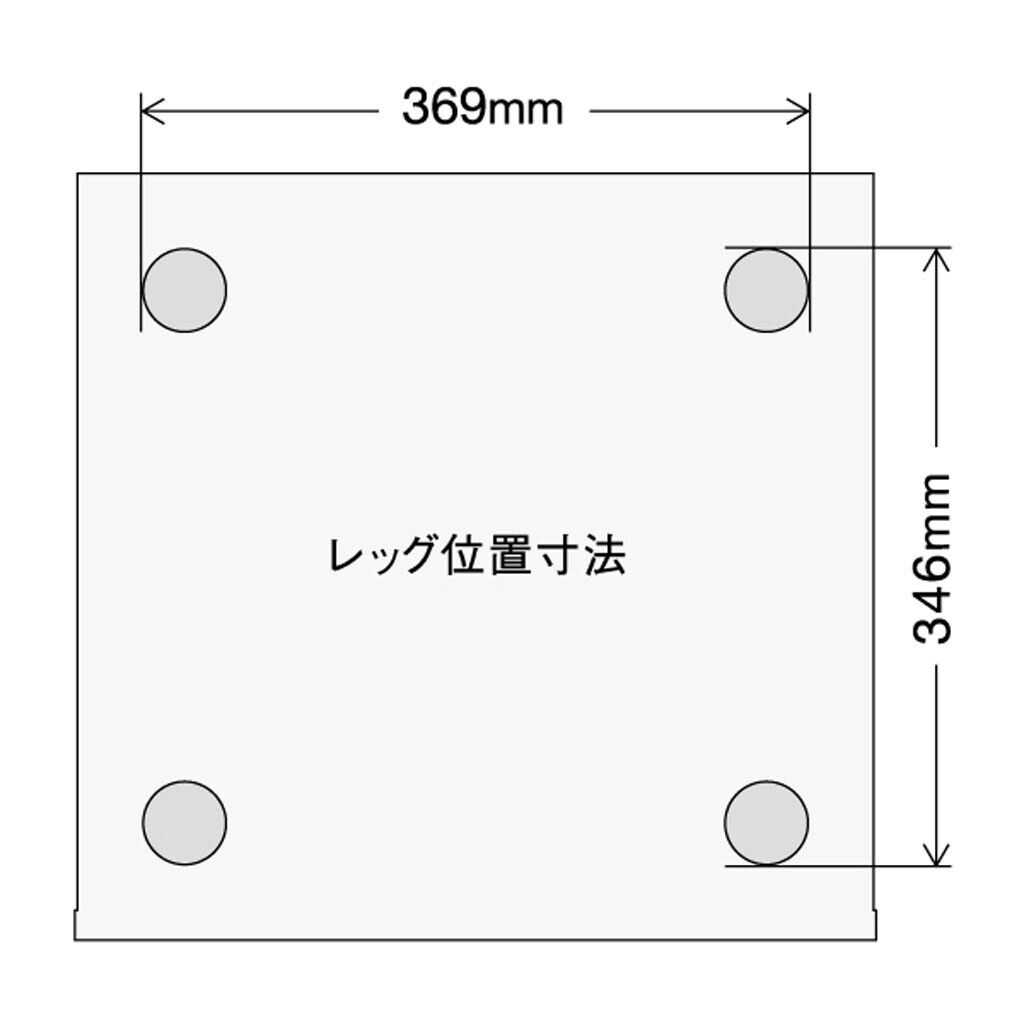

The exterior of the ES-1200 features a detailed blaster white panel finish that matches other Luxman components. Equipped with an ultra-high efficiency power supply circuit, we have achieved a lightweight (17.5kg) casing. The back is equipped with 8 output Panasonic hospital grade AC outlets that boast high quality and reliability. It is also equipped with thorough protection functions such as a circuit protector that works with the power switch and a silent fan for forced air cooling that operates above a certain internal temperature. The front panel features an 8-stage LED output level meter that visualizes power usage status in real time, and a 7-segment LED that displays more detailed status (input/output voltage, input/output distortion, output VA). Equipped with a multi-function display. The AC inlet is equipped with high-quality parts that are gold-plated and non-magnetic treated, and the insulator is equipped with gradation cast iron legs that prevent resonance. The power cable comes with an extra thick cable JPA-15000 with a 3.5 square non-twist structure. Furthermore, with our unique premium extended warranty, we have a free warranty period of 7 years and a complete support system.
■ Main specifications
〇 Rated output capacity 1,200VA (including internal loss)
〇 Maximum peak power 2,000VA
〇 Rated output voltage AC100±1V
〇 Output frequency 50 / 60Hz (synchronized to input frequency)
〇 Output waveform distortion rate 0.1% or less
〇 Rated input voltage AC100V (input voltage range AC90V to 110V)
〇 Input frequency 50/60Hz
〇 Cooling method Natural air cooling + forced air cooling (operates above a certain internal temperature)
〇 Power consumption 20W (at no load)
〇 External dimensions 440 (width) × 179 (height) × 421 (depth) mm
〇 Depth includes front window 3mm and rear terminal 12mm
〇 Weight 17.5kg (main unit), 21.4kg (standard packaging)
〇 Accessories Power cable (JPA-15000: with polarity mark)
