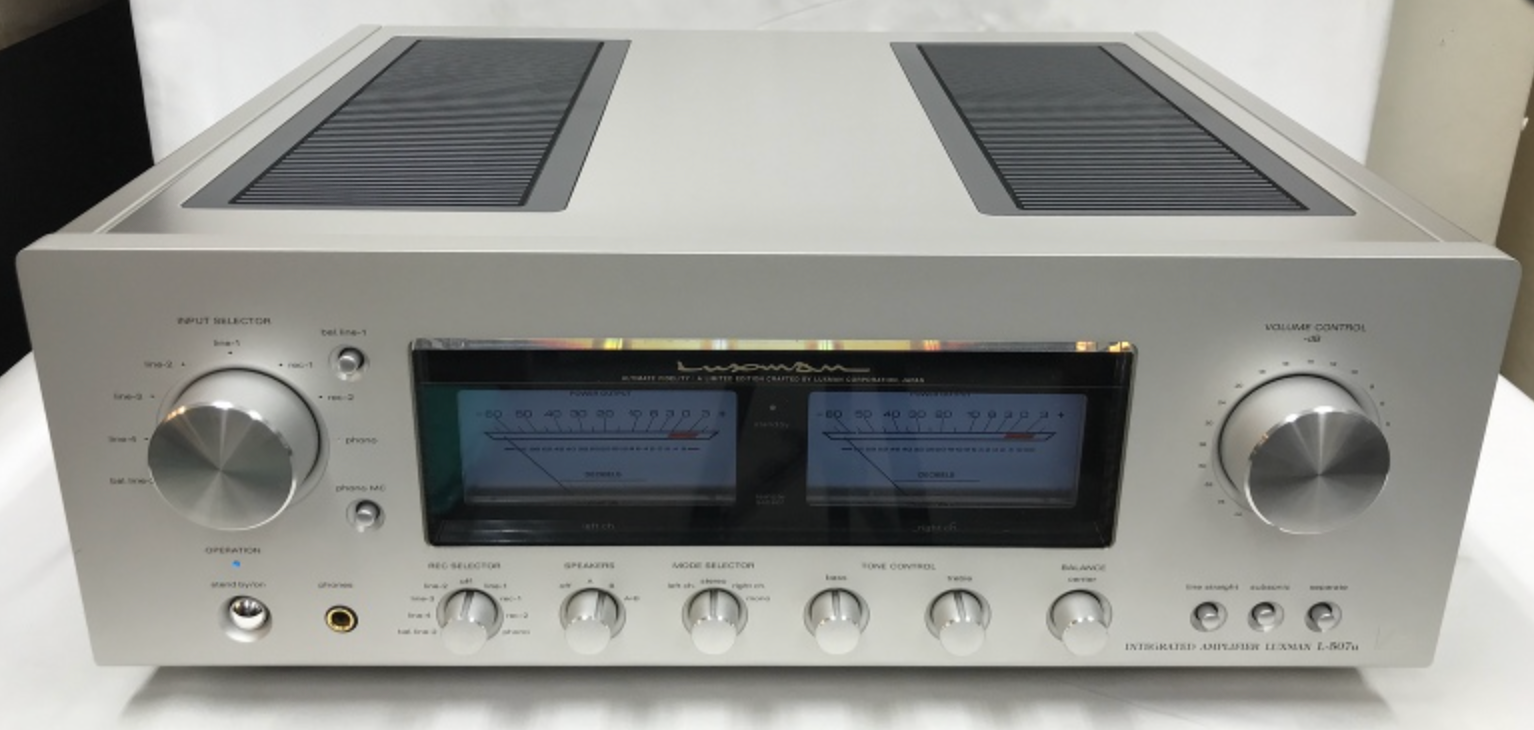

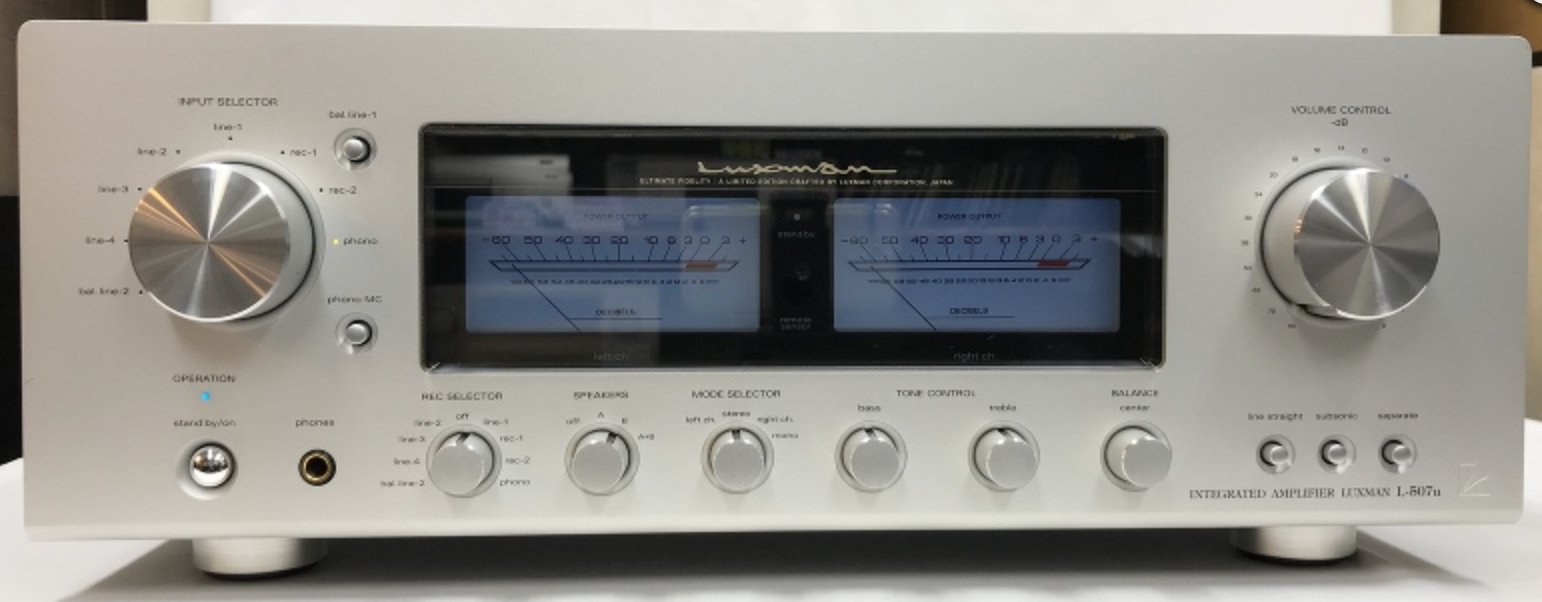

Luxman L-507u Integrated Amplifier

A preamplifier with a rated output of 200W (at 4Ω load) class AB. The latest version 3.0 of the unique high-quality feedback circuit ODNF, which has a parallel error detection section, is used for the first time in a preamplifier at the center of the amplifier section that controls the sound quality. The low impedance of the error detection circuit has significantly improved various characteristics such as distortion rate and S/N ratio. A separate switch is used to separate the preamplifier and power amplifier.

Continuous effective output

110W + 110W (8Ω), 200W + 200W (4Ω)

Input sensitivity/input impedance

PHONO (MM): 2.5mV/47kΩ

PHONO (MC): 0.3mV/100Ω

LINE: 180mV/42kΩ

BAL.LINE: 180mV/79kΩ

MAIN-IN: 1.05V/51kΩ

Output voltage

RECORDER: 180mV

PRE-OUT: 1V

Frequency response

PHONO: 20Hz to 20kHz (±0.5dB)

LINE: 20Hz to 100kHz (±0, -3.0dB)

Total harmonic distortion

0.004% or less (8Ω, 1kHz)

0.03% or less (8Ω, 20Hz to 20kHz)

Total harmonic distortion

0.08%

S/N ratio (IHF-A)

PHONO (MM): 91dB or more

PHONO (MC): 75dB or more

LINE: 107dB or more

Amplification circuit

ODNF3.0

Output configuration

Bipolar parallel PP

Power transformer

EI type 560VA

Damping factor

190

Maximum tone control change

BASS: ±10dB at 100Hz

TREBLE: ±10dB at 10kHz

Power supply voltage

AC100V (50/60Hz)

Power consumption

250W (based on Electrical Appliance and Material Safety Law)

84W (no signal), 1.2W (standby)

Accessories

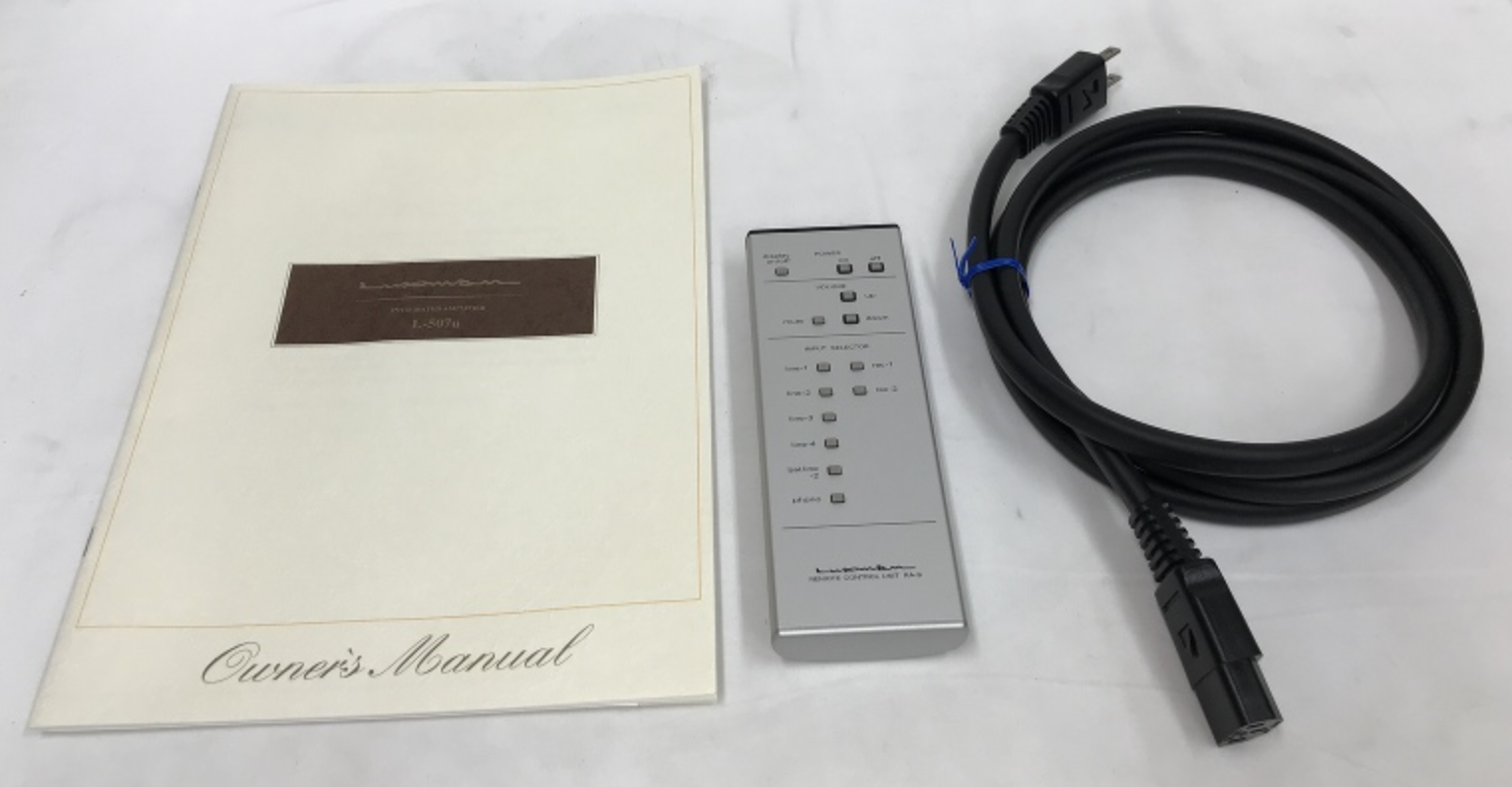

Instruction manual, remote control, power cable, original box

Dimensions

467 (width) x 179 (height) x 430 (depth) mm

Weight

22.5kg (main unit)
