LUXMAN L-507uX Integrated Amplifier AC100V

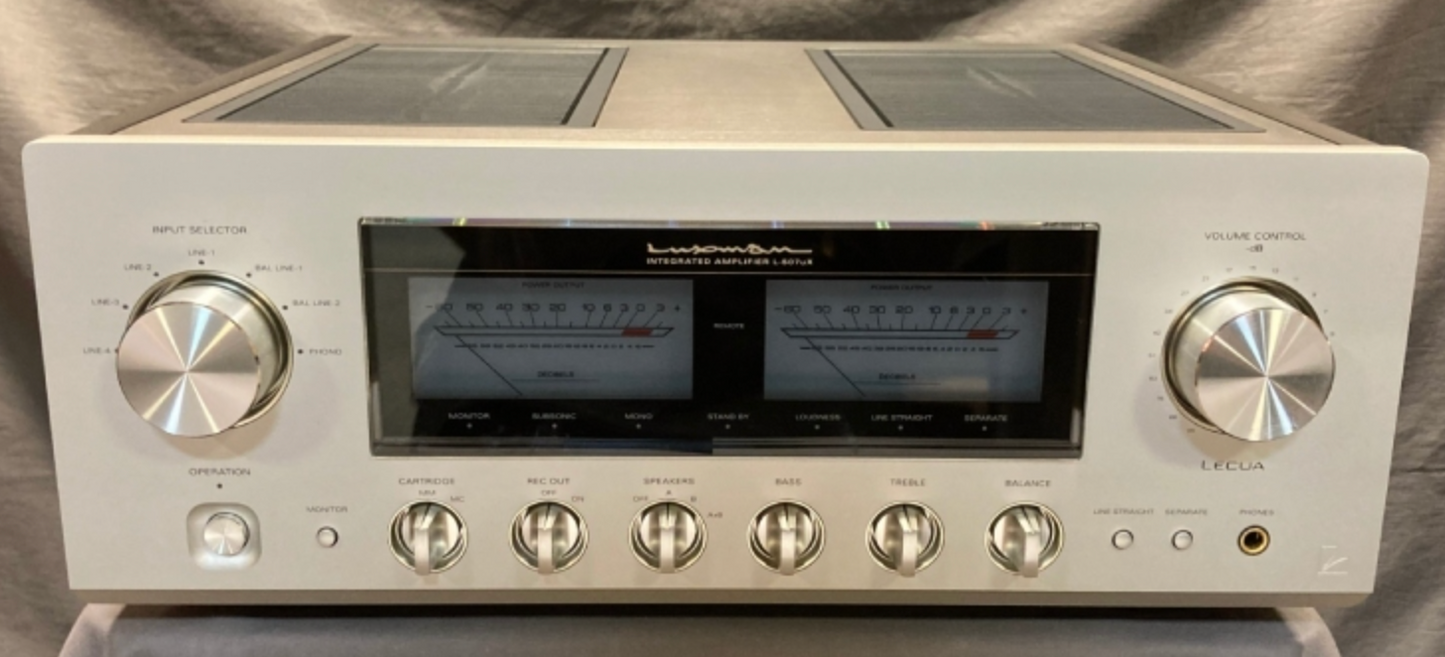

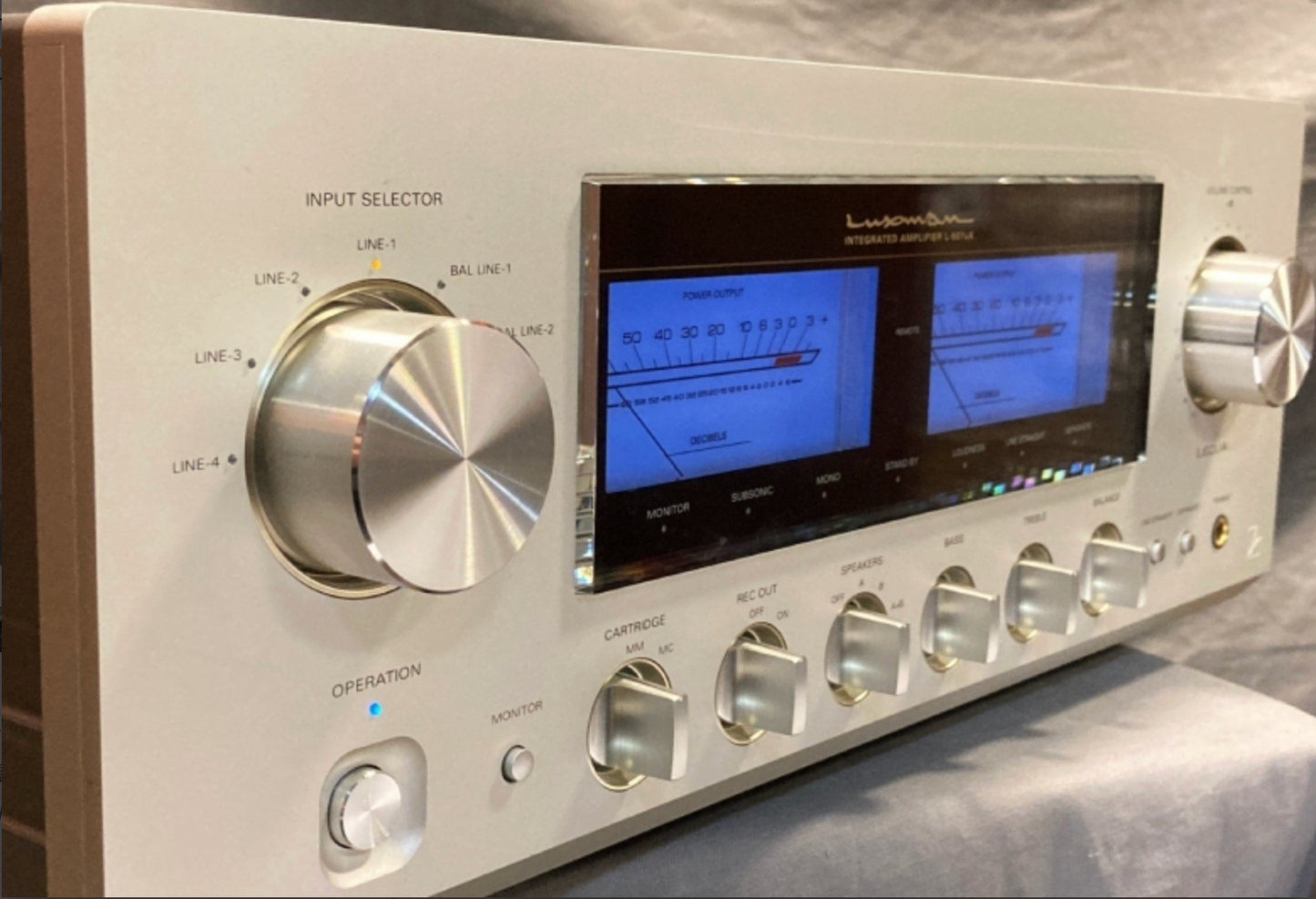

The symmetrical front face design is centered around the distinctive needle-type meter. Equipped with the electronically controlled attenuator "LECUA". The power amplifier is class AB, and is equipped with version 3.0 of the company's proprietary high-quality feedback circuit "ODNF", which improves distortion performance by parallelizing the error detection section. In addition, high output is achieved by adopting a 3-parallel push-pull configuration. Continuous effective output is 110W + 110W (8Ω), 220W + 220W (4Ω). A 3-parallel configuration of the final stage of the power amplifier section is realized, which is the first in its class.

■Continuous effective output: 110W + 110W (8Ω), 220W + 220W (4Ω)

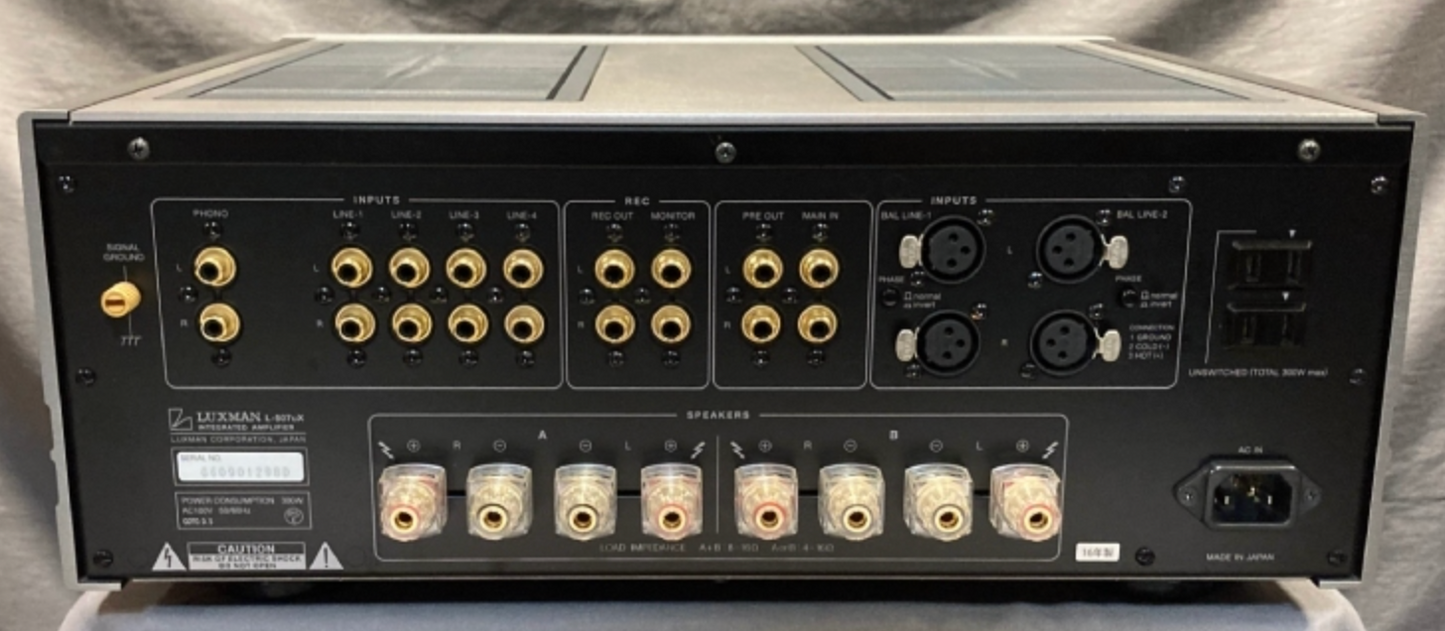

■Input/output: 4 line systems, 1 phono system (MM/MC switchable), 2 balanced line systems, 1 recording input/output system, 1 separate input/output system

■Total harmonic distortion: 0.007% or less (1kHz / 8Ω), 0.08% or less (20Hz to 20kHz / 8Ω)

■S/N ratio: 105dB or more (line)

■Frequency response: 20Hz to 100kHz (+0, -3.0dB)

■Power consumption: 300W (Electrical Appliance and Material Safety Act), 86W (no signal), 0.4W (standby)

Size W (width): 440 mm H (height): 177 mm D (depth): 454 mm

Weight 23.9 kg
