LUXMAN L-507uXII L-507uX Mark II Integrated Amplifier

LUXMAN L-507uXII L-507uX Mark II Integrated Amplifier

Regular price $3,467.50 USD
Regular price Sale price $3,467.50 USD
Sale Sold out
Shipping calculated at checkout.
Condition: Used Brand: LUXMAN
Type: Integrated Amplifier Unit Type: Unit
Custom Bundle: No Color: Silver
Model: L507UX2 MPN: L507UX2
Country/Region of Manufacture: Japan Unit Quantity: 1

Description

○ Continuous effective output 110W + 110W (8Ω), 220W + 220W (4Ω)
○ Input/Output 4 line systems, 1 phono system (MM / MC switchable), 2 balanced line systems, 1 recording input/output system, 1 separate input/output system
○ Speaker output A, B 2 systems (AB simultaneous output possible)
○ Amplification circuit, output configuration ODNF4.0, bipolar 3 parallel push-pull
○ Input sensitivity / input impedance
・PHONO (MM): 2.5mV / 47kΩ, PHONO (MC): 0.3mV / 100Ω,
・LINE: 180mV / 47kΩ, MAIN-IN: 1.05V / 47kΩ
○ Total harmonic distortion 0.007% or less (1kHz / 8Ω), 0.02% or less (20Hz to 20kHz / 8Ω)
○ S/N ratio, frequency response Line: 105dB or more, 20Hz to 100kHz (+0, -3.0dB)
○ Accessories

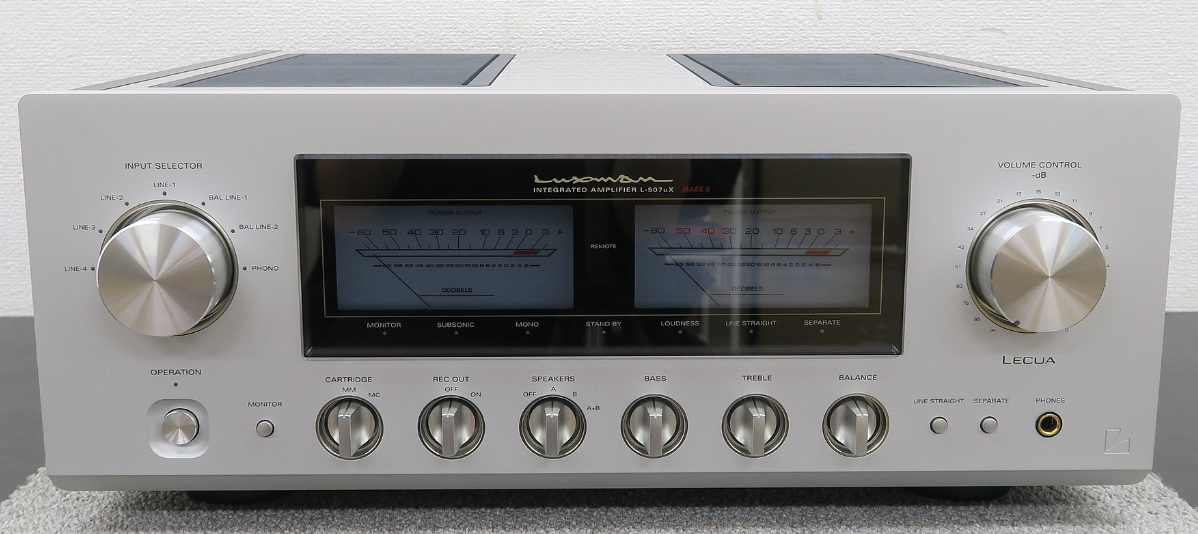

[Front panel]
Power switch, input selector, volume, headphone jack, cartridge (MM/MC)
REC OUT ON/OFF, speaker selector (OFF/A/B/A+B), tone control (BASS/TREBLE), LR balance, monitor line straight, separate
[Can only be operated with remote control]
Subsonic, mono, loudness, mute, meter illumination

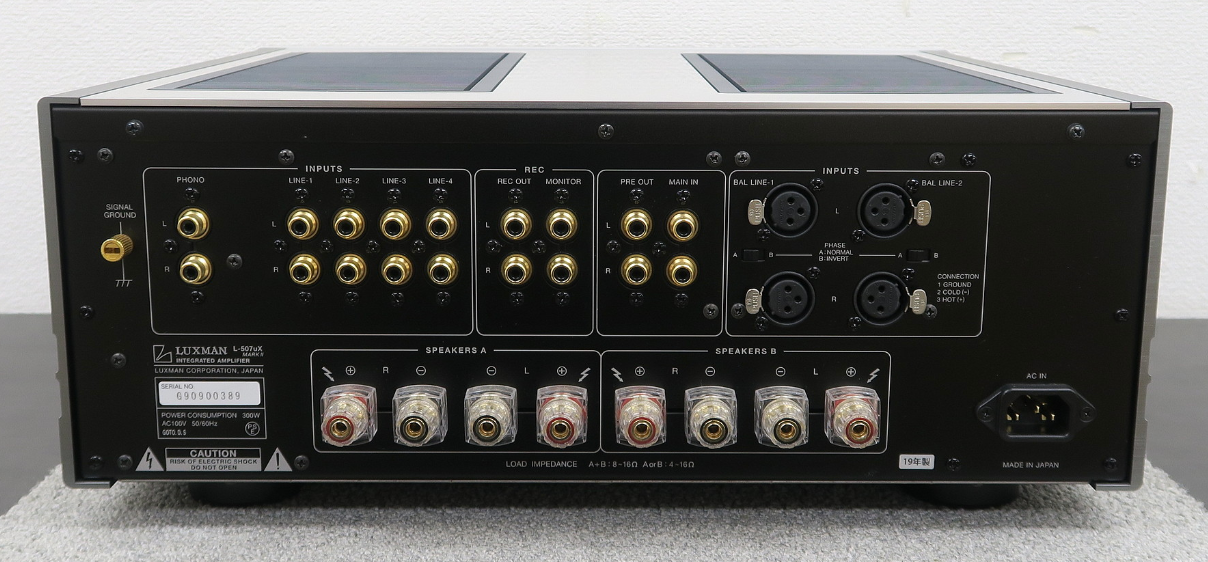

[Rear panel]
Input/output terminals, ground terminal, balanced phase switch, AC inlet
○ Power consumption 300W (Electrical Appliance and Material Safety Act), 86W (no signal), 0.4W (standby)
○ External dimensions, weight 440 (W) x 178 (H) x 454 (including front knob 20mm, rear terminal 27mm) (D) mm, 25.0kg

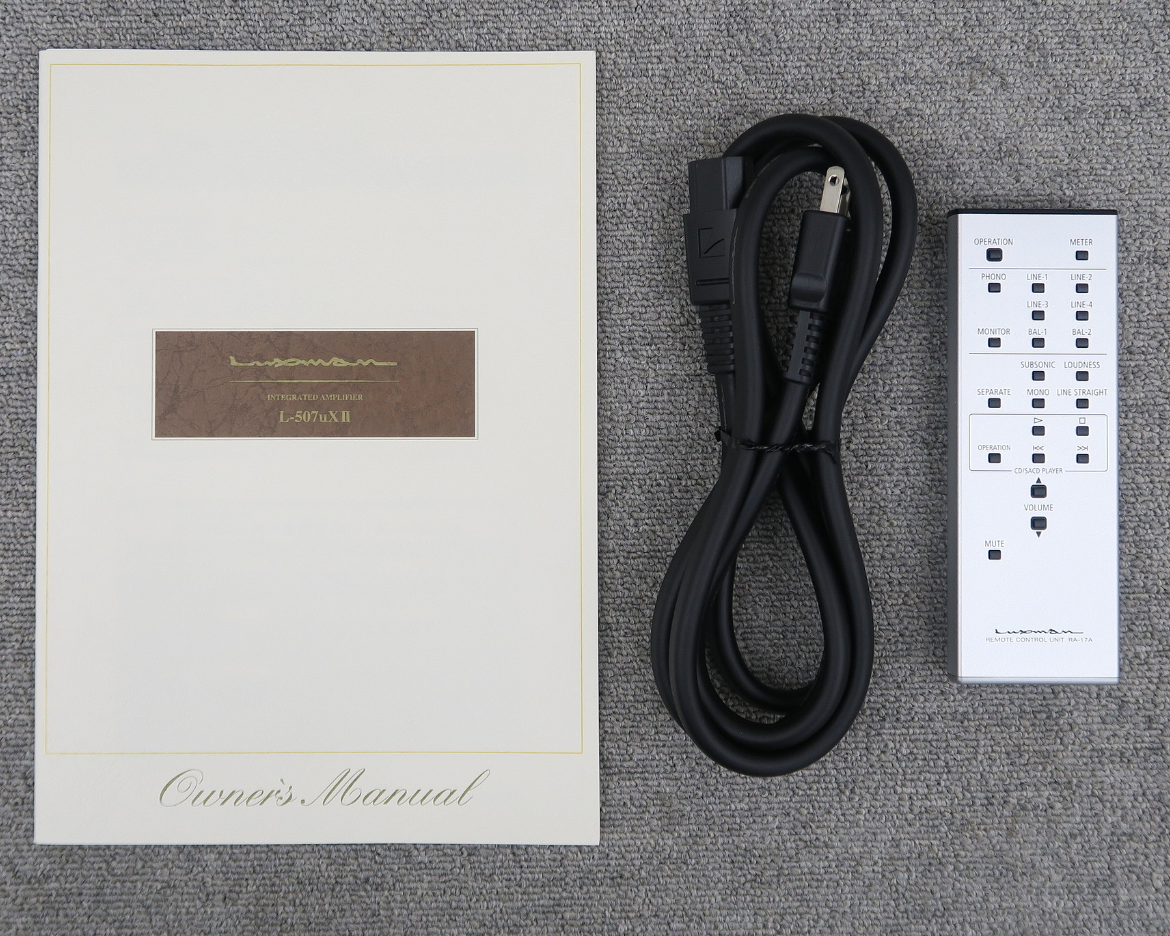

○ Accessories: Remote control (RA-17A), power cable (JPA-10000i), instruction manual
