The L-507Z completely redesigned the ODNF at the heart of the integrated amplifier X series, which was launched in 2010. This is the model that marks the beginning of the Z series, equipped with the latest high sound quality amplification feedback engine "LIFES" next to the flagship stereo power amplifier M-10X just announced in August.

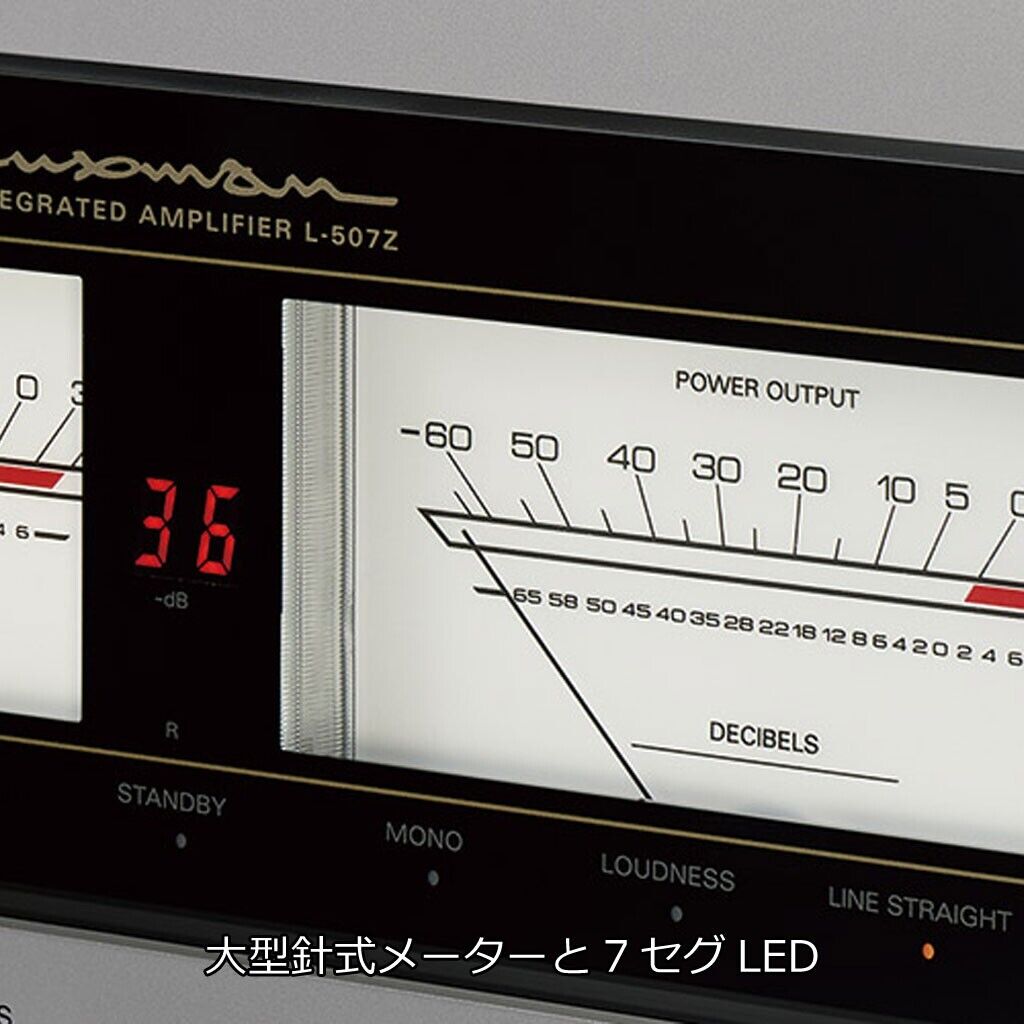

In addition, in order to further enhance the convenience of amplifier products required by modern music listeners, a 7-segment LED volume level display that makes it easy to check the volume from the listening position, and a Φ4.4mm headphone output terminal with independent left and right ground wiring. In 2025, we will celebrate the 100th anniversary of our founding. Luxman thoroughly researched a new style as a sophisticated all-in-one amp, and realized this model.
The high utility of a component that provides multiple functions in a single unit. And powerful and rich musicality by newly developed “LIFES”. The L-507Z, the first model of the integrated amplifier Z series that balances these ideally, has evolved far beyond its class and finally appears.
○ Rated output
・ 110W+110W (8Ω)
・ 220W+220W (4Ω)
○ Input Sensitivity / Input Impedance
・PHONO (MM): 2.5mV / 47kΩ
・PHONO (MC): 0.3mV / 100Ω
・ LINE : 180mV / 47kΩ
・BAL.LINE: 180mV / 79kΩ
・MAIN-IN: 1.05V / 47kΩ
〇 Output voltage PRE OUT: 1V
〇 Frequency characteristics
・ PHONO: 20Hz to 20kHz (within ±0.5dB)
・LINE: 20Hz to 100kHz (within -3.0dB)
〇 Total harmonic distortion
・ 0.007% or less (8Ω, 1kHz)
・ 0.03% or less (8Ω, 20Hz to 20kHz)
〇 S/N ratio (IHF-A)
・ PHONO (MM): 91dB or more
・PHONO (MC): 75dB or more
・ LINE : 105dB or more
〇 Volume control New LECUA1000
〇 Amplifier circuit LIFES 1.0
〇 Output configuration Bipolar, 3-parallel push-pull
〇 Power transformer EI type 560VA
〇 Damping factor 300 (by EIAJ current injection method)
〇 Tone control maximum amount of change
・BASS: ±8dB at 100Hz
・TREBLE: ±8dB at 10kHz
〇 Power supply voltage AC100V (50/60Hz)
〇 Power consumption
・ 300W (according to the provisions of the Electrical Appliance and Material Safety Law)
・ 86 W (at no signal)
・ 0.4W (at standby)
〇 External dimensions 440 (width) x 178 (height) x 454 (depth) mm
Depth includes front knob 20mm, rear terminal 27mm
〇 Mass 25.4kg (main unit), 29.4kg (standard packaging)
〇 Accessories Remote control (RA-17A)
〇 Power cable (JPA-10000i: with polarity mark)
〇 Y-lug terminal dimensions for speaker terminals
・ Outer diameter width: 15 mm or less
・ Inner diameter width: 8 mm or more
