LUXMAN L-509X Integrated Amplifier Class A audio music stereo NEW 100V

Innovative amplification feedback circuit, ODN F Ver.4.0

The original negative feedback circuit ODNF is a circuit that is the basis of Luxman's sound idea to obtain the speed of the initial slew rate and the ultra-wide band by feeding back only the distortion component from the output of the amplifier circuit.

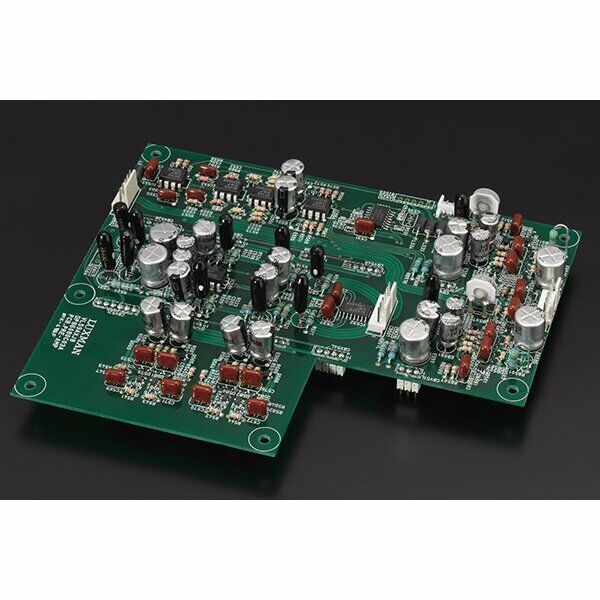

The latest version of ODNF Ver4.0 adopted by L-509X improves distortion detection accuracy by 3 parallelization of the first stage of the error detection circuit, and by connecting the first stage of the amplifier circuit in parallel and the second stage in Darlington connection. Achieves low impedance and high S / N ratio.

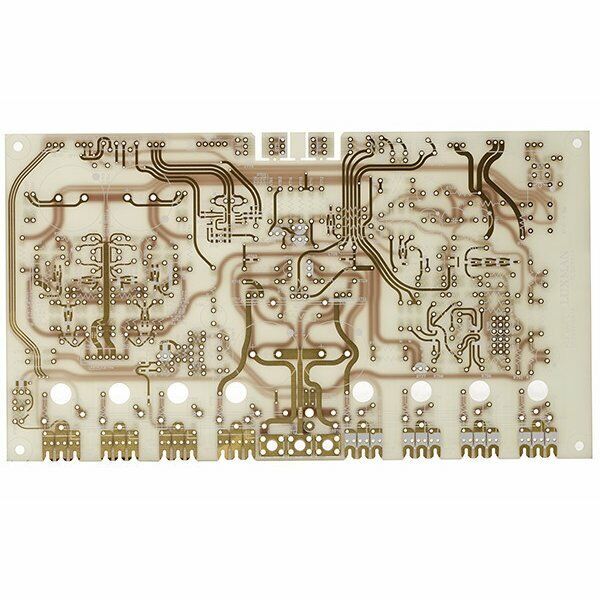

The output stage boasts a 3-stage Darlington 4-parallel push-pull configuration equivalent to the power amplifier M-700u, achieving complete output linearity of 120W + 120W (8Ω) and 240W + 240W (4Ω). By fully driving speakers of all characteristics, we have achieved both the dynamism of music and rich musical expression at a high level.

* ODNF is an abbreviation for Only Distortion Negative Feedback.

Product specifications of LUXMAN L-509X

Others ◁ERated output: 120W + 120W (8Ω), 240W + 240W (4Ω)

◁EInput sensitivity / input impedance

・ PHONO (MM): 2.5mV / 47kΩ

・ PHONO (MC): 0.3mV / 100Ω

・ LINE: 180mV / 47kΩ

・ BAL.LINE: 180mV / 55kΩ

・ MAIN-IN: 1.1V / 47kΩ

◁EOutput voltage

・ REC OUT: 180mV

・ PRE OUT: 1V

◁EFrequency characteristics

・ PHONO: 20Hz to 20kHz (within ± 0.5dB)

・ LINE: 20Hz-100kH (within z -3.0dB)

◁ETotal harmonic distortion: 0.007% or less (8Ω, 1kHz), 0.06% or less (8Ω, 20Hz to 20kHz)

◁ES / N ratio (IHF-A)

・ PHONO (MM): 91 dB or more

・ PHONO (MC): 75dB or more

・ LINE: 105 dB or more

◁EVolume control: New LECUA1000

◁EAmplifier circuit: ODNF4.0

◁EOutput configuration: Bipolar, 4 parallel push-pull

◁EPower transformer: EI type 600VA

◁EDamping factor: 370

◁EMaximum change in tone control

・ BASS: ± 8dB at 100Hz

・ TREBL E: ± 8dB at 10kHz

◁EPower supply voltage: AC100V (50 / 60Hz)

◁EPower consumption

・ 360W (according to the provisions of the Electrical Appliance and Material Safety Law)

・ 120W (when there is no signal)

・ 0.4W (during standby)

◁EExternal dimensions: 440 (width) x 193 (height) x 463 (depth) mm, depth includes front knob 20 mm, back terminal 37 mm

◁EWeight: 29.3kg (main body)

◁EAccessories: Remote control (RA-17A), power cable (JPA-15000: with polarity mark)
