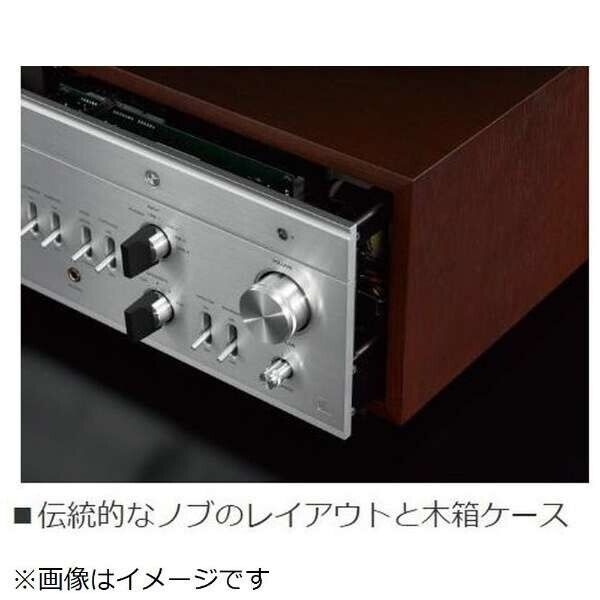

LUXMAN LX-380 Integrated Stereo Amplifier Vacuum Tube Audio 100V NEW
LUXMAN LX-380 Integrated Stereo Amplifier Vacuum Tube Audio 100V NEW
Regular price
$4,300.00 USD
Regular price
Sale price
$4,300.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Condition: New | Receiver Combo Features: N/A |
| Custom Bundle: No | Color: Silver |
| MPN: LX-380 | Year Manufactured: 2016 |
| Surround Sound Formats: N/A | Audio Outputs: PHONES, SPEAKERS |
| Number of Outputs: 2 | Brand: Luxman |
| Type: Integrated Amplifier | Audio Inputs: PHONO, LINE, BAL LINE |
| Unit Type: Unit | Number of Channels: 2 |
| Number of Inputs: 6 | Model: LX-380 |
| Features: Analog | Country/Region of Manufacture: Unknown |
| Unit Quantity: 1 | Power: 380 W |
| UPC: Does not apply |
Description
Rated output: 20W + 20W (6Ω), 18W + 18W (8Ω), 14W + 14W (4Ω)
Input, recording input/output, separate input/output: 4 line systems, 1 phono system (MM/MC switching), 1 recording input/output, 1 separate input/output
Speaker output: A, B2 systems (AB simultaneous output possible)
Amplification circuit, output configuration, vacuum tubes used: Mullard circuit + beam tube connection, push-pull, 6L6GC x 4, ECC82 x 3
Input sensitivity/input impedance: PHONO (MM): 3.0mV/47kΩ, PHONO (MC): 0.38mV/100Ω, LINE: 180mV/47kΩ
Total harmonic distortion: 1% or less (1kHz, 20W / 6Ω)
S/N ratio (IHF-A) / Frequency characteristics: Line: 95dB or more (line straight on) / 20Hz to 80kHz (+0, -3.0dB)
Attached equipment
[Front panel]
Power switch, volume volume, input selector, speaker selector (OFF/A/B/A+B), LR balance volume, cartridge selector (MM/MC), separate switch, tone control (BASS/TREBLE), turn Over switch, line straight switch, subsonic switch, loudness switch, monaural switch, monitor switch, headphone jack
[Rear panel]
Input/output terminal, speaker terminal, signal ground terminal, AC inlet
Power consumption: 116W (Electrical Appliance and Material Safety Law)
External dimensions: (W) 440 × (H) 197 × (D) 403 mm (depth includes front knob 25 mm and rear terminal 28 mm)
Weight: 17.6kg (body)
Accessories: Remote control (RA-25), power cable (JPA-10000: with polarity mark)
