The M-900u stereo power amplifier was created to bring out the best musical expression from your speaker system.
The generous drive power obtained by connecting the 4 parallel push-pull configuration output units in parallel allows for
We have achieved a rich gradation of sound quality, from the deeply sinking bottom end to the clean, fully extended top end.
The unique ODNF circuit, which combines dynamism and ultra-low distortion, has evolved to the latest version 4.0.
The large, transparent analog meter skillfully creates the pleasure of listening to music.
The delicately finished blaster white exterior design gently envelops the powerful power.
By making a BTL connection, it can also be used as a 600W (8Ω) ultra-high power monaural amplifier.
Rated output 150W+150W(8Ω)/stereo, 300W+300W(4Ω)/stereo, 600W(8Ω)/monaural
Instantaneous maximum output 1200W + 1200W (1Ω) / stereo, 2400W (2Ω) / monaural
Input sensitivity 1.24V/150W (8Ω), GAIN 29.0dB Input impedance Unbalanced 51kΩ, Balanced 34kΩ
Frequency characteristics 20Hz to 20kHz (+0, -0.1dB), 1Hz to 130kHz (+0, -3.0dB)
Total harmonic distortion rate 0.008% or less (1kHz/8Ω), 0.1% or less (20Hz to 20kHz/8Ω) S/N ratio (IHF-A) 117dB
Amplifier circuit ODNF4.0 Output configuration Bipolar 4 parallel push-pull x 2 Output configuration Bipolar 4 parallel push-pull x 2
Power transformer EI type 1,250VA Damping factor 710
Power supply voltage AC100V (50/60Hz) Power consumption 520W (according to the Electrical Appliance and Material Safety Law), 280W (no signal), 1.0W (standby)
External dimensions 440 (width) x 224 (height) x 485 (depth) mm, depth includes front knob 2 mm and rear terminal 38 mm Weight 48.0 kg (main unit), 54.0 kg (standard packaging)

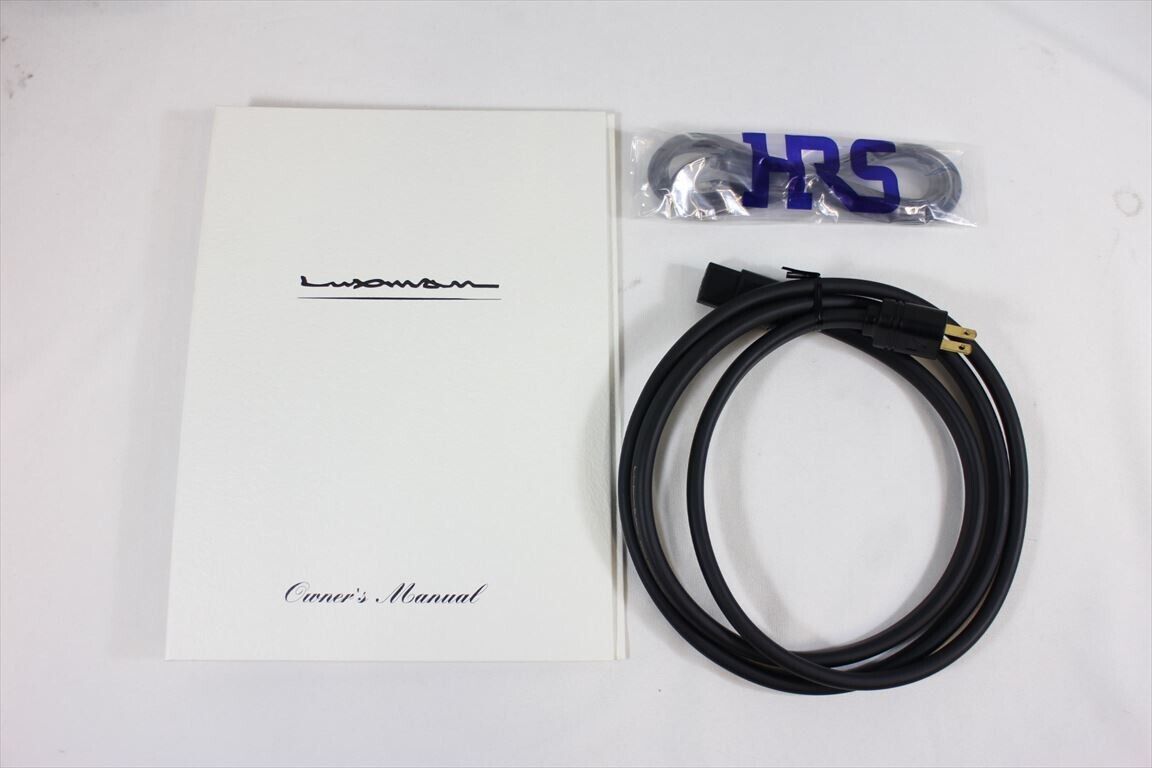

accessories
Original box, instruction manual, power cable (JPA-15000), remote cable
