A 25W x 2ch (6Ω)/20W x 2ch (4Ω, 8Ω) stereo power amplifier equipped with Slovak JJ's "KT88" triode push-pull configuration and an OY type output transformer in an aluminum die-cast case that reproduces the original shape. All amplification circuits are composed of vacuum tubes (2 ECC83, 2 ECC82, 4 KT88). By using KT88 as the output tube, it is characterized by a powerful and thick tone. Selected vacuum tubes are used in a push-pull configuration.
■Continuous effective output: 25W+25W (6Ω), 20W+20W (4Ω, 8Ω)
■Input sensitivity: 790mV/25W (6Ω)
■Input impedance: 100kΩ
■Total harmonic distortion: 0.15% (1kHz/6Ω/1W), 0.5% (20Hz-20kHz/6Ω/1W)
■Frequency response: 20Hz-20kHz (+0, -1.0dB), 10Hz-65kHz (+0, -3.0dB)
■S/N ratio (IHF-A): 105dB
■Input: Line: 1 direct, 1 variable
■Output: 1 large speaker terminal
■Power consumption: 280W (Electrical Appliance and Material Safety Act), 150W (no signal)

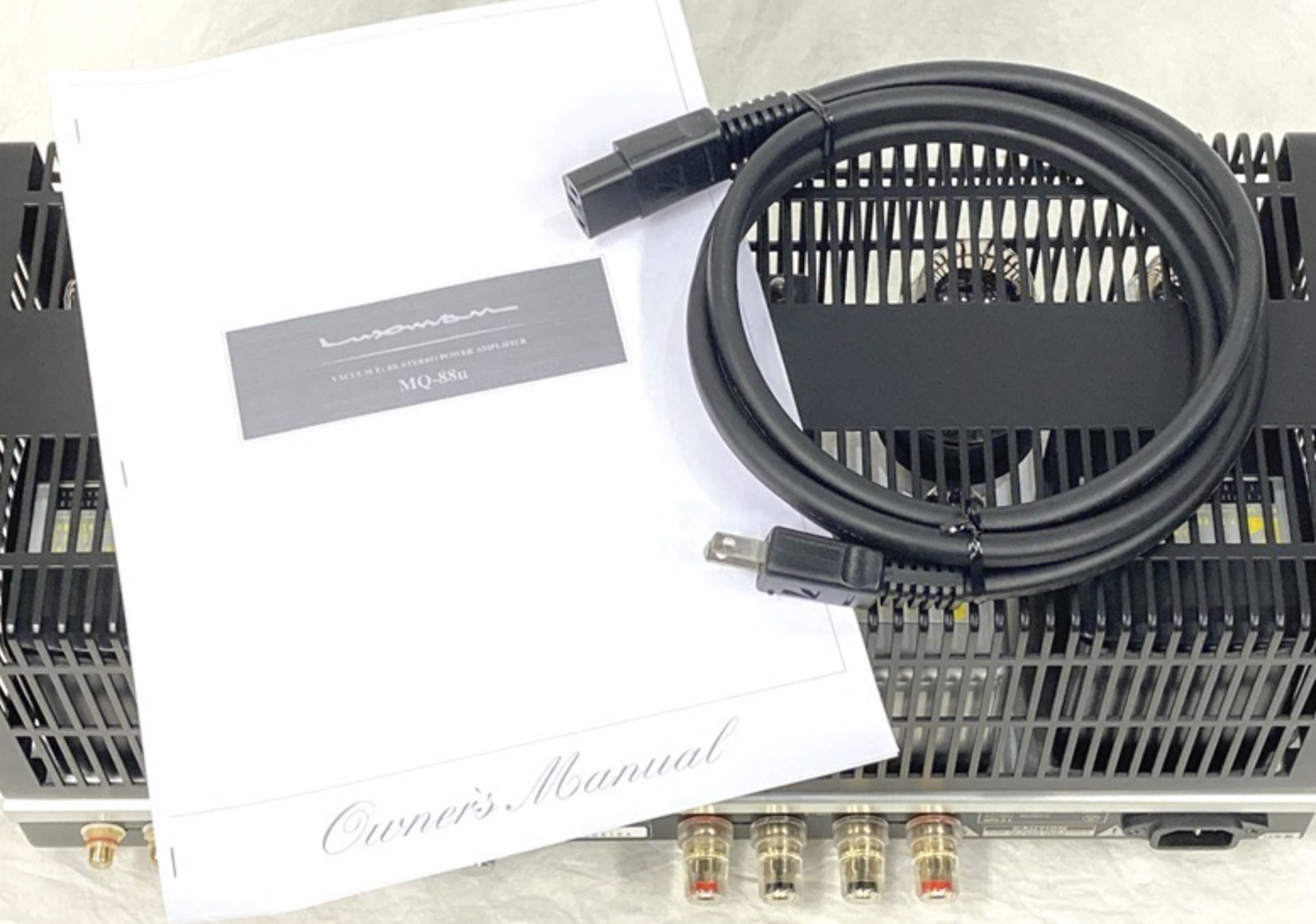

■Accessories: Power cable (JPA-10000)
Size W (width): 440 mmH(height): 185 mmD(depth): 185 mm
Weight 15.8 kg
