■ Many new adoptions and new functions

-A dark brown color is used for the chassis base and bonnet to enhance compatibility with the wooden box series.

-All the vacuum tubes used (KT-88 x 4, ECC83S x 2, ECC82 x 2) are unified to the well-established JJ (Slovakia) product.

-Adopts a 4, 8, 16 Ω independent speaker terminal that enhances the compatibility of playback with a sense of power with little distortion.

-Nichicon's high-voltage metallized polypropylene film capacitors are used for the coupling capacitors to achieve a relaxed and natural tone.

■ Traditional tube amp tone and modern drive performance inherited from MQ-88u

-Rated output of 25W + 25W (at 4/8 / 16Ω load) that enables powerful music playback in various speaker environments.

-For the output tube, JJ (Slovak) KT88, which has a good reputation for its powerful and thick tone, is selected and adopted in a push-pull configuration.

・ The first stage amplifier is parallelized and directly connected to the driver stage with high S / N and low impedance transmission.

-Adopts a proven Murad type circuit (driver stage) and a triode connection that brings out the original sound quality of the vacuum tube.

-Adopts an OY15 type output transformer with an aluminum die-cast case reproduced in the original shape.

-Equipped with an EI type large-capacity power transformer that realizes tenacious sound quality and a large original block capacitor that realizes stable power supply.

-Adopts an OY15 type output transformer with an aluminum die-cast case reproduced in the original shape.

-A net-shaped bonnet cover that protects vacuum tubes and other large parts is included as standard.

-Includes the Luxman genuine power cable JPA-10000, which has an OFC extra-thick wire non-twist structure.

● Product specifications

Rated effective output 25W + 25W (4Ω / 8Ω / 16Ω)

Input direct 1 system, variable 1 system

Output speaker terminal 1 system (4, 8, 16Ω independent)

Power consumption 50W (Electrical Appliance and Material Safety Law), 140W (when there is no signal)

External dimensions 440 (W) x 184 (H) x 230 (D) mm

Weight 16.1kg

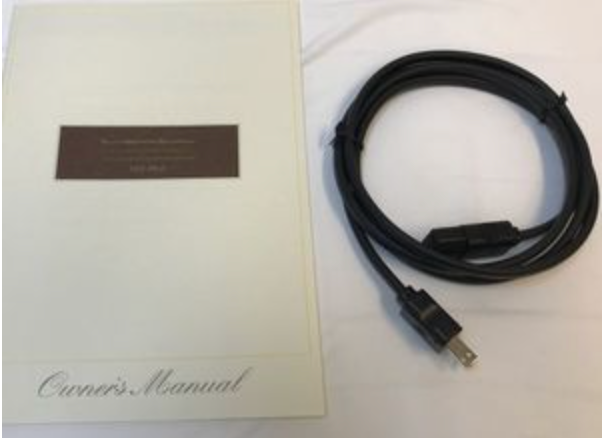

Accessories: Instruction manual, power cord,
