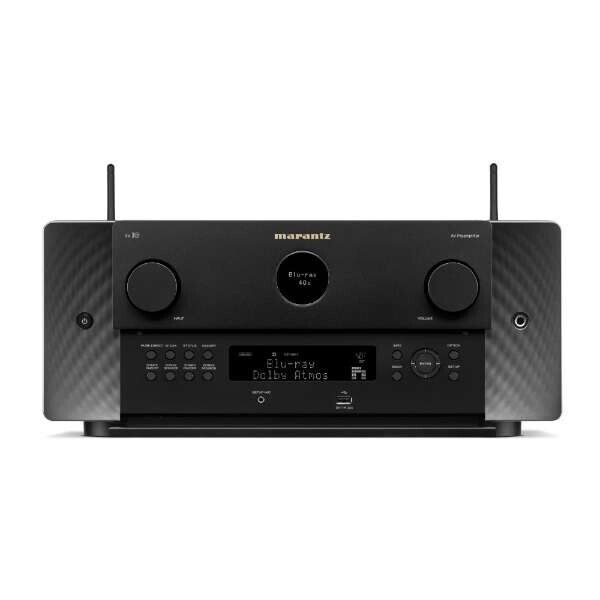

Marantz AV10 Reference 15.4 Channel Home Theater Pre-Amplifier/Processor 100V

●Number of processing channels: 15.4ch

●Input sensitivity

・Balance: 400mV

・Unbalance: 200mV

●S/N ratio: 105dB (IHF-A, in direct mode)

●Frequency characteristics: 10 - 100 kHz (+1, -3dB, in direct mode)

●Distortion rate: 0.005% (20Hz - 20kHz, in direct mode)

●Rated output

・Balance: 2.4V

・Unbalance: 1.2V

●HDMI terminal: Input x 7 (8K compatible input x 7), output x 3 (8K compatible output x 2)

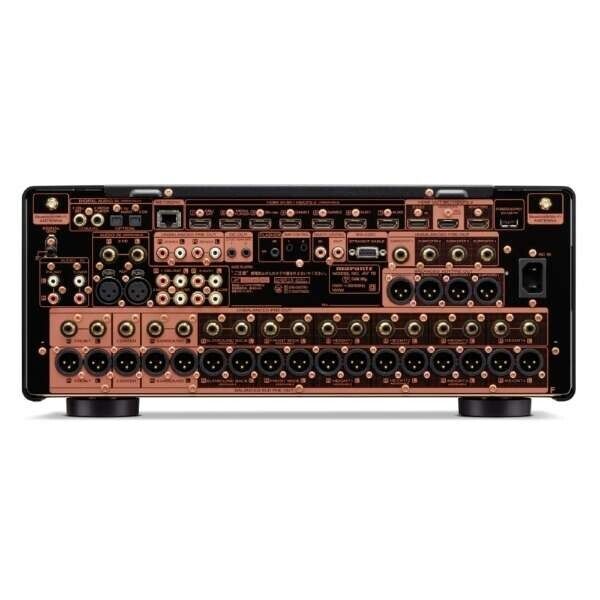

Audio input terminals: Balanced (XLR) x 1, Unbalanced (RCA) x 6, Phono (MM) x 1, Optical digital x 2, Coaxial digital x 2

●Audio output terminals: 17.4ch balanced (XLR) pre-out x 1, 17.4ch unbalanced (RCA) pre-out x 1, zone pre-out x 2, headphones x 1

●Other terminals: Network x 1, USB-A (front) x 1, USB-A (rear, power supply only 5V/1.5 A) x 1, setup microphone input x 1, Bluetooth/Wi-Fi antenna input x 2, RS -232C x 1, DC trigger output x 2, flasher input x 1, Marantz remote bus (RC-5) input/output x 1, amplifier control x 2

●Wireless LAN

・Network type: IEEE 802.11 a/b/g/n/ac compliant (Wi-Fi compliant)

・Frequency: 2.4GHz/5GHz

●Bluetooth

・Version: 5.0

●Supported profiles: Reception A2DP 1.2/AVRCP 1.5, Transmission A2DP 1.2

●Supported codec: SBC

●Transmission output/communication distance: Class 1/approx. 30m (line-of-sight distance)

●Power supply: AC 100V, 50/60Hz

●Power consumption: 100W

●Standby power: 0.2W (normal standby)/0.5W (CEC standby)

●Maximum external dimensions

- When the antenna is laid down: W442 x H189 x D503mm

●When the antenna is erected: W442 x H252 x D503mm

●Mass: 16.8kg

●Accessories: Easy start guide, remote control (RC047SR), AAA batteries x 2, setup microphone, microphone stand, cable label, Bluetooth/Wi-Fi antenna x 2, power cord
