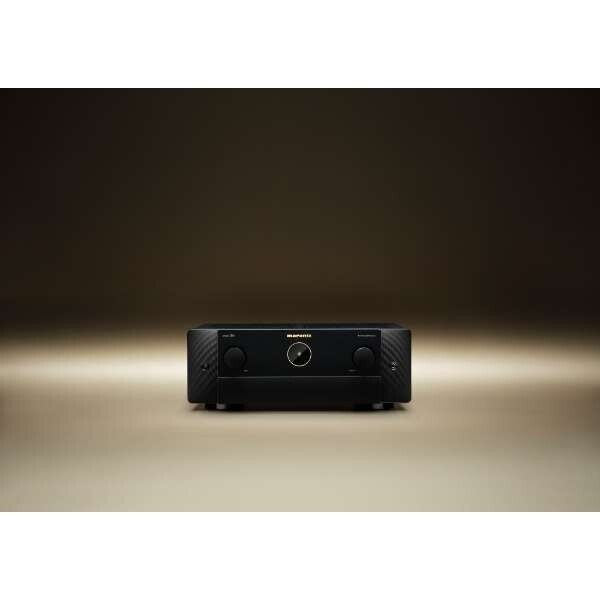

Marantz Cinema 50 9.4 Ch 8K Home Theater Receiver with Dolby Atmos DTS:X HEOS

〇 Number of installed power amplifiers: 9 channels

〇 Rated output 110 W + 110 W (8 Ω, 20 Hz – 20 kHz, THD 0.08 %)

〇 Maximum practical output 220 W (6 Ω, 1 kHz, THD 10%, 1 ch drive, JEITA)

〇 Applicable impedance 4 – 16Ω

〇 S/N ratio 100 dB (IHF-A, in direct mode)

〇 Frequency response 10 – 100 kHz (+1, -3 dB, in direct mode)

〇 HDMI terminal Input x 6 (8K compatible input x 6), Output x 3 (8K compatible output x 2)

〇 Audio input terminal Analog x 5, Phono (MM) x 1, Optical digital x 2, Coaxial digital x 2

〇 Audio output terminal 11.4ch pre-out x 1, zone pre-out x 1, headphones x 1

〇 Other terminals

・Network x 1

・USB (front) x 1

・Setup microphone input x 1

・Bluetooth/Wi-Fi antenna input x 2

・FM antenna input x 1

・AM antenna input x 1

・RS-232C x 1, DC trigger output x 1

・Flasher input x 1

・ Marantz remote bus (RC-5) input/output x 1

〇Tuner reception frequency band FM: 76.0 – 95.0 MHz, AM: 522 – 1629 kHz

〇Wireless LAN

- Network type IEEE 802.11 a/b/g/n/ac compliant (Wi-Fi® compliant)

・Frequency 2.4 GHz / 5 GHz

〇 Bluetooth

・Version 4.2

- Compatible profiles Reception: A2DP 1.2 / AVRCP 1.5, Transmission: A2DP 1.2

・Supported codec SBC

・ Transmission output / Communication distance Class 1 / Approx. 30 m (line-of-sight distance)

〇 Power supply AC 100V, 50/60Hz

〇 Power consumption 680W

〇 Standby power 0.2 W (normal standby) / 0.5 W (CEC standby)

〇 Maximum external dimensions

W442 x H165 x D404 mm (when antenna is laid down)

W442 x H235 x D404 mm (with antenna up)

〇 Mass 13.5 kg

〇 Accessories Easy start guide, remote control (RC049SR), AAA batteries x 2, setup microphone, microphone stand, cable label, FM indoor antenna, AM loop antenna, Bluetooth / Wi-Fi antenna x 2, power cord
