Marantz Model 40n FB Integrated Stereo Amplifier Black Streaming 100V NEW

A network-compatible stereo Hi-Fi amplifier that can also be connected to a TV via HDMI ARC.

■Key Features

New generation Marantz design

A new housing created with a modern interpretation while inheriting traditional design elements.

Variable gain preamplifier with HDAM®+HDAM®-SA2

45% noise reduction (compared to PM8006) increases the amount of detailed information and creates highly transparent spatial expressions.

Fully discrete current feedback parallel push-pull power amplifier

Overwhelming speaker driving power is achieved with an instantaneous current supply capacity of up to 68A.

Large capacity and high quality power supply circuit

The largest toroidal transformer in its class and custom capacitors provide high speed and ample power supply.

Enjoy high-quality TV audio

Supports audio input via HDMI ARC (linear PCM, 2ch). Also compatible with TV remote control

Freely play various digital contents

Network, music streaming service, AirPlay2, Bluetooth®, USB memory/HDD

■Audio characteristics

Rated output 100W+100W (4Ω, 20Hz–20kHz) 70W+70W (8Ω, 20Hz–20kHz)

Total harmonic distortion 0.02% (20Hz–20kHz, both channels driven simultaneously, 8Ω)

Frequency characteristics 5Hz-100kHz (±3dB)

Damping factor 100 or more (8Ω, 20Hz–20kHz)

Input sensitivity/input impedance PHONO (MM) 1.6mV/47kΩ,

CD/LINE/RECORDER220mV/16kΩ, POWERAMPIN1.5V/15kΩ

Output voltage SUB WOOFER OUT 220mV

PHONO maximum allowable input (MM) 80mV (1kHz)

RIAA deviation ±0.5dB (20Hz-20kHz)

S/N ratio (IHF A network, 8Ω) PHONO (MM) 87dB (5mV input),

CD/LINE/RECORDER113dB (rated output)

POWERAMPIN125dB (rated output)

Tone control BASS (50Hz) ±10dB, TREBLE (15kHz) ±10dB

■Input/output terminal

Audio input terminal Unbalanced x 3, PHONO (MM) x 1, POWERAMPIN x 1, HDMIARC x 1,

Coaxial digital x 1, optical digital x 1, USB-A x 1

Audio output terminals: subwoofer pre-out x 1, REC out x 1, headphones x 1

Other input/output terminals Network x 1, Bluetooth/Wi-Fi antenna input x 2, Marantz Motorbus (RC-5) input/output x 1

■General

Power supply AC100V, 50/60Hz

Power consumption 220W

Standby power 0.3W (normal standby)/2W (network standby)

Maximum external dimensions W443xH130xD432mm (when the rod antenna is laid down)

W443xH194xD432mm (with rod antenna up)

Mass 16.7kg

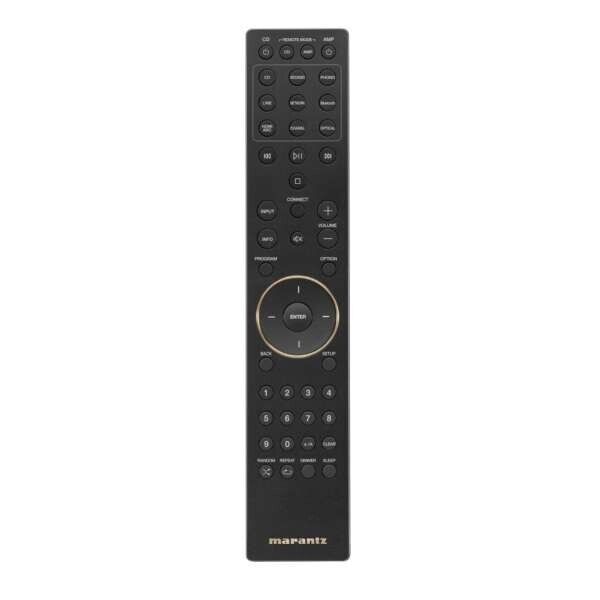

Accessories Easy start guide, instruction manual, warranty, remote control (RC005PM),

Short plug x 2 (PHONO), AAA batteries x 2, Bluetooth/Wi-Fi antenna x 2, power cord
